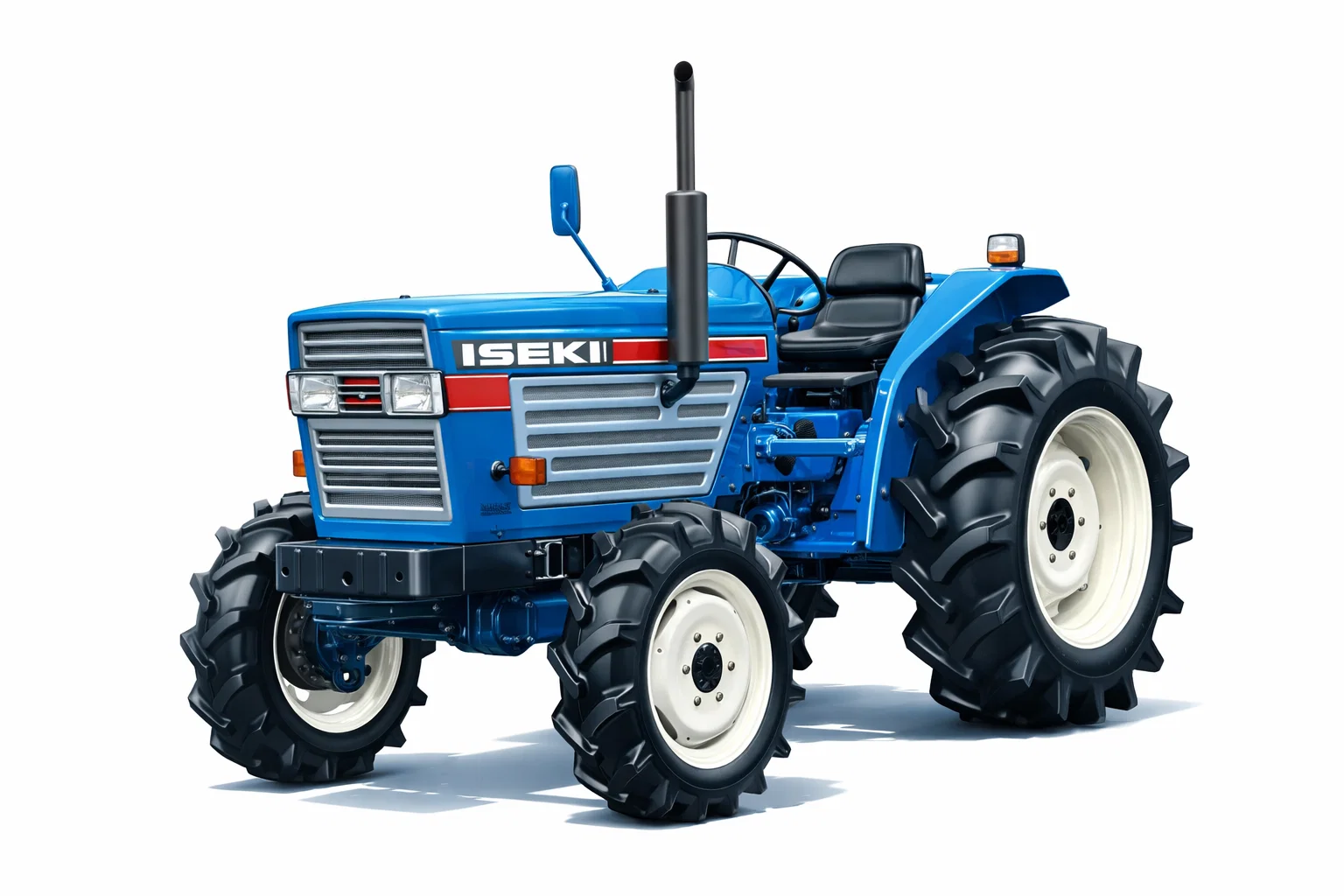

Overview of Iseki TL3200
The Iseki TL3200 belongs to the trusted TL Series. It offers higher output than the TL2900 while keeping a compact body. As a result, it suits small to medium farms, mixed agriculture, and general field work.
| Item | Details |
|---|---|
| Model | Iseki TL3200 |
| Production Years | 1980 – 1985 |
| Series | TL Series |
| Tractor Type | Compact Utility Tractor |
| Manufacturer | Iseki |
| Drive Options | 2WD / 4WD |
| Operator Station | Open station (Four-post ROPS available) |
Variants
The TL3200 series includes both standard and four-wheel-drive options. Consequently, buyers can select the right setup for their terrain.
| Variant | Description |
|---|---|
| TL3200 | 2WD |
| TL3200F | 4WD |
Engine Specifications
The TL3200 uses a proven Isuzu diesel engine. Thanks to its four-cylinder design, it delivers smooth operation and steady torque for daily farm tasks.
| Item | Specification |
|---|---|
| Engine Manufacturer | Isuzu |
| Engine Type | Diesel |
| Displacement | 1.5 L |
| Cylinders | 4-cylinder |
| Engine Power | 31.6 hp |
| Power Output | 23.6 kW |
| Fuel Tank Capacity | 10.6 gal / 40.1 L |
Transmission
The 18-speed transmission provides fine speed control. Therefore, operators can adjust easily for tilling, hauling, or PTO-driven work.
| Item | Details |
|---|---|
| Transmission Type | Gear |
| Number of Speeds | 18-speed |
Mechanical Features
The TL3200 keeps a simple and durable mechanical layout. In addition, optional four-wheel drive improves traction on soft or uneven ground.
| Item | Specification |
|---|---|
| Drive System | Two- or Four-wheel drive |
| ROPS | Four-post ROPS available |
| Operator Platform | Open operator station |
Tractor Hitch
The rear hitch follows Japanese standards, which makes it compatible with many common implements.
| Item | Specification |
|---|---|
| Rear Hitch Type | JIS Category 1 |
Power Take-Off (PTO)
The PTO system supports multiple operating speeds. As a result, the tractor works well with rotary tillers, mowers, and other attachments.
| Item | Specification |
|---|---|
| Rear PTO Type | 540 rpm (1.375) |
| Engine RPM for PTO | 593 / 722 / 945 / 1540 @ 2600 rpm |
Dimensions and Weight
With a balanced size and weight, the TL3200 offers good stability while staying easy to maneuver.
| Item | Specification |
|---|---|
| Wheelbase | 70.9 in / 180 cm |
| Weight | 2,910 – 3,175 lbs |
Tires
| Position | Tire Size |
|---|---|
| Front Tire | 6.00-16 |
| Rear Tire (2WD) | 13.6-26 |
Why the Iseki TL3200 Is Still in Demand
The Iseki TL3200 combines strong Japanese build quality, a reliable Isuzu engine, and simple operation. Although it is an older model, many farmers still choose it for its durability and ease of repair.
Key reasons buyers choose this model:
-
31.6 hp output with compact dimensions
-
Reliable 1.5L Isuzu diesel engine
-
Flexible 18-speed transmission
-
High demand as a Used Iseki Tractor
