New Holland T9.580 Tractor – Specifications & Overview
Overview
The New Holland T9.580 is a next-generation high-horsepower articulated 4WD tractor designed for the most demanding large-scale farming operations. Introduced from 2024 onward, it sits in the latest T9 Series, offering increased power, advanced driveline options, and improved operator comfort.
Built in Fargo, North Dakota, USA, by New Holland (a part of CNH), the T9.580 is engineered for heavy tillage, large air seeders, high-capacity planters, and PTO-driven implements. It combines a proven FPT 12.9L engine with flexible transmission choices and massive hydraulic capacity.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine model | FPT Cursor 13 |
| Type | 6-cylinder turbocharged diesel |
| Displacement | 12.9 L |
| Emissions | Tier 4 Final / Stage V |
| Gross engine power | 517.8 hp (386.1 kW) |
| Maximum engine power | 570.1 hp (425.1 kW) |
| PTO power (claimed) | 508.9 hp (379.5 kW) |
| Fuel tank capacity | 310 gal (1,173.4 L) |
| DEF tank capacity | 42 gal (159.0 L) |
Transmission
| Option | Details |
|---|---|
| Full PowerShift | 17-speed full powershift |
| CVT | Continuously Variable Transmission (Auto Command™) |
| Drive system | Four-wheel drive (4WD) |
| Steering | Articulated power steering |
| Differential lock | Automatic front & rear |
| Final drives | Planetary |
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic type | Closed-center |
| Standard pump flow | 42 gpm (159.0 L/min) |
| Optional pump flows | 57 / 98 / 113 gpm |
| Max optional flow | 113 gpm (427.7 L/min) |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category IVN / III |
| Rear lift capacity (24″/610 mm) | 21,903 lbs (9,935 kg) |
| Drawbar | Category 4 (Cat 5 optional) |
| Rear PTO | Independent |
| PTO type | 1000 rpm (1.75 in) |
| Rated PTO speed | 1000 rpm @ 1811 engine rpm |
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 148 in (375 cm) |
| Operating weight | 40,800 lbs (18,506 kg) |
| Configuration | Articulated 4WD tractor |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 240 amps (330 amps optional) |
| Batteries | 3 |
| Battery rating | 12 V / 950 CCA |
Cab & Operator Comfort
-
Standard cab with air-conditioning
-
Quiet, spacious operator environment
-
Designed for long working hours
-
Compatible with modern precision farming systems

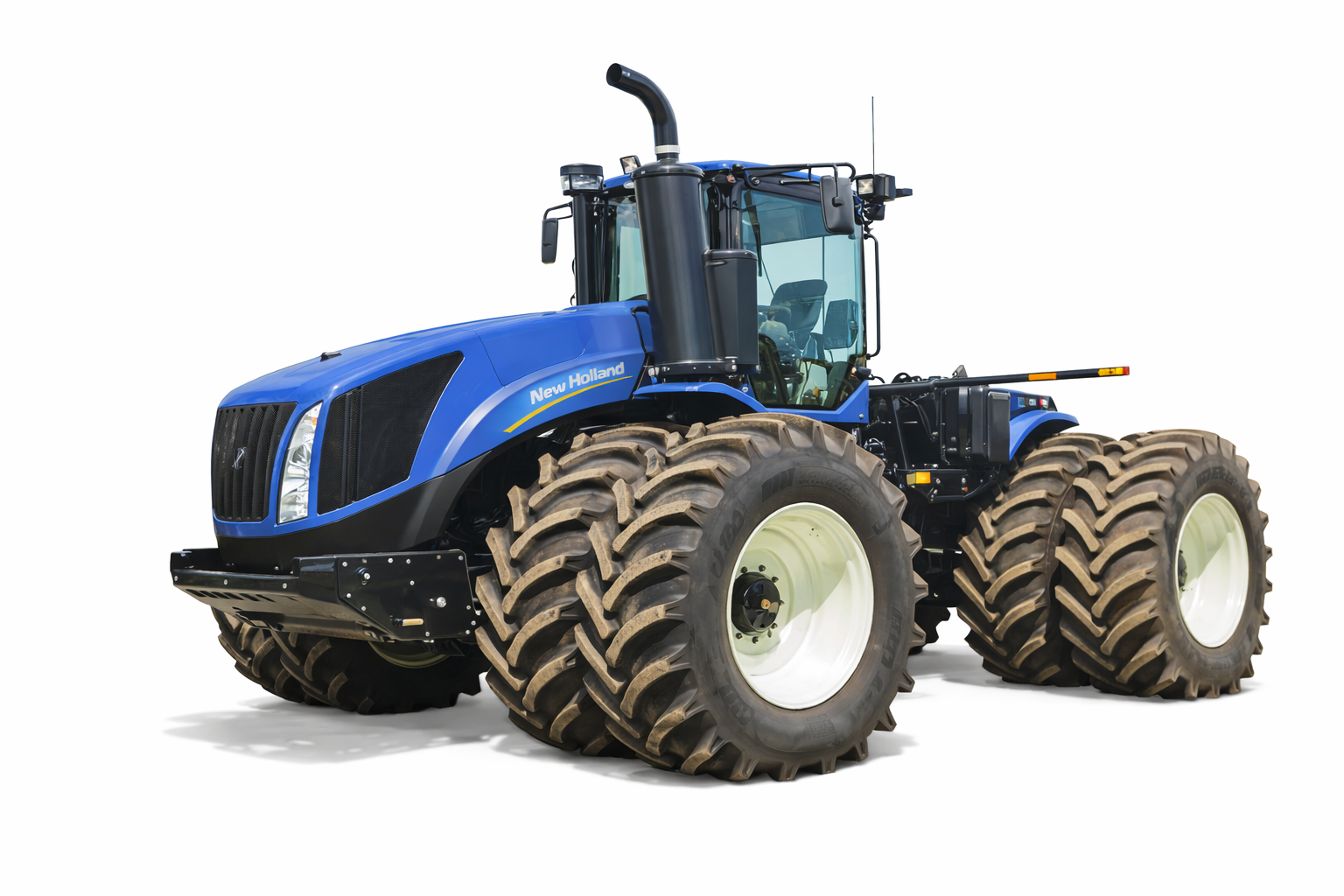

Photos
Why Choose the New Holland T9.580?
-
570 hp-class maximum power for extreme workloads
-
Proven FPT 12.9L engine with excellent torque
-
Choice of PowerShift or CVT transmission
-
Massive hydraulic capacity for modern implements
-
Built for large farms and professional contractors worldwide
