New Holland T9.560 Tractor – Specifications & Overview
Overview
The New Holland T9.560 is a high-horsepower 4WD articulated tractor developed for large-scale, heavy-duty agricultural operations. Produced between 2011 and 2014, it sits within the early generation of the New Holland T9 Series, a lineup well known for durability, pulling power, and reliability in demanding field conditions.
Built in Fargo, North Dakota, USA, the T9.560 is designed for intensive applications such as deep tillage, large air seeders, and heavy drawbar work. Even today, it remains a popular choice in global export markets thanks to its robust mechanical design and proven FPT 12.9L diesel engine.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine model | FPT Cursor 13 |
| Type | 6-cylinder turbocharged diesel |
| Displacement | 12.9 L |
| Rated engine power | 507 hp (378.1 kW) |
| Fuel tank capacity | 325 gal (1,230.1 L) |
| DEF tank capacity | 46 gal (174.1 L) |
Transmission
| Item | Specification |
|---|---|
| Transmission type | 16-speed Full PowerShift |
| Drive system | Four-wheel drive (4WD) |
| Brakes | Hydraulic wet disc |
| Steering | Articulated |
| Cab | Standard factory cab |
Power & Performance
| Test / Rating | Output |
|---|---|
| Engine power | 507 hp (378.1 kW) |
| Drawbar power (tested) | 392.34 hp (292.6 kW) |
| PTO power (tested) | 499.16 hp (372.2 kW) |
The T9.560 delivers strong, consistent torque under load, making it well suited for continuous heavy draft operations.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic type | Closed-center load sensing |
| System pressure | 2,000 psi (137.9 bar) |
| Rear remote valves | 4 to 8 |
| Standard pump flow | 45 gpm (170.3 L/min) |
| Optional pump flow | 57 gpm (215.7 L/min) |
| MegaFlow options | 98 gpm / 113 gpm |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category 4N / 3 |
| Rear lift capacity (24″/610 mm) | 20,000 lbs (9,072 kg) |
| Rear PTO | Optional |
| PTO type | 1000 rpm (1-3/4 in) |
Dimensions
| Item | Specification |
|---|---|
| Wheelbase | 148 in (375 cm) |
| Configuration | Articulated 4WD tractor |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 200 amps |
| Batteries | 2 |
| Battery rating | 12 V / 1000 CCA |
Cab & Operator Environment
-
Standard enclosed cab
-
Designed for long operating hours
-
Simple and robust controls
-
Excellent visibility for large implements
Photos

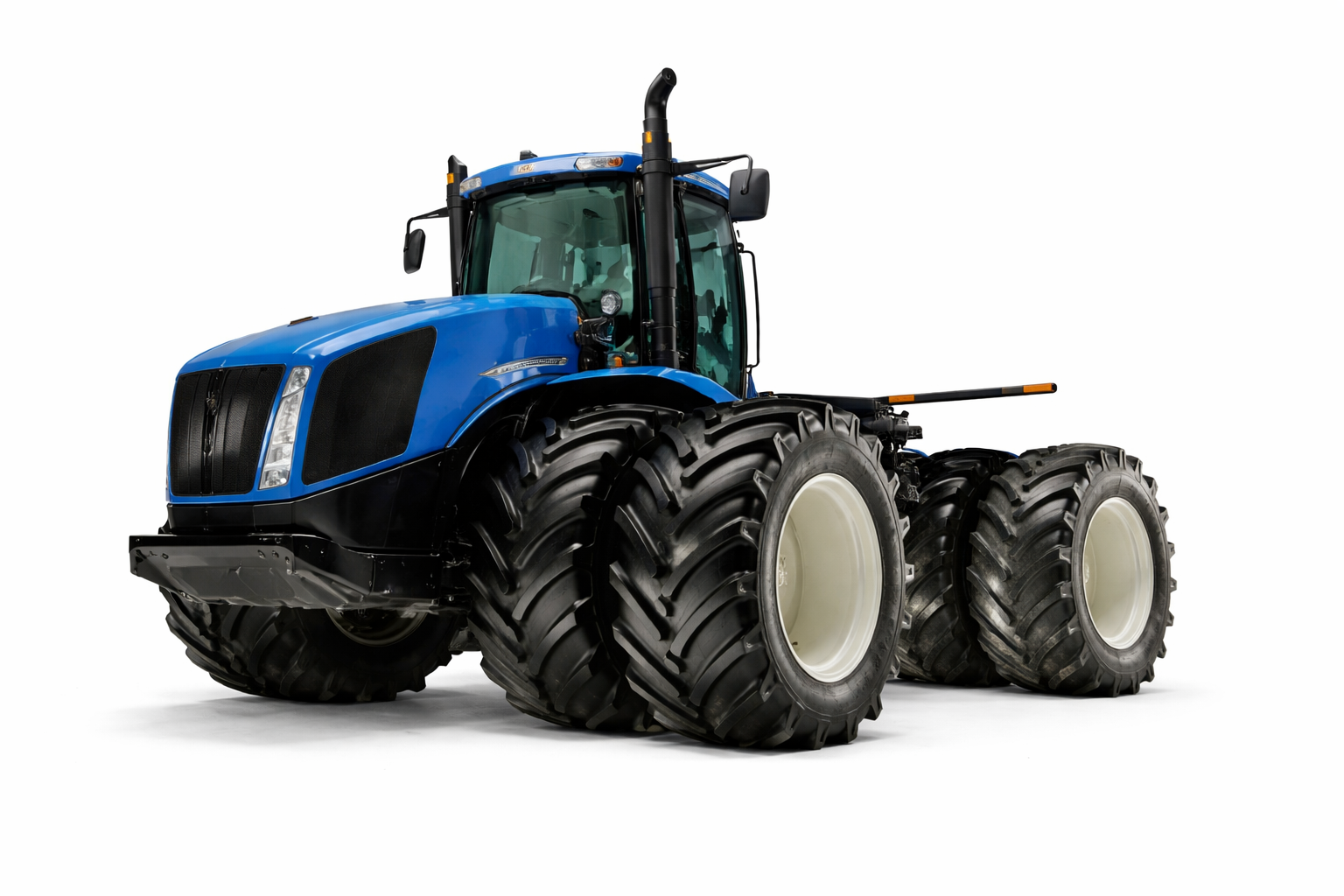

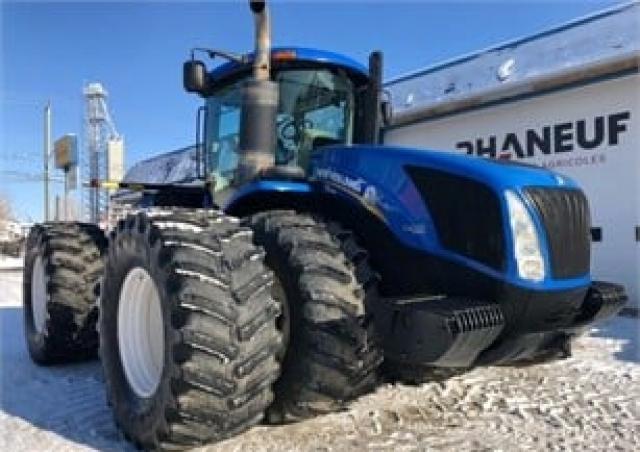

Note: Images shown represent the New Holland T9 Series. Exact T9.560 photos may be limited due to production period.
Why Choose the New Holland T9.560?
-
Proven 500 hp-class performance
-
Durable FPT 12.9L diesel engine
-
Strong drawbar and PTO test results
-
Simple, robust mechanical design
-
Well suited for export and long-term use
