New Holland T9.530 Tractor – Specifications & Overview
Overview
The New Holland T9.530 is a high-horsepower articulated 4WD tractor engineered for large-scale, high-demand farming operations. Produced from 2014 to 2023 as part of the proven T9 Series, this model is designed to handle heavy tillage, large planters, and high-capacity implements with ease.
Manufactured in Fargo, North Dakota, USA, the T9.530 combines robust construction, advanced hydraulics, and a powerful FPT engine. It is widely recognized for its durability, field efficiency, and compatibility with modern precision farming systems.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine model | FPT Cursor 13 |
| Type | 6-cylinder turbocharged diesel |
| Displacement | 12.9 L |
| Emissions | Tier 4 Final |
| Gross engine power | 470 hp (350.5 kW) |
| Maximum engine power | 517 hp (385.5 kW) |
| PTO power (claimed) | 405 hp (302.0 kW) |
| Fuel tank capacity | 325 gal (1,230.1 L) |
| DEF tank capacity | 42 gal (159.0 L) |
Transmission
| Item | Specification |
|---|---|
| Transmission type | 17-speed Full PowerShift |
| Drive system | Four-wheel drive (4WD) |
| Steering | Hydrostatic articulated steering |
| Brakes | Wet disc |
| Trailer brakes | Hydraulic (optional) |
Power & Performance
| Test / Rating | Output |
|---|---|
| Drawbar power (tested) | 387.67 hp (289.1 kW) |
| PTO power (tested) | 468.35 hp (349.2 kW) |
The T9.530 delivers consistent torque and excellent traction, making it ideal for continuous heavy-duty field work.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic type | Closed-center load sensing (CCLS) |
| Remote valves | 4 to 8 |
| Standard pump flow | 42 gpm (159.0 L/min) |
| High-flow pump | 57 gpm (215.7 L/min) |
| MegaFlow option | 113 gpm (427.7 L/min) |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category IVN (opt) / IIIN (opt) |
| Hitch control | Position control |
| Rear lift capacity (24″/610 mm) | 20,000 lbs (9,072 kg) |
| Rear arms | Adjustable link ends |
| Drawbar | Category 4 |
| Rear PTO | Independent |
| PTO speed | 1000 rpm (1.75 in) |
| Rated PTO rpm | 1000 @ 1998 rpm (early) / 1811 rpm (late) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 148 in (375 cm) |
| Operating weight | 36,048 lbs (16,351 kg) |
| Front tires | 710/70 |
| Rear tires | 710/70 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 200 amps |
| Batteries | 2 |
| Battery rating | 12 V / 1000 CCA |
Cab & Technology
-
Standard cab with air-conditioning
-
Optional Comfort Ride™ cab suspension
-
ISOBUS compliant
-
IntelliView™ IV display
-
IntelliSteer™ auto-guidance ready
-
Designed for long operating hours with reduced operator fatigue
Serial Number Guide
| Year | Serial Prefix |
|---|---|
| 2014 | ZDFxxxxxx |
| 2015 | ZEFxxxxxx |
| 2016 | ZFFxxxxxx |
| 2017 | ZGFxxxxxx |
| 2018 | ZHFxxxxxx |
| 2019 | ZJFxxxxxx |
| 2020 | ZKFxxxxxx |
| 2021 | ZLFxxxxxx |
Photos

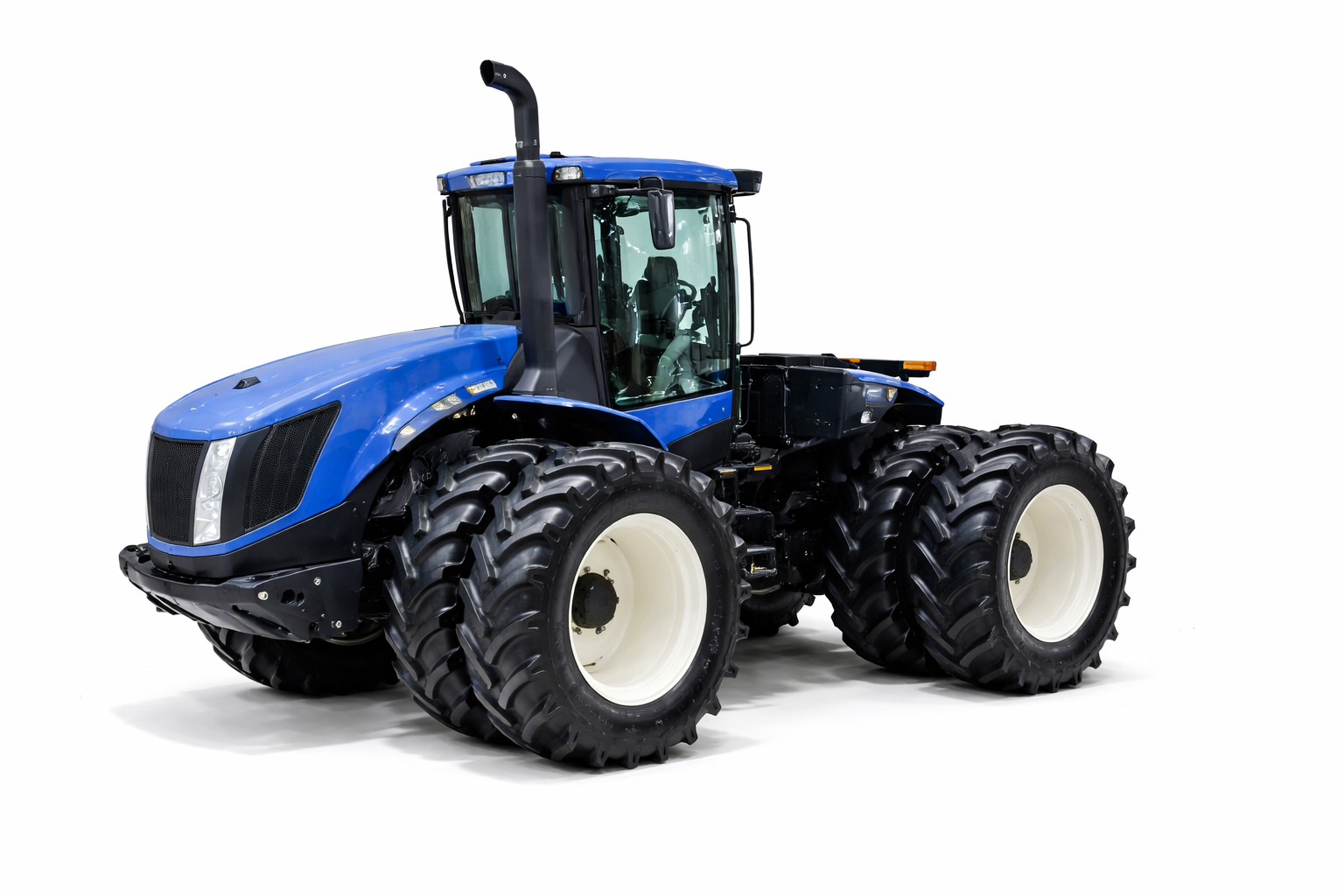

Note: Official photos of the exact T9.530 model are limited. Images shown represent the New Holland T9 Series.
Why Choose the New Holland T9.530?
-
Proven 500 hp class articulated tractor
-
Reliable FPT 12.9L engine with strong torque characteristics
-
Flexible hydraulic options for demanding implements
-
Advanced precision farming compatibility
-
Built for large farms and contractors worldwide
