New Holland T9.520 Tractor – Specifications & Overview
Overview
The New Holland T9.520 is a next-generation, ultra-high-horsepower articulated tractor designed for the most demanding large-scale farming operations. As part of the latest T9 Series (2024– ), this 4WD tractor delivers exceptional pulling power, advanced hydraulics, and operator comfort, making it ideal for heavy tillage, large planters, and high-capacity implements.
Built in Fargo, North Dakota (USA), the T9.520 combines proven New Holland engineering with the latest emission-compliant FPT engine technology. For professional farmers and contractors worldwide, it represents strength, reliability, and productivity at scale.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine model | FPT Cursor 13 |
| Type | 6-cylinder turbocharged diesel |
| Displacement | 12.9 L |
| Emissions | Tier 4 Final / Stage V (with DEF) |
| Gross engine power | 468.5 hp (349.4 kW) |
| Maximum engine power | 514.9 hp (384.0 kW) |
| PTO power (claimed) | 455.7 hp (339.8 kW) |
| Rated PTO speed | 1000 rpm @ 1811 engine rpm |
| Fuel tank capacity | 310 gal (1173.4 L) |
| DEF tank capacity | 42 gal (159.0 L) |
Transmission
| Option | Details |
|---|---|
| Full PowerShift | 17-speed full powershift |
| CVT (Auto Command™) | Continuously Variable Transmission |
| Drive system | Four-wheel drive (4WD) |
| Steering | Articulated power steering |
| Differential lock | Automatic front & rear |
| Final drives | Planetary |
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic type | Closed-center, pressure-flow compensated |
| Standard pump flow | 42 gpm (159.0 L/min) |
| Optional pump flows | 57 gpm / 98 gpm / 113 gpm |
| Max optional flow | 113 gpm (427.7 L/min) |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category IVN / III |
| Rear lift capacity (24″/610 mm) | 21,903 lbs (9,935 kg) |
| Drawbar | Category 4 (Cat 5 optional) |
| PTO type | Independent rear PTO |
| PTO size | 1000 rpm (1.75 in) |
Dimensions & Weight
| Item | Specification |
|---|---|
| Wheelbase | 148 in (375 cm) |
| Operating weight | 40,800 lbs (18,506 kg) |
| Configuration | Articulated 4WD tractor |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 240 amps (330 amps optional) |
| Batteries | 3 |
| Battery rating | 12 V / 950 CCA |
Cab & Operator Comfort
-
Standard factory cab with air-conditioning
-
Low-noise, high-visibility design
-
Advanced control layout for long working hours
-
Designed for precision farming and modern guidance systems

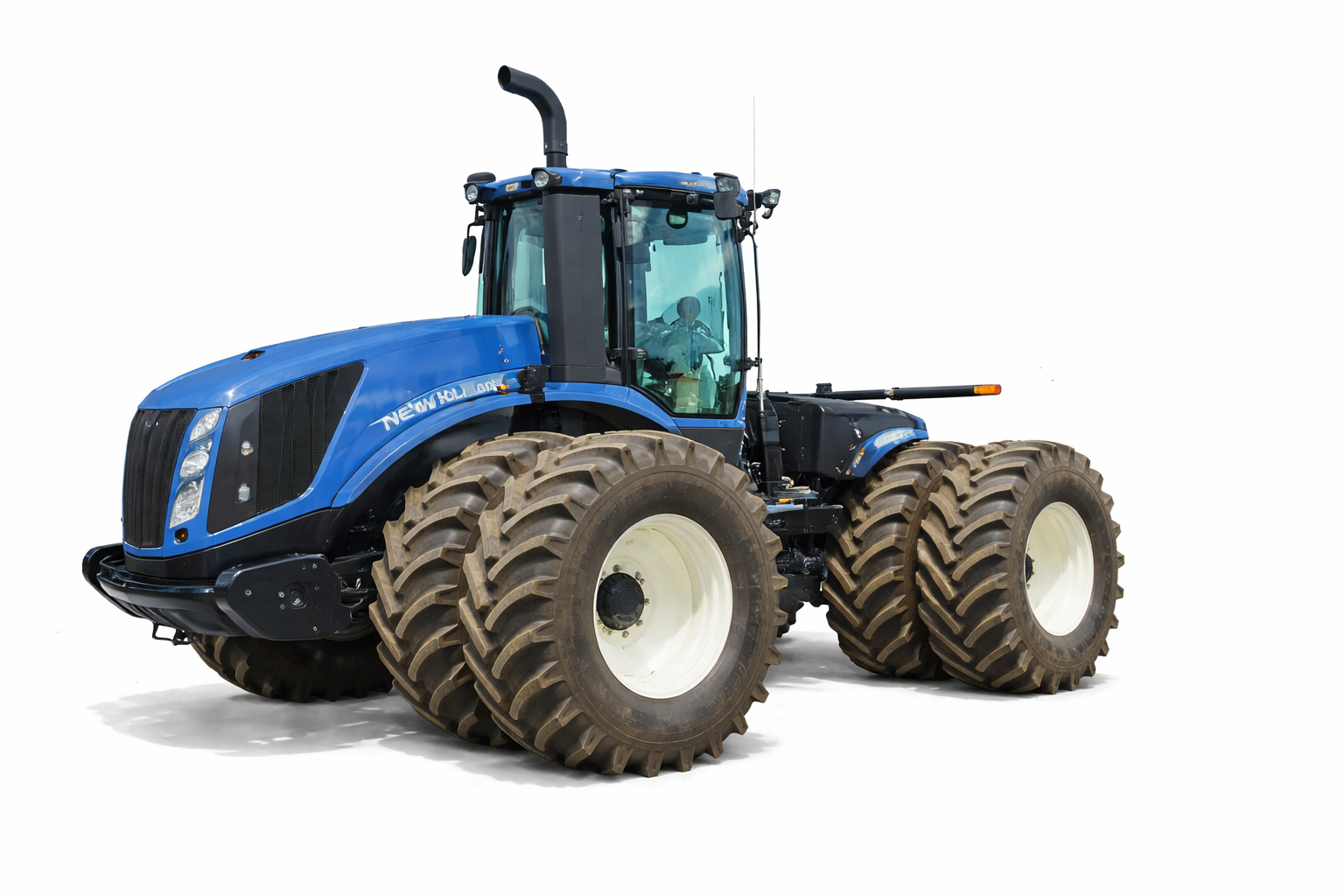

Photos
Note: Official photos of the exact T9.520 model may be limited as it is a newly released model. Images shown represent the New Holland T9 Series.
Why Choose the New Holland T9.520?
-
Over 500 hp class performance for large implements
-
Proven FPT 12.9L engine with excellent torque and durability
-
Flexible transmission options for different farming styles
-
Massive hydraulic capacity for modern, high-demand implements
-
Built for reliability in large-scale global farming operations
