New Holland T9.565 Tractor – Specifications & Overview
Overview
The New Holland T9.565 is a powerful 500 hp-class articulated 4WD tractor designed for large-scale, high-demand farming operations. Produced from 2014 to 2023, it belongs to the well-established T9 Series, known worldwide for exceptional drawbar performance, durability, and compatibility with modern precision agriculture systems.
Built in Fargo, North Dakota, USA, the T9.565 is engineered for heavy tillage, large air seeders, and demanding PTO applications. Thanks to its robust FPT 12.9L engine and advanced hydraulics, it has become a popular choice in both North American farms and global export markets.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine model | FPT Cursor 13 |
| Type | 6-cylinder turbocharged diesel |
| Displacement | 12.9 L |
| Emissions | Tier 4 Final |
| Gross engine power | 500 hp (372.9 kW) |
| Maximum engine power | 550 hp (410.1 kW) |
| PTO power (claimed) | 435 hp (324.4 kW) |
| Fuel tank capacity | 325 gal (1,230.1 L) |
| DEF tank capacity | 42 gal (159.0 L) |
Transmission
| Item | Specification |
|---|---|
| Transmission type | 17-speed Full PowerShift |
| Drive system | Four-wheel drive (4WD) |
| Steering | Hydrostatic power articulated |
| Brakes | Wet disc |
| Trailer brakes | Hydraulic (optional) |
Power & Performance
| Test / Rating | Output |
|---|---|
| Drawbar power (tested) | 417.77 hp (311.5 kW) |
| PTO power (tested) | 504.56 hp (376.3 kW) |
The T9.565 delivers excellent traction and stable power under continuous heavy load, making it ideal for large implements.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic type | Closed-center load sensing (CCLS) |
| Remote valves | 4 to 8 |
| Standard pump flow | 42 gpm (159.0 L/min) |
| High-flow pump | 57 gpm (215.7 L/min) |
| MegaFlow option | 113 gpm (427.7 L/min) |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category IVN (opt) / IIIN (opt) |
| Hitch control | Position control |
| Rear lift capacity (24″/610 mm) | 20,000 lbs (9,072 kg) |
| Rear arms | Adjustable link ends |
| Drawbar | Category 4 |
| Rear PTO | Independent |
| PTO type | 1000 rpm (1.75 in) |
| Rated PTO rpm | 1000 @ 1998 rpm (early) / 1811 rpm (late) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 148 in (375 cm) |
| Operating weight | 36,048 lbs (16,351 kg) |
| Front tires | 710/70 |
| Rear tires | 710/70 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 200 amps |
| Batteries | 2 |
| Battery rating | 12 V / 1000 CCA |
Cab & Technology
-
Standard cab with air-conditioning
-
Optional Comfort Ride™ cab suspension
-
ISOBUS compliant
-
IntelliView™ IV display
-
IntelliSteer™ auto-guidance ready
-
Designed for long working hours with reduced operator fatigue
Serial Number Guide
| Year | Serial Prefix |
|---|---|
| 2014 | ZDFxxxxxx |
| 2015 | ZEFxxxxxx |
| 2016 | ZFFxxxxxx |
| 2017 | ZGFxxxxxx |
| 2018 | ZHFxxxxxx |
| 2019 | ZJFxxxxxx |
| 2020 | ZKFxxxxxx |
| 2021 | ZLFxxxxxx |

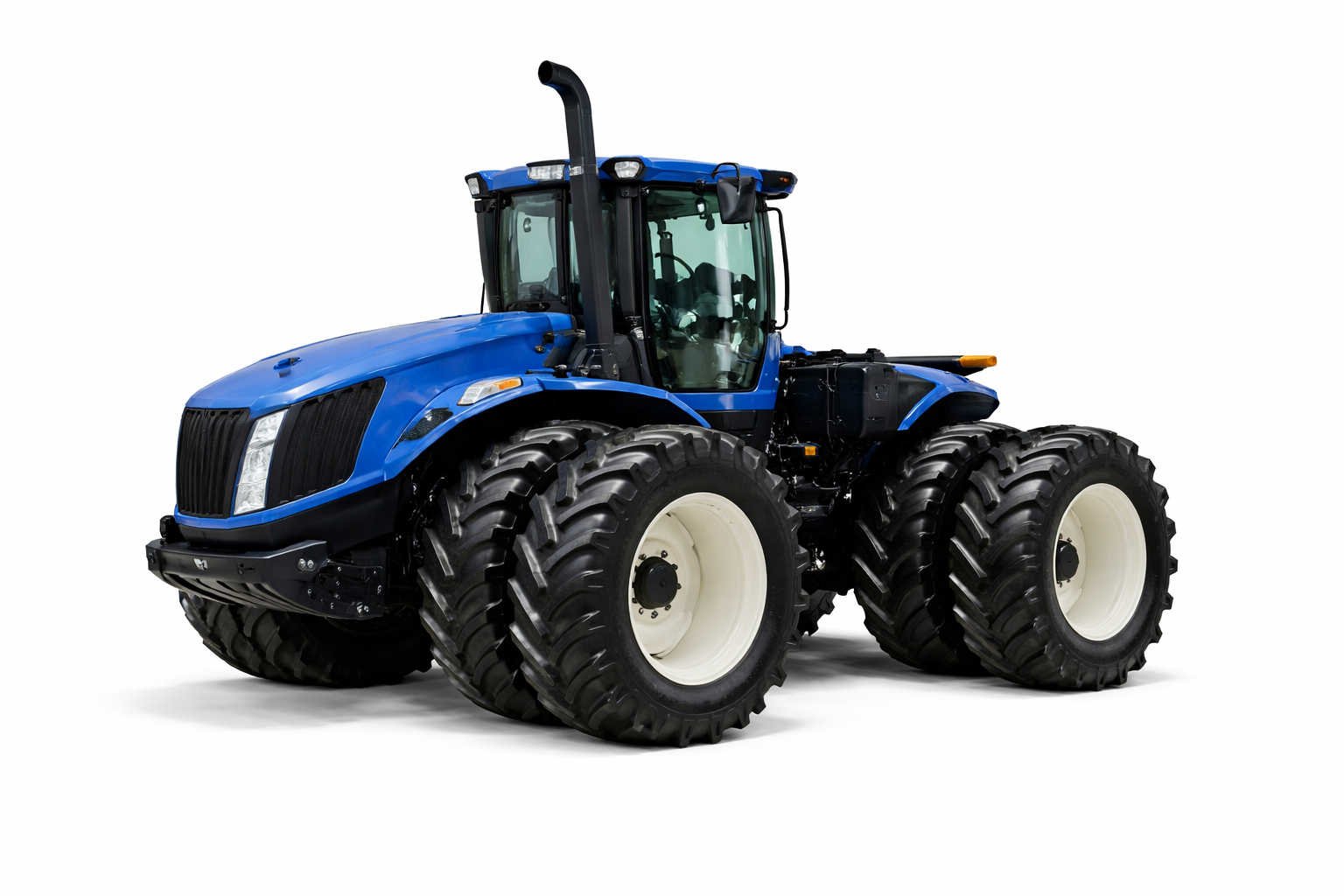

Photos
Why Choose the New Holland T9.565?
-
Proven 500–550 hp-class performance
-
Durable and efficient FPT 12.9L diesel engine
-
Strong drawbar and PTO test results
-
Advanced hydraulics for large modern implements
-
Excellent choice for large farms and global export markets
