New Holland T9.530 SmartTrax II – Specifications & Overview
Overview
The New Holland T9.530 SmartTrax II is an articulated crawler tractor developed for maximum traction, reduced soil compaction, and superior flotation in demanding field conditions. Introduced from 2018 onward as part of the advanced T9 Series, this model combines the proven high-horsepower T9 platform with the SmartTrax™ II track system.
Manufactured in Fargo, North Dakota, USA, by New Holland (a part of CNH), the T9.530 SmartTrax II is ideal for large-scale farming operations that require consistent performance on soft soils, uneven terrain, and high-draft applications.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine model | FPT Cursor 13 |
| Type | 6-cylinder turbocharged diesel |
| Displacement | 12.9 L |
| Emissions | Tier 4 Final / Stage V |
| Gross engine power | 470 hp (350.5 kW) |
| Maximum engine power | 517 hp (385.5 kW) |
Transmission
| Item | Specification |
|---|---|
| Transmission type | 17-speed Full PowerShift |
| Drive system | Articulated crawler |
| Steering | Hydrostatic power articulated |
| Application focus | Heavy draft & high-traction operations |
Power & Drivetrain
| Item | Specification |
|---|---|
| Drive type | SmartTrax™ II rubber track system |
| Configuration | Articulated crawler tractor |
| Key benefit | Maximum traction with reduced ground pressure |
The SmartTrax II system ensures even weight distribution and excellent pulling performance while minimizing soil disturbance.
Dimensions & Tracks
| Item | Specification |
|---|---|
| Track system | SmartTrax™ II |
| Track type | Rubber tracks |
| Configuration | Four-track articulated layout |
| Purpose | Improved flotation & stability |
Exact track widths and ground contact dimensions vary by configuration.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Battery voltage | 12 V |
Cab & Operator Environment
-
Standard factory cab with air-conditioning
-
Designed for long operating hours
-
Excellent visibility for large implements
-
Compatible with modern precision farming systems
Variants
| Model | Configuration |
|---|---|
| T9.530 | Wheeled articulated tractor |
| T9.530 SmartTrax | Crawler |
| T9.530 SmartTrax II | Advanced crawler with SmartTrax II |

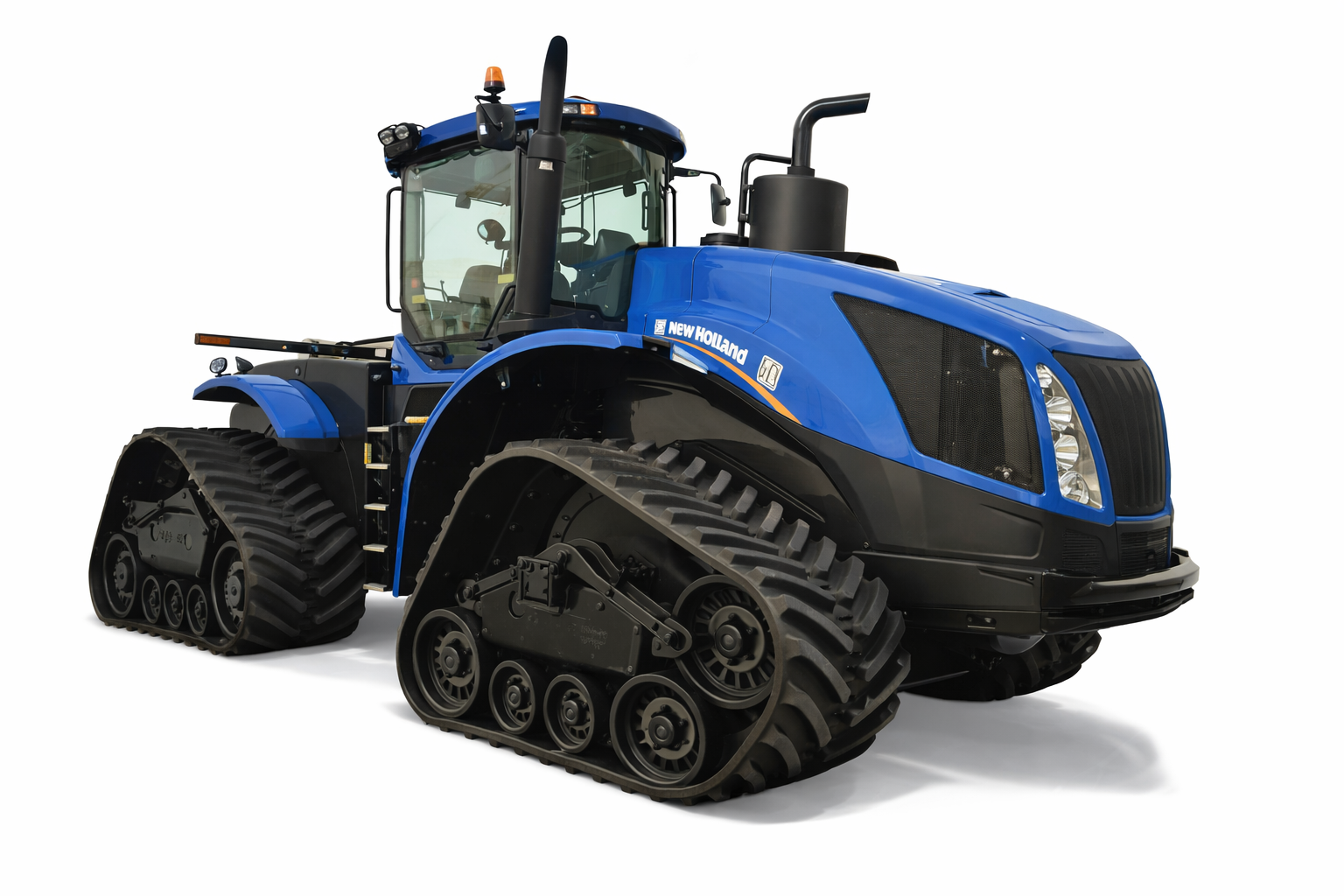

Photos
Why Choose the New Holland T9.530 SmartTrax II?
-
470–517 hp class crawler performance
-
Outstanding traction with SmartTrax™ II technology
-
Reduced soil compaction compared to wheeled tractors
-
Reliable FPT 12.9L engine for heavy-duty work
-
Ideal for large farms, contractors, and export markets
