Iseki TL2701 – Compact Utility Tractor Specifications
Overview
The Iseki TL2701 is a compact utility tractor produced from 1980 to 1985 as part of the TL-01 Series by Iseki.
As the high-output evolution of the TL2700, the TL2701 combines a larger 1.5-liter Isuzu diesel engine, a standard 18-speed transmission, and a long wheelbase chassis. This model is designed for farmers who require strong PTO performance, improved traction, and long-term durability for demanding agricultural work in global markets.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Isuzu |
| Engine type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 1.5 L |
| Rated engine power | 26.6 hp |
| Power output | 19.8 kW |
| Fuel tank capacity | 7.1 gal (26.9 L) |
| Cooling system | Liquid-cooled |
The Isuzu 1.5-liter diesel engine delivers strong low-RPM torque, smooth operation, and excellent fuel efficiency, making it suitable for continuous farm use.
Transmission
| Item | Specification |
|---|---|
| Transmission type | Gear |
| Number of speeds | 18-speed |
| Drive options | 2WD / 4WD |
| Variant | TL2701F (4WD) |
The wide-range 18-speed gearbox allows precise speed selection for field work, PTO operations, and transport tasks.
Power & PTO
| Item | Specification |
|---|---|
| PTO type | Rear PTO |
| PTO speed | 540 rpm |
| PTO shaft diameter | 1.375 in |
| PTO engine RPM | 553 / 731 / 906 / 1280 @ 2600 rpm |
The rear PTO supports a wide variety of implements such as rotary tillers, mowers, and sprayers.
Hitch
| Item | Specification |
|---|---|
| Rear hitch type | JIS 1 |
The JIS 1 hitch standard ensures compatibility with many Japanese and export-market agricultural implements.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 65 in (165 cm) |
| Operating weight | 2,249 – 2,469 lb (1,020 – 1,120 kg) |
| Front tires | 5.00-15 |
| Rear tires (2WD) | 12.4-24 |
The long wheelbase and large rear tires improve stability, traction, and performance during heavy PTO and field operations.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Variants
| Model | Description |
|---|---|
| TL2701 | 2WD version |
| TL2701F | 4WD version |

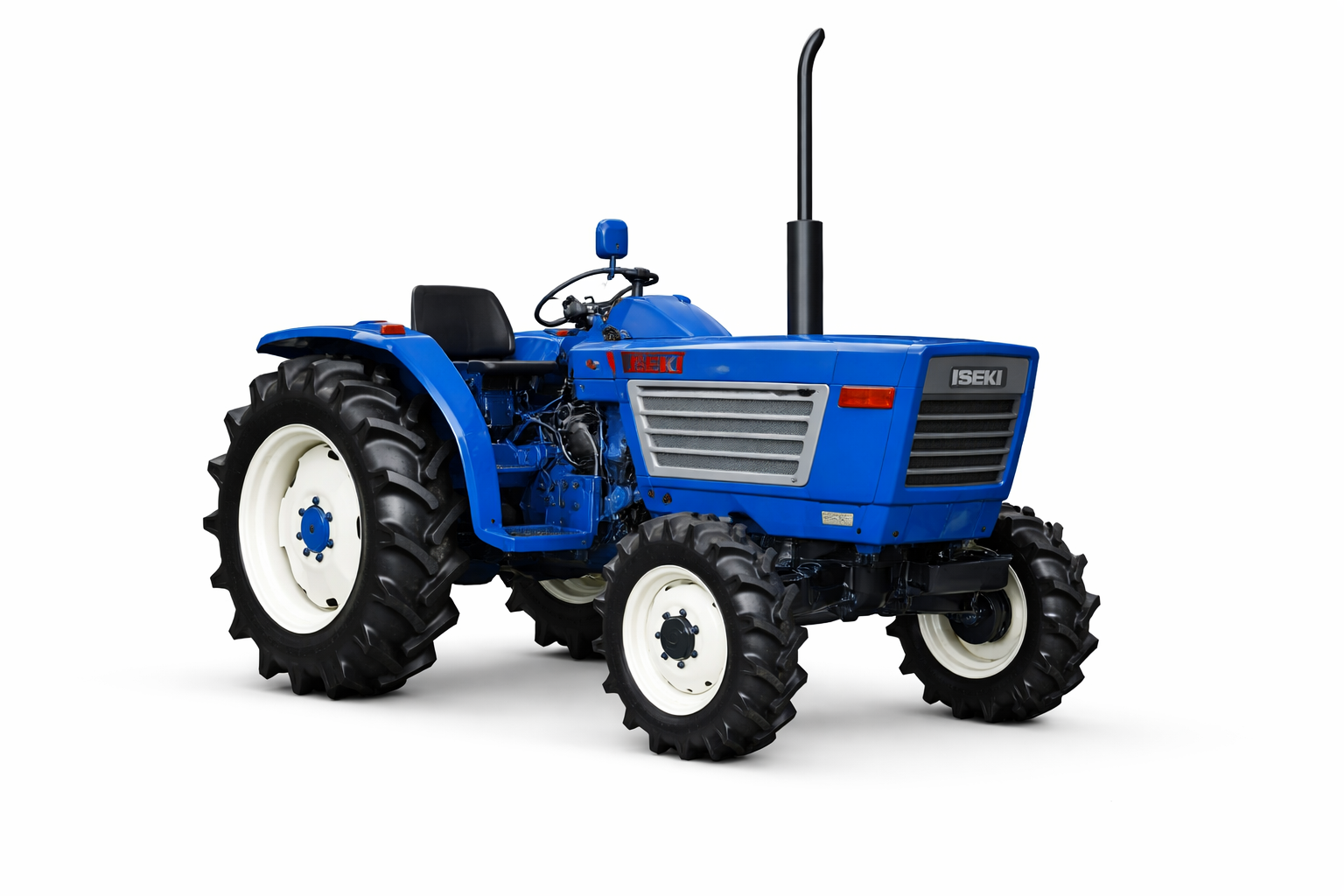

Photos
The Iseki TL2701 shares a similar appearance and layout with other TL-01 Series tractors, featuring an open operator station and a rugged, practical exterior design.
Why Choose the Iseki TL2701?
-
Powerful 26.6 hp Isuzu 1.5L diesel engine
-
Standard 18-speed transmission for precise control
-
Long wheelbase for excellent stability
-
Simple, durable mechanical construction
-
Strong compatibility with PTO-driven implements
