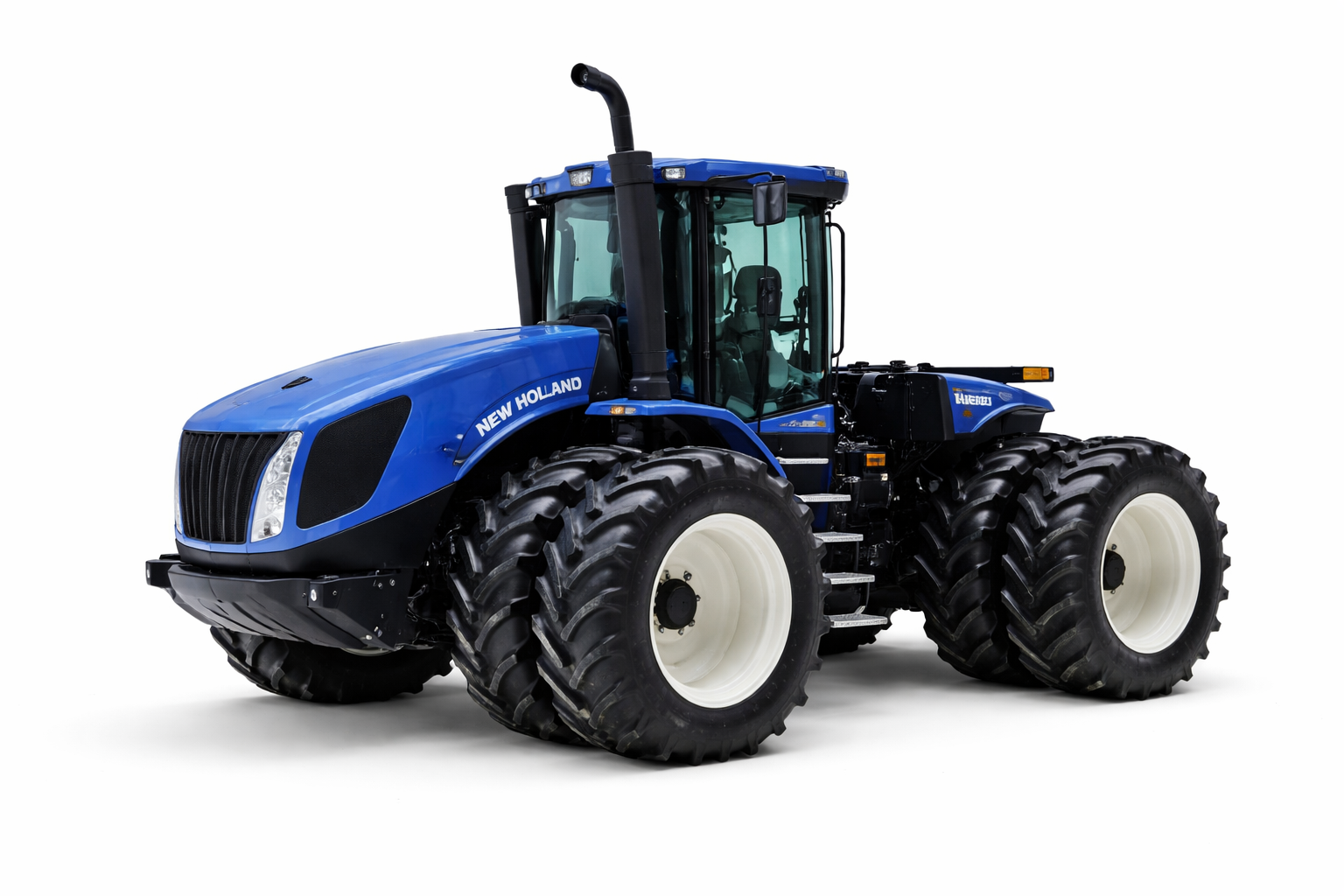

New Holland T9.480 – High-Performance 4WD Tractor Overview & Specifications
The New Holland T9.480 is a high-horsepower articulated four-wheel-drive (4WD) tractor built for intensive, large-scale agricultural operations. Produced from 2014 to 2023, it sits above the T9.435 and delivers increased power, exceptional drawbar strength, and advanced operator technology.
Manufactured by New Holland (part of CNH) in Fargo, North Dakota, USA, the T9.480 is widely used by professional farmers and contractors who demand maximum productivity and reliability.
Key Information
| Item | Details |
|---|---|
| Series | T9 Series |
| Type | Four-Wheel Drive (4WD) Tractor |
| Production Years | 2014 – 2023 |
| Manufacturer | New Holland (CNH) |
| Assembly Location | Fargo, North Dakota, USA |
| Drive System | Articulated 4WD |
| Comparable Model | Case IH Steiger 420 |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | FPT Cursor |
| Displacement | 12.9 L |
| Cylinders | 6-cylinder diesel |
| Aspiration | Turbocharged |
| Gross Engine Power | 420 hp (313.2 kW) |
| Maximum Engine Power | 462 hp (344.5 kW) |
| Fuel Tank Capacity | 230 gal / 870.6 L |
| DEF (AdBlue) Capacity | 42 gal / 159.0 L |
The 12.9L FPT engine provides massive torque and stable power delivery, ideal for prolonged heavy-load field operations.
Transmission
| Item | Specification |
|---|---|
| Transmission Type | 17-speed Full PowerShift |
The PowerShift transmission ensures smooth gear changes under load, maximizing efficiency during demanding draft work.
Power & Performance
| Category | Output |
|---|---|
| Engine Power (Gross) | 420 hp |
| Engine Power (Maximum) | 462 hp |
| PTO Power (Claimed) | 355 hp |
| PTO Power (Tested) | 413.44 hp |
| Drawbar Power (Tested) | 340.86 hp |
Outstanding tested results confirm the T9.480’s ability to handle the largest implements with ease.
Mechanical Features
| Item | Specification |
|---|---|
| Drive | Four-wheel drive (4WD) |
| Steering | Hydrostatic power articulated |
| Brakes | Wet disc brakes |
| Trailer Brakes | Hydraulic (Optional) |
| Cab | Standard cab with air-conditioning |
| Technology | ISOBUS, IntelliView IV, IntelliSteer |
| Options | Comfort Ride cab suspension |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Closed center load sensing (CCLS) |
| Remote Valves | 4 – 8 |
| Standard Pump Flow | 42 gpm / 159.0 L/min |
| High-Flow Option | 57 gpm / 215.7 L/min |
| MegaFlow Option | 113 gpm / 427.7 L/min |
The high-capacity hydraulic system supports large air seeders, planters, and complex hydraulic implements.
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Type | IVN (Opt) / IIIN (Opt) |
| Control | Position control |
| Rear Lift Capacity (24 in / 610 mm) | 20,000 lbs / 9,072 kg |
| Rear Arms | Adjustable link ends |
| Drawbar | Category 4 |
PTO
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO Type | 1000 (1.75) |
| Engine RPM | 1000 @ 1998 (early) / 1000 @ 1811 (late) |
Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase | 148 in / 375 cm |
| Operating Weight | 36,048 lbs / 16,351 kg |
| Front Tires | 710/70 |
| Rear Tires | 710/70 |
The long wheelbase and heavy operating weight ensure superior traction and stability on wide, open fields.
Serial Numbers
| Year | Serial Prefix |
|---|---|
| 2014 | ZDFxxxxxx |
| 2015 | ZEFxxxxxx |
| 2016 | ZFFxxxxxx |
| 2017 | ZGFxxxxxx |
| 2018 | ZHFxxxxxx |
| 2019 | ZJFxxxxxx |
| 2020 | ZKFxxxxxx |
| 2021 | ZLFxxxxxx |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 200 amps |
| Batteries | 2 |
| Battery Rating | 1000 CCA |
| Battery Voltage | 12 V |
Photos
Official photos of the New Holland T9.480 are limited. The model shares its overall design and chassis layout with other late-generation T9 Series tractors.
Tests & Applications
Performance testing confirms the New Holland T9.480 excels in:
-
Heavy tillage and deep ripping
-
Large-scale cultivation
-
Air seeders and high-capacity planters
-
Professional and contractor farming operations
Why Choose the New Holland T9.480?
✔ Powerful output up to 462 hp
✔ Excellent tested drawbar and PTO performance
✔ Advanced hydraulic and control systems
✔ Built for large-scale global agriculture
The New Holland T9.480 is a robust, export-ready 4WD tractor engineered to deliver consistent performance in the most demanding farming environments worldwide.
