New Holland T9.435 – Heavy-Duty 4WD Tractor Overview & Specifications
The New Holland T9.435 is a high-horsepower articulated four-wheel-drive (4WD) tractor built for large-scale and intensive agricultural operations. Produced from 2014 to 2023, it represents a major evolution of the T9 Series, offering improved power output, advanced hydraulics, and excellent drawbar performance.
Manufactured by New Holland (part of CNH) in Fargo, North Dakota, USA, the T9.435 is widely trusted by professional farmers and contractors worldwide.
Key Information
| Item | Details |
|---|---|
| Series | T9 Series |
| Type | Four-Wheel Drive (4WD) Tractor |
| Production Years | 2014 – 2023 |
| Manufacturer | New Holland (CNH) |
| Assembly Location | Fargo, North Dakota, USA |
| Drive System | Articulated 4WD |
| Comparable Model | Case IH Steiger 370 |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | FPT Cursor |
| Displacement | 8.7 L |
| Cylinders | 6-cylinder diesel |
| Aspiration | Turbocharged |
| Gross Engine Power | 370 hp (275.9 kW) |
| Maximum Engine Power | 429 hp (319.9 kW) |
| Fuel Tank Capacity | 230 gal / 870.6 L |
| DEF (AdBlue) Capacity | 42 gal / 159.0 L |
The FPT 8.7L engine delivers strong low-end torque and consistent power, ensuring excellent fuel efficiency under heavy continuous loads.
Transmission
| Item | Specification |
|---|---|
| Transmission Type | 17-speed Full PowerShift |
The PowerShift transmission allows smooth gear changes under load, maximizing productivity in demanding field conditions.
Power & Performance
| Category | Output |
|---|---|
| Engine Power (Gross) | 370 hp |
| Engine Power (Maximum) | 429 hp |
| PTO Power (Claimed) | 311 hp |
| PTO Power (Tested) | 366.46 hp |
| Drawbar Power (Tested) | 300.99 hp |
Exceptional tested drawbar performance highlights the T9.435’s strength in heavy tillage and large draft applications.
Mechanical Features
| Item | Specification |
|---|---|
| Drive | Four-wheel drive (4WD) |
| Steering | Hydrostatic power articulated |
| Brakes | Wet disc brakes |
| Trailer Brakes | Hydraulic (Optional) |
| Cab | Standard cab with air-conditioning |
| Technology | ISOBUS, IntelliView IV, IntelliSteer |
| Options | Comfort Ride cab suspension |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Closed center load sensing (CCLS) |
| Remote Valves | 4 – 8 |
| Standard Pump Flow | 40 gpm / 151.4 L/min |
| High-Flow Option | 55 gpm / 208.2 L/min |
| MegaFlow Option | 93 gpm / 352.0 L/min |
The high-capacity hydraulic system supports large air seeders, planters, and complex hydraulic implements.
Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Type | IVN (Opt) / IIIN (Opt) |
| Control | Position control |
| Rear Lift Capacity (24 in / 610 mm) | 20,000 lbs / 9,072 kg |
| Rear Arms | Adjustable link ends |
| Drawbar | Category 4 |
PTO
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO Type | 1000 (1.75) |
| Engine RPM | 1000 @ 1998 (early) / 1000 @ 1811 (late) |
Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase | 148 in / 375 cm |
| Operating Weight | 35,848 lbs / 16,260 kg |
| Front Tires | 710/70 |
| Rear Tires | 710/70 |
The long wheelbase and heavy operating weight ensure excellent traction and stability in large fields.
Serial Numbers
| Year | Serial Prefix |
|---|---|
| 2014 | ZDFxxxxxx |
| 2015 | ZEFxxxxxx |
| 2016 | ZFFxxxxxx |
| 2017 | ZGFxxxxxx |
| 2018 | ZHFxxxxxx |
| 2019 | ZJFxxxxxx |
| 2020 | ZKFxxxxxx |
| 2021 | ZLFxxxxxx |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 200 amps |
| Batteries | 2 |
| Battery Rating | 1000 CCA |
| Battery Voltage | 12 V |

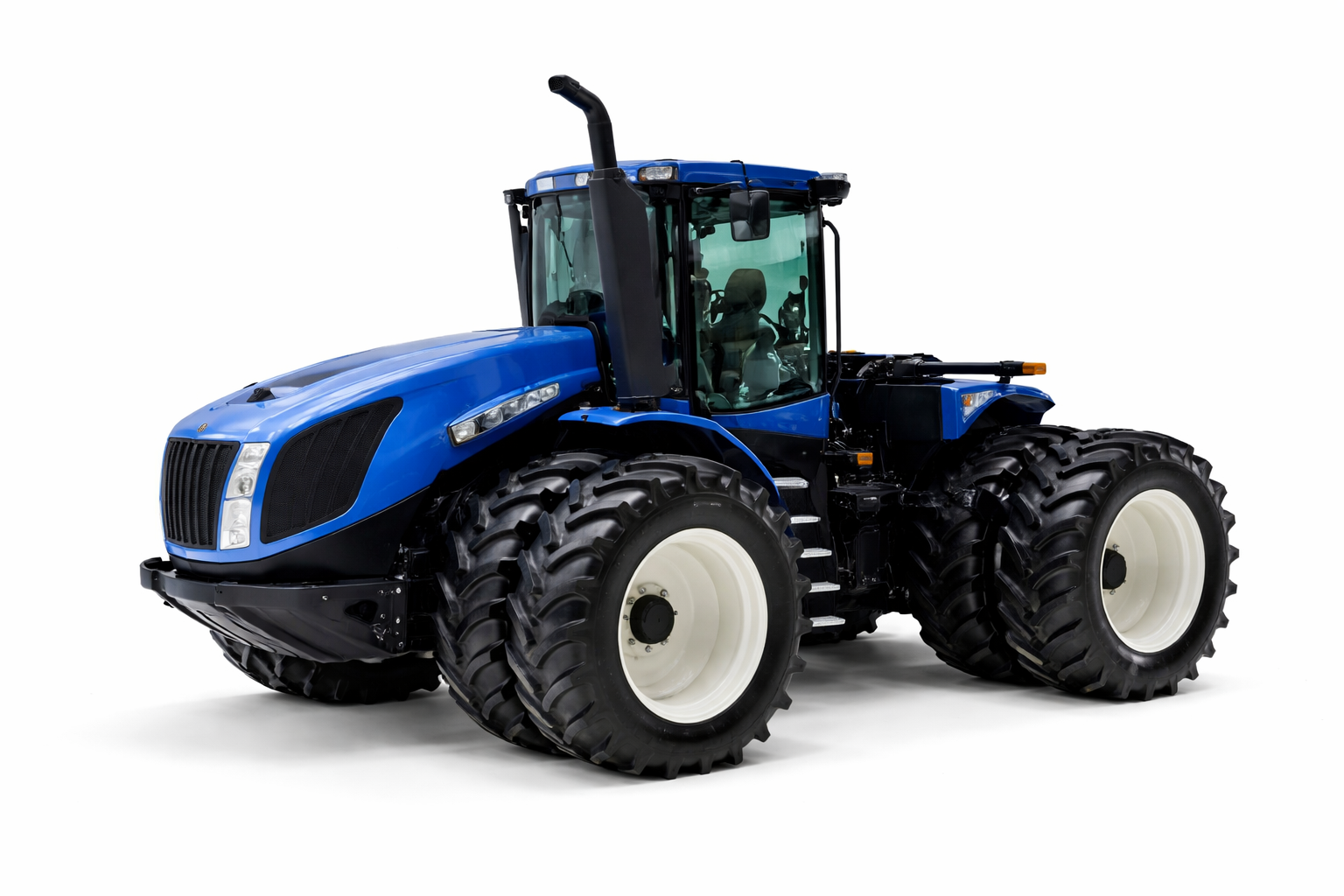

Photos
Official photos of the New Holland T9.435 are limited. The model shares a similar design and structure with other late-generation T9 Series tractors.
Tests & Applications
Performance testing confirms the New Holland T9.435 is ideal for:
-
Heavy tillage and deep ripping
-
Large-scale cultivation
-
Air seeders and high-capacity planters
-
Professional and contractor farming operations
Why Choose the New Holland T9.435?
✔ Proven power up to 429 hp
✔ Excellent tested drawbar performance
✔ High-capacity hydraulic options
✔ Built for large-scale global agriculture
The New Holland T9.435 is a robust, export-ready 4WD tractor engineered to handle the most demanding farming operations worldwide.
