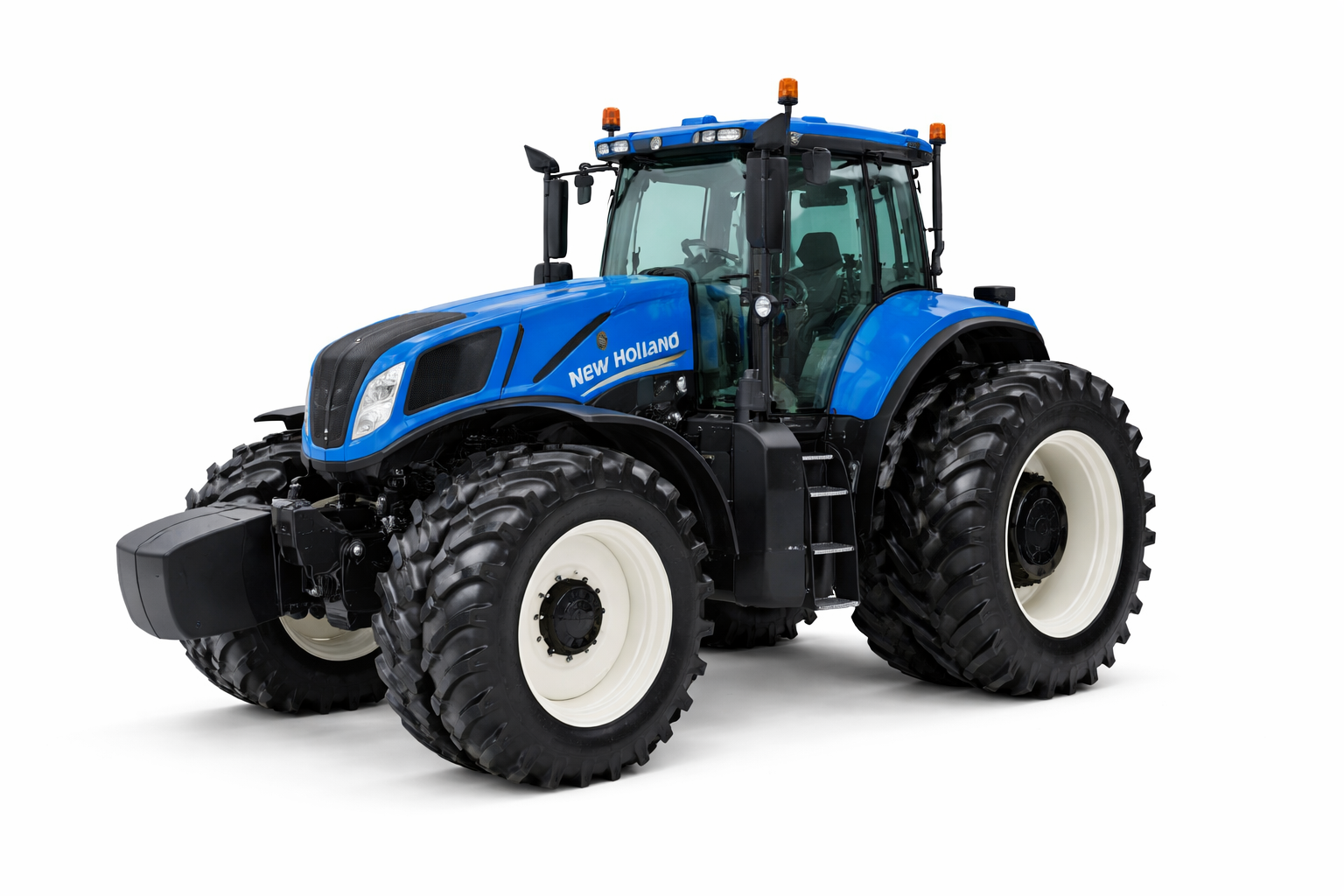

New Holland T8.410 – High-Power Row-Crop Tractor Overview & Specifications
The New Holland T8.410 is a high-performance row-crop tractor engineered for large-scale and demanding agricultural operations. Introduced in 2015, it sits in the upper range of the T8 Series, delivering exceptional horsepower, advanced transmission options, and strong hydraulic performance.
Manufactured by New Holland (part of CNH) in Racine, Wisconsin, USA, the T8.410 is widely used for heavy tillage, high-capacity planting, and intensive PTO-driven applications.
Key Information
| Item | Details |
|---|---|
| Series | T8 Series |
| Type | Row-Crop Tractor |
| Production Years | 2015 – |
| Manufacturer | New Holland (CNH) |
| Assembly Location | Racine, Wisconsin, USA |
| Original Price | USD 334,083 (2016, PowerShift) |
| Comparable Model | Case IH Magnum 340 |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | FPT |
| Engine Type | FPT Cursor |
| Displacement | 8.7 L |
| Cylinders | 6-cylinder diesel |
| Aspiration | Turbocharged |
| Gross Engine Power | 340 hp (253.5 kW) |
| Maximum Engine Power | 409 hp (305.0 kW) |
| DEF (AdBlue) Capacity | 26 gal / 98.4 L |
Fuel Tank Capacity
| Transmission Type | Capacity |
|---|---|
| CVT | 163 gal / 617.0 L |
| Full PowerShift (FPS) | 179 gal / 677.5 L |
The 8.7L FPT engine provides strong torque across a wide RPM range, ensuring consistent performance during long working hours and heavy-load operations.
Transmission
| Option | Description |
|---|---|
| 18-speed Full PowerShift | Reliable and efficient under load |
| Continuously Variable Transmission (CVT) | Smooth speed control and fuel efficiency |
| 23-speed PowerShift Creeper | Precision work at ultra-low speeds |
These transmission options allow operators to tailor the tractor to specific field and PTO requirements.
Power & Performance
| Category | Output |
|---|---|
| Engine Power (Gross) | 340 hp |
| Engine Power (Maximum) | 409 hp |
| PTO Power (Claimed) | 290 hp |
| PTO Power (Tested) | 336.17 hp |
The high tested PTO output makes the T8.410 suitable for large balers, forage harvesters, and other power-intensive implements.
Mechanical Features
| Item | Specification |
|---|---|
| Drive | Four-wheel drive (4WD) |
| Final Drives | Inboard planetary |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| Cab | Standard cab with A/C |
| Options | Comfort Ride cab suspension, IntelliSteer ready |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Closed center pressure-flow compensating (PFC) |
| Remote Valves | 4–5 |
| Pump Flow | 44 gpm (166.5 L/min) |
| High-Flow Option | 75 gpm (283.9 L/min) |
The hydraulic system easily supports large, modern implements with complex hydraulic demands.
Hitch & PTO
Rear Hitch
| Category | Capacity |
|---|---|
| Type III/IIIN | 15,900 lbs / 7,212 kg |
| Cat. 3 (38-inch arms) | 17,900 lbs / 8,119 kg |
| Type IVN/III | 17,500 lbs / 7,938 kg |
| Cat. 4 (38-inch arms) | 19,500 lbs / 8,845 kg |
PTO
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO Type | 1000 (1.75) |
| Optional | 540/1000 (1.375) |
| Engine RPM | 540 @ 1800 / 1000 @ 1800 |
| Front PTO | Independent (Optional) |
| Front PTO Type | 1000 (1.375) |
Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase (FPS) | 136 in / 345 cm |
| Wheelbase (CVT) | 138 in / 350 cm |
| Operating Weight | 22,663 lbs / 10,279 kg |
| Front Tires | 420/85R34 |
| Rear Tires | 480/80R50 |
The long wheelbase and optimized tire setup ensure excellent traction and field stability.
Attachments
| Available Attachments |
|---|
| Front-end loader |
The T8.410 is compatible with a wide range of front and rear implements for versatile farm use.
Serial Number Guide
| Year | Serial Prefix |
|---|---|
| 2015 | ZERxxxxxx |
| 2016 | ZFRxxxxxx |
| 2017 | ZGRxxxxxx |
| 2018 | ZHRxxxxxx |
| 2019 | ZJRxxxxxx |
| 2020 | ZKRxxxxxx |
| 2021 | ZLRxxxxxx |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 200 amps |
| Battery Voltage | 12 V |
| Batteries | 2 |
Tests & Applications
Field and PTO performance tests confirm that the New Holland T8.410 excels in:
-
Heavy tillage and deep ripping
-
Large-scale planting and seeding
-
High-capacity PTO-driven equipment
-
Commercial farming and contractor operations
Why Choose the New Holland T8.410?
✔ High maximum power up to 409 hp
✔ Multiple transmission choices including CVT
✔ Strong hydraulic and PTO performance
✔ Built for large farms and professional operators
