🚜 Massey Ferguson 398 Tractor Specifications & Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 398 |
| Series | 300 Series |
| Type | Utility Tractor |
| Production Years | 1987 – 1991 |
| Manufacturer | Massey Ferguson |
| Built In | Coventry, England |
| Original Price | USD 27,400 (1988 2WD) / USD 32,800 (1988 4WD) |
| Drive Options | 2WD / 4WD |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| ROPS | Two-post ROPS, canopy optional |
Series Power Map
| Model | Engine Power |
|---|---|
| 390 | 76.0 hp |
| 398 | 89.0 hp |
| 399 | 96.0 hp |
Engine
| Item | Specification |
|---|---|
| Engine Model | Perkins |
| Type | Diesel |
| Cylinders | 4 |
| Displacement | 3.9 L |
| Rated Engine Power | 89 hp (66.4 kW) |
| Fuel Tank | 28.5 gal (107.9 L) |
Transmission
| Option | Description |
|---|---|
| 12-speed | Synchromesh |
| 12-speed | Two-speed powershift |
Power & Performance (Factory / Tested)
| Measurement | Value |
|---|---|
| Engine (claimed) | 89 hp (66.4 kW) |
| PTO (claimed) | 82 hp (61.1 kW) |
| Drawbar (tested) | 66.8 hp (49.8 kW) |
| PTO (tested) | 80.3 hp (59.9 kW) |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Pressure | 3000 psi (206.8 bar) |
| Linkage Pump Flow | 7.2 gpm (27.3 L/min) |
| Auxiliary Pump Flow | 9.5 gpm (36.0 L/min) |
| Total Flow | 16.8 gpm (63.6 L/min) |
Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Control | Position & Draft |
| Rear Lift | 4,340 lbs (1,968 kg) |
| Lift (telescopic ends) | 5,507 lbs (2,497 kg) |
| Lift (fixed ends) | 6,744 lbs (3,059 kg) |
| Lift (fixed ends + assist rams) | 8,109 lbs (3,678 kg) |
PTO (Power Take-Off)
| Item | Specification |
|---|---|
| Type | Independent |
| Speeds | 540 / 1000 rpm |
| Shaft | 1.375 in |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 84.1 in (213 cm) |
| Wheelbase (4WD) | 92.5 in (234 cm) |
| Operating Weight | 7,047 – 7,648 lbs |
| Front Tire | 7.50-18 |
| Rear Tire (2WD) | 18.4-34 |
Electrical
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 45 amps |
| Battery | 12 V |
| Battery CCA | 420 (×2) / 540 (×1) |
Serial Number Information
Location: Right side of the tractor near the brake pedals.
| Year | Serial Start |
|---|---|
| 1986 | U01001 |
| 1987 | V01001 |
| 1988 | N01001 |
| 1989 | P01001 |
| 1990 | R01001 |
| 1991 | S01001 |
| 1992 | A01001 |
| 1993 | B01001 |
| 1994 | C01001 |
| 1995 | D01001 |
| 1996 | E01001 |
| 1997 | F01001 |

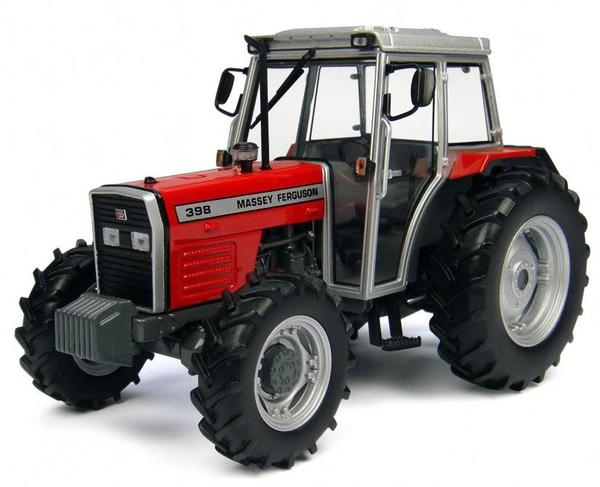

Photos
Why the Massey Ferguson 398 Is a Proven Workhorse
The 398 pairs the dependable Perkins 3.9L diesel with flexible transmissions and strong hydraulics. Its solid PTO output and high lift capacity make it ideal for tillage, transport, and PTO-driven implements across diverse farming conditions.
