🚜 Massey Ferguson 390T Tractor Specifications & Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 390T |
| Series | 300 Series |
| Type | Utility Tractor |
| Production Years | 1989 – 1997 |
| Manufacturer | Massey Ferguson |
| Built In | Coventry, England |
| Original Price | USD 34,000 (1997) |
| Drive Options | 2WD / 4WD |
| ROPS / Cab | Two-post fixed ROPS, optional cab with A/C |
Series Map (Power Class)
390 (79.0 hp) → 390T (92.0 hp) → 393 (95.0 hp)
Engine
| Item | Specification |
|---|---|
| Engine Model | Perkins |
| Type | Diesel |
| Cylinders | 4 |
| Displacement | 3.9 L |
| Rated Engine Power | 92 hp (68.6 kW) |
Transmission
| Option | Description |
|---|---|
| 12-speed | Synchromesh |
| 12-speed | Synchronized shuttle |
| 18-speed | Two-speed powershift |
Power & Performance (Factory / Tested)
| Measurement | Value |
|---|---|
| Engine (claimed) | 92 hp (68.6 kW) |
| PTO (claimed) | 85 hp (63.4 kW) |
| Drawbar (tested) | 65.2 hp (48.6 kW) |
| PTO (tested) | 80.2 hp (59.8 kW) |
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Hydraulic Capacity | 12.5 gal (47.3 L) |
| Pressure | 3000 psi (206.8 bar) |
| Valves | 2 |
| Linkage Pump Flow | 7.2 gpm (27.3 L/min) |
| Auxiliary Pump Flow | 9.5 gpm (36.0 L/min) |
| Total Flow | 16.8 gpm (63.6 L/min) |
PTO (Power Take-Off)
| Item | Specification |
|---|---|
| Type | Independent |
| Speeds | 540 / 1000 rpm |
| Shaft | 1.375 inch |
Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Control | Position & Draft |
| Lift Capacity (fixed-end) | 5701 lbs (2585 kg) |
| Lift w/ Assist Ram | 6744 lbs (3059 kg) |
| Lift (wrist-action) | 5410 lbs (2453 kg) |
Capacity
| Item | Capacity |
|---|---|
| Fuel Tank | 28.5 gal (107.9 L) |
| Hydraulic System | 12.5 gal (47.3 L) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 84.1 in (213 cm) |
| Wheelbase (4WD) | 92.5 in (234 cm) |
| Operating Weight | 6325 – 7602 lbs |
| Front Tire | 7.50-16 |
| Rear Tire | 18.4-30 |
Electrical
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 45 amps |
| Battery | 12 V |
| Battery CCA | 420 (×2) / 540 (×1) |
Attachments
| Attachment | Notes |
|---|---|
| Front-End Loader | Compatible |
Serial Number Information
| Year | Serial Start |
|---|---|
| 1986 | U01001 |
| 1987 | V01001 |
| 1988 | N01001 |
| 1989 | P01001 |
| 1990 | R01001 |
| 1991 | S01001 |
| 1992 | A01001 |
| 1993 | B01001 |
| 1994 | C01001 |
| 1995 | D01001 |
| 1996 | E01001 |
| 1997 | F01001 |
Location: Serial plate on the right side of the tractor, near the brake pedals.

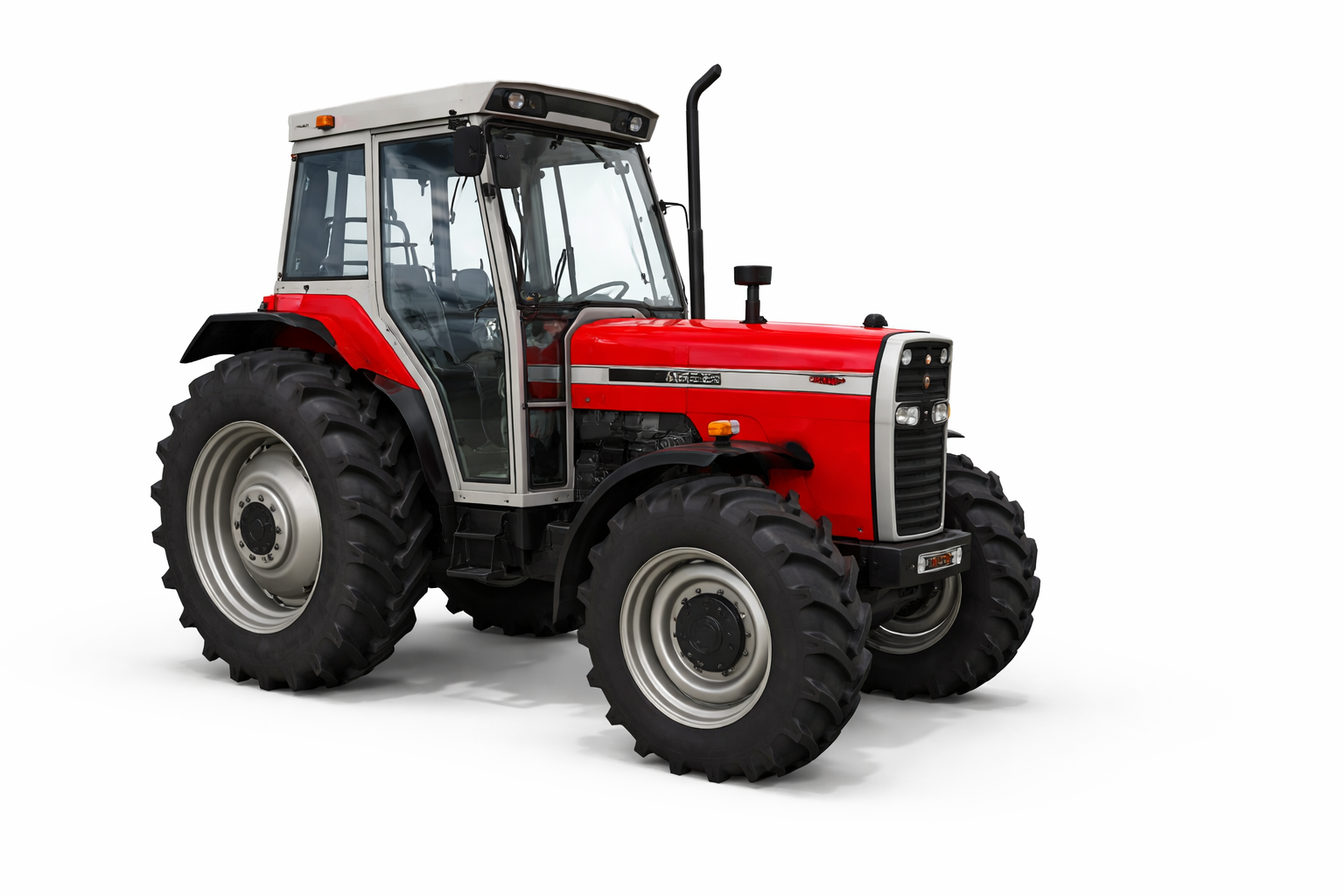

Photos
Why the Massey Ferguson 390T Is Still Popular
The 390T combines a reliable Perkins 3.9L engine, multiple transmission choices, strong hydraulics, and proven durability. This makes it a dependable utility tractor for mixed farming, loader work, and PTO-driven applications worldwide.
