🚜 Mitsubishi MT3500 Compact Utility Tractor – Full Specifications
The Mitsubishi MT3500 is a compact utility tractor from the MT Series, produced between 2007 and 2012. Positioned above the MT3000, it delivers increased horsepower while maintaining compact dimensions, making it ideal for intensive farm work where maneuverability and power are equally important.
With a 35 horsepower diesel engine, four-wheel drive, and a durable mechanical design, the MT3500 is well-suited for plowing, rotary tilling, transport, and PTO-driven applications. Its reputation for reliability and simple maintenance makes it a popular choice for overseas agricultural users.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Mitsubishi |
| Engine type | Diesel |
| Cylinders | 3-cylinder |
| Displacement | 1.5 L |
| Cooling system | Liquid-cooled |
| Fuel tank capacity | 7.9 gal (29.9 L) |
| Rated engine power | 35 hp (26.1 kW) |
Engine Features
-
Efficient 1.5L diesel engine
-
Strong torque for PTO and field work
-
Low fuel consumption for long operating hours
Transmission
| Item | Specification |
|---|---|
| Transmission type | Mechanical gear |
| Number of speeds | 9-speed |
| Drive system | Four-wheel drive (4WD) |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| ROPS | Two-post folding ROPS |
The 9-speed gear transmission offers precise speed selection for various farming tasks, while power steering reduces operator fatigue during long work sessions.
Power & PTO
| Item | Specification |
|---|---|
| Engine power | 35 hp (26.1 kW) |
| PTO power (claimed) | 29 hp (21.6 kW) |
| Rear PTO type | Live |
| Rear PTO speeds | 540 / 1000 rpm |
| PTO shaft | 1.375 in |
| Engine RPM @ PTO | 540 @ 2376 rpm / 1000 @ 2421 rpm |
| Mid PTO | Optional |
The dual-speed PTO allows compatibility with a wide range of implements, including rotary tillers, mowers, and other PTO-driven equipment.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic pressure | 1850 psi (127.6 bar) |
| Pump flow | 7.4 gpm (28.0 L/min) |
| Steering flow | 3.4 gpm (12.9 L/min) |
The hydraulic system provides strong lifting capacity and smooth implement control, suitable for both field and utility operations.
Tractor Hitch
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
| Hitch control | Position control |
| Draft control | Optional |
| Rear lift capacity (ends) | 2205 lbs (1000 kg) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 66.9 in (169 cm) |
| Operating weight | 2767 lbs (1255 kg) |
| Front tires | 7-16 |
| Rear tires | 11.2-24 |
The balanced weight and wheelbase ensure excellent stability during loader work and heavy rear-mounted implement use.
Electrical
| Item | Specification |
|---|---|
| Electrical system | 12 V |
| Ground | Negative |

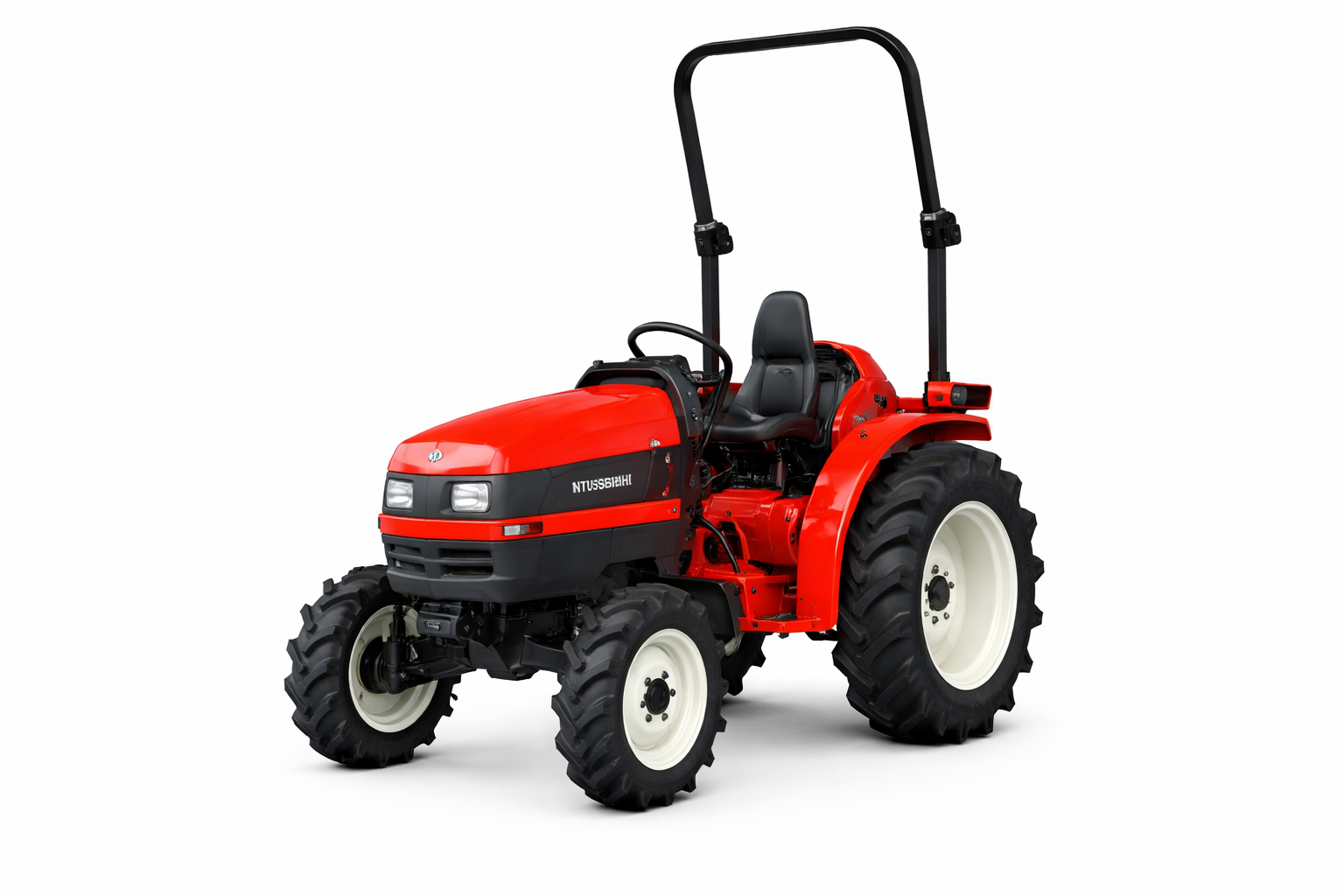

Photos
At this time, official photos of the Mitsubishi MT3500 are limited. The MT3500 shares a similar design language with other MT Series tractors, featuring a compact hood, ergonomic operator platform, and robust rear linkage system.
Why Choose the Mitsubishi MT3500 for Export?
-
Reliable Japanese diesel engineering
-
Strong 35HP performance in a compact frame
-
Excellent PTO and hydraulic capability
-
Easy maintenance and parts compatibility
-
Proven durability in overseas farming environments
The Mitsubishi MT3500 is an excellent solution for farmers seeking a powerful yet compact tractor capable of handling diverse agricultural tasks across global markets.
