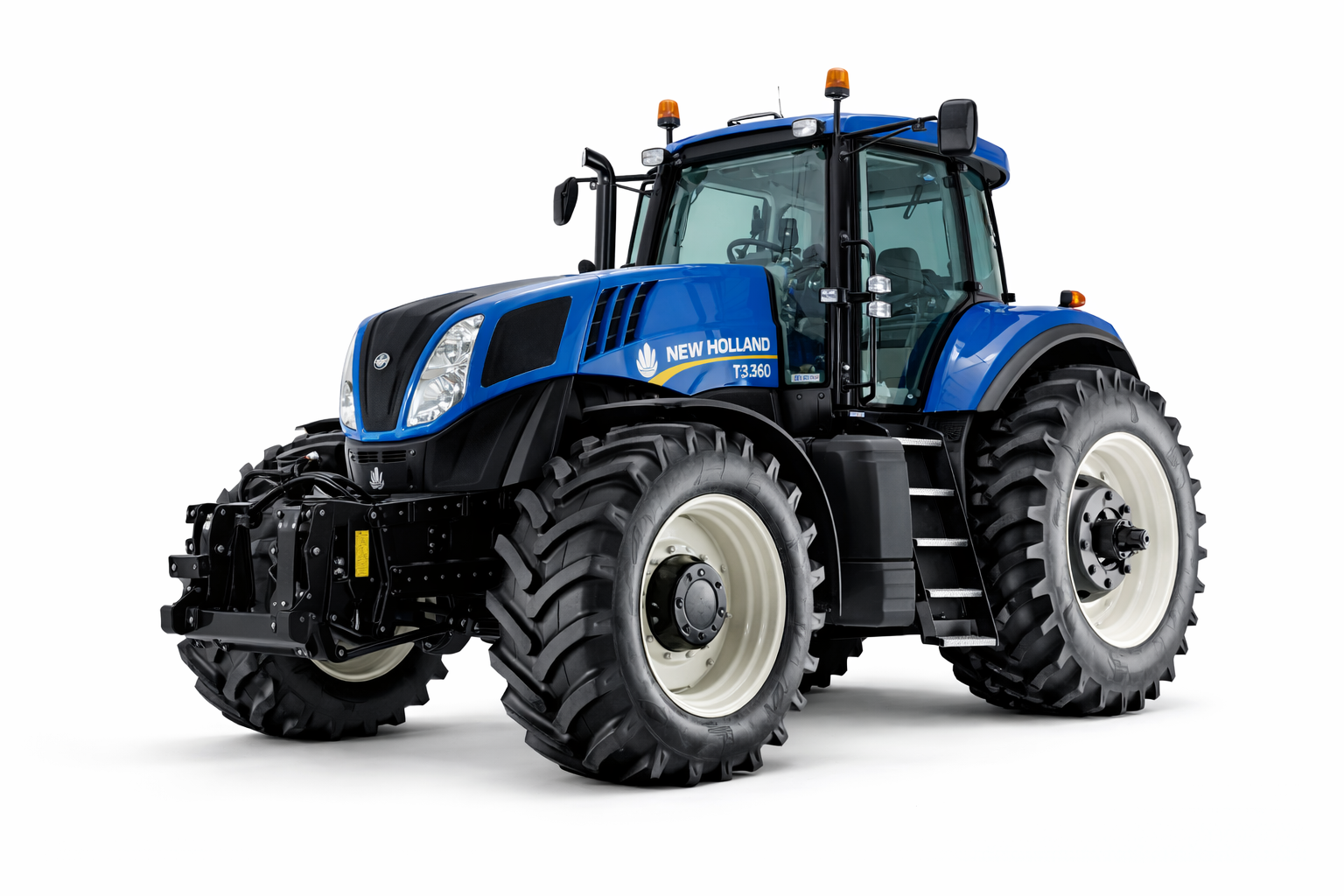

New Holland T8.360 – Specifications & Overview
The New Holland T8.360 is a high-horsepower row-crop tractor from the first-generation T8 Series, built for large-scale farming and the most demanding field operations. Positioned between the T8.330 and T8.390, it delivers exceptional PTO output, strong drawbar performance, and proven mechanical reliability.
Manufactured by New Holland (part of CNH Industrial), the T8.360 was produced from 2011 to 2014 at the Racine, Wisconsin (USA) factory. It remains highly valued in global export markets for its balance of power and durability.
Key Information
| Item | Details |
|---|---|
| Model | New Holland T8.360 |
| Production Years | 2011 – 2014 |
| Model Years | 2011 – 2012 |
| Series | T8 Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturing Location | Racine, Wisconsin, USA |
| Drive | 4WD |
| Similar Model | Case IH Magnum 315 |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Model | FPT 8.7L |
| Configuration | 6-cylinder diesel |
| Displacement | 8.7 L |
| Emissions System | SCR with DEF |
| Fuel Tank Capacity | 168 gal (635.9 L) |
| DEF Capacity | 24 gal (90.8 L) |
Engine & PTO Power
| Measurement | Output |
|---|---|
| Gross Engine Power | 312 hp (232.7 kW) |
| Maximum Engine Power | 343 hp (255.8 kW) |
| PTO Power (claimed) | 265 hp (197.6 kW) |
| PTO Power (tested) | 315.72 hp (235.4 kW) |
| Drawbar Power (tested) | 231.39 hp (172.5 kW) |
Transmission
| Option | Description |
|---|---|
| 19-Speed | Full PowerShift |
| 18-Speed | Full PowerShift |
| 23-Speed | Creeper transmission |
These transmission choices allow operators to configure the T8.360 for heavy tillage, transport efficiency, or precision low-speed operations.
Hydraulics
| Specification | Details |
|---|---|
| System Type | Closed Center Load Sensing (CCLS) |
| Rear Remote Valves | 4 – 6 |
| Standard Pump Flow | 35 gpm (132.5 L/min) |
| Total Hydraulic Flow | 42.5 gpm (160.9 L/min) |
| MegaFlow Option | 72.3 gpm (273.7 L/min) |
Hitch & Lift Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | Category III / IIIN |
| Rear Lift Capacity | 16,375 lbs (7,427 kg) |
| Optional Rear Lift | 17,931 lbs (8,133 kg) |
| Front Hitch | Optional |
Power Take-Off (PTO)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| Rear PTO Types | 1000 (1.75 in) |
| Optional PTO | 540 / 1000 (1.375 in) |
| Engine RPM @ 540 | 1804 rpm |
| Engine RPM @ 1000 | 1804 rpm |
| Front PTO | Independent (optional) |
| Front PTO Speed | 1000 rpm |
Dimensions & Weight
| Specification | Value |
|---|---|
| Wheelbase | 135.8 in (344 cm) |
| Operating Weight | 24,480 – 25,280 lbs |
| Tire Options | Multiple agricultural configurations |
Cab & Operator Environment
-
Enclosed cab (standard)
-
Power steering
-
Hydraulic wet disc brakes
-
Designed for comfort during long working hours
Electrical System
| Item | Specification |
|---|---|
| System Voltage | 12 V |
| Ground | Negative |
| Alternator Output | 200 A |
| Batteries | 2 × 12 V |
Tests & Performance
Independent testing confirms the T8.360’s excellent drawbar efficiency and outstanding PTO output, making it ideal for large implements, grain carts, and high-demand PTO-driven equipment.
Summary
The New Holland T8.360 is a powerful and reliable high-horsepower row-crop tractor that combines a proven FPT 8.7L engine with versatile transmission options and strong hydraulics. For professional farmers and international buyers seeking dependable performance in the 300+ horsepower class, the T8.360 remains a standout model in the New Holland T8 Series.
