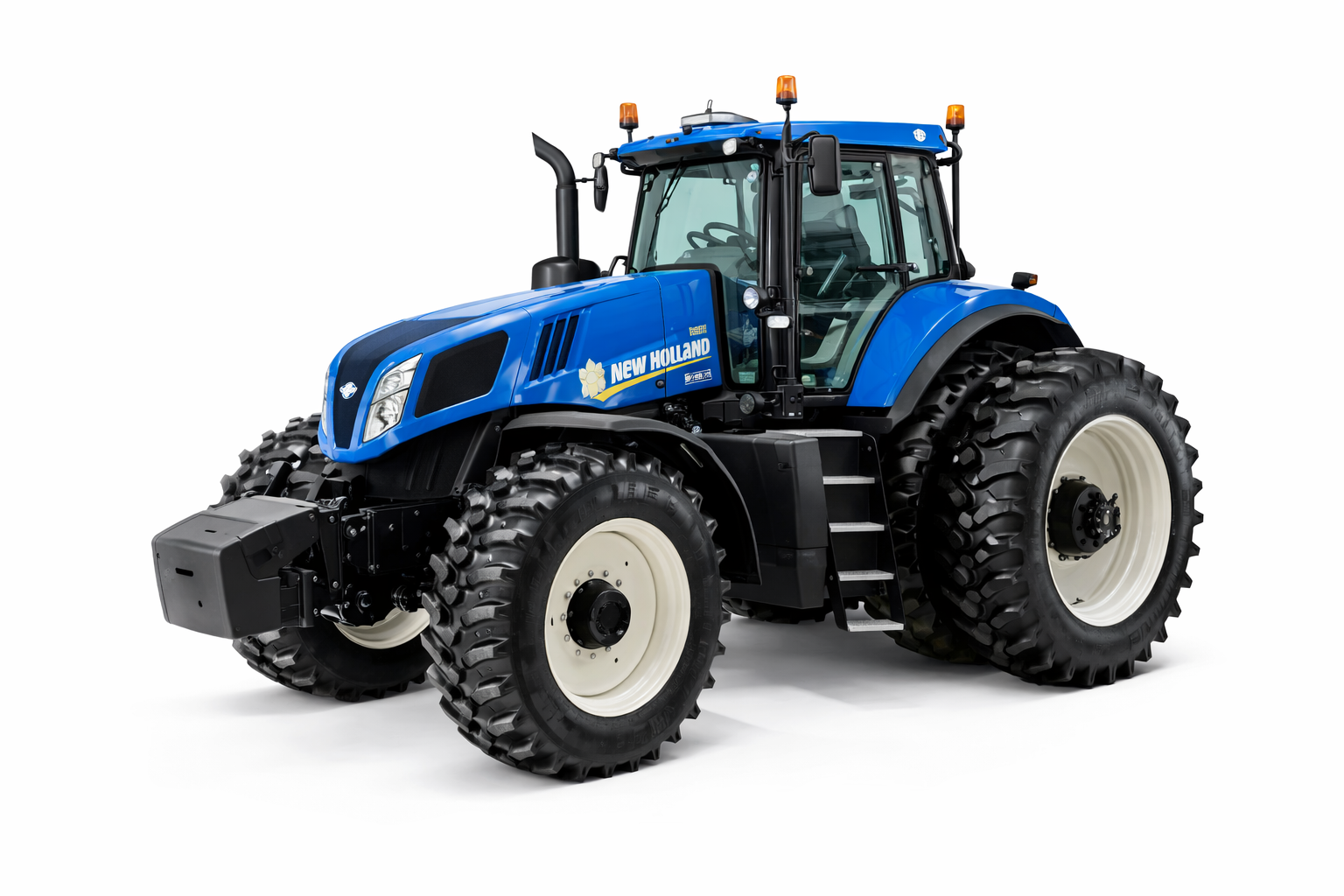

New Holland T8.320 – Specifications & Overview
The New Holland T8.320 is a next-generation high-horsepower row-crop tractor introduced in 2015 as part of the updated T8 Series. Designed for large-scale and high-output farming, it combines advanced engine management, multiple transmission choices, and strong hydraulic performance.
Built in Racine, Wisconsin (USA) by New Holland—a part of CNH—the T8.320 is widely used for heavy tillage, large planters, grain carts, and PTO-intensive operations. In 2016, the original price was approximately USD 261,389 (PowerShift version).
Key Information
| Item | Details |
|---|---|
| Model | New Holland T8.320 |
| Production Years | 2015 – present |
| Series | T8 Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturing Location | Racine, Wisconsin, USA |
| Drive | 4WD |
| Similar Model | Case IH Magnum 250 |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Model | FPT 8.7L |
| Configuration | 6-cylinder diesel |
| Displacement | 8.7 L |
| Emissions | SCR with DEF |
| Fuel Tank (CVT) | 163 gal (617.0 L) |
| Fuel Tank (PowerShift) | 179 gal (677.5 L) |
| DEF Capacity | 26 gal (98.4 L) |
Engine & PTO Power
| Measurement | Output |
|---|---|
| Gross Engine Power | 250 hp (186.4 kW) |
| Maximum Engine Power | 320 hp (238.6 kW) |
| PTO Power (claimed) | 205 hp (152.9 kW) |
| PTO Power (tested) | 261.49 hp (195.0 kW) |
| Drawbar Power (tested) | 183.85 hp (137.1 kW) |
Transmission
| Option | Description |
|---|---|
| 18-Speed | Full PowerShift |
| CVT | Continuously Variable Transmission |
| 23-Speed | PowerShift Creeper |
The availability of both CVT and PowerShift transmissions allows operators to choose between maximum efficiency, smooth speed control, or precise low-speed work.
Hydraulics
| Specification | Details |
|---|---|
| System Type | Closed Center Pressure-Flow Compensating (PFC) |
| Remote Valves | 4 – 5 |
| Standard Pump Flow | 44 gpm (166.5 L/min) |
| High-Flow Option | 75 gpm (283.9 L/min) |
Hitch & Drawbar
| Item | Specification |
|---|---|
| Rear Hitch Type | Category III / IIIN |
| Hitch Control | Electronic lower-link draft sensing |
| Rear Lift Capacity | 12,900 – 17,900 lbs (5,851 – 8,119 kg) |
| Drawbar | Cat. 3 |
| Optional Drawbar | Cat. 4 |
Power Take-Off (PTO)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| Rear PTO Types | 1000 (1.75 in) |
| Optional PTO | 540 / 1000 (1.375 in) |
| Engine RPM @ 540 | 1800 rpm |
| Engine RPM @ 1000 | 1800 rpm |
| Front PTO | Independent (optional) |
| Front PTO Speed | 1000 rpm |
Dimensions & Weight
| Specification | Value |
|---|---|
| Wheelbase (PowerShift) | 136 in (345 cm) |
| Wheelbase (CVT) | 138 in (350 cm) |
| Operating Weight | 22,200 lbs (10,069 kg) |
| Front Tires | 420/85R34 |
| Rear Tires | 480/80R50 |
Cab & Operator Comfort
-
Enclosed cab with air-conditioning (standard)
-
Optional Comfort Ride™ cab suspension
-
IntelliSteer™ ready for precision guidance
-
Power steering and wet disc brakes
-
Designed for long working hours and reduced operator fatigue
Attachments
| Attachment | Availability |
|---|---|
| Front-End Loader | Compatible |
| Front Hitch & PTO | Optional |
| Heavy Implements | Plows, cultivators, planters, grain carts |
Electrical System
| Item | Specification |
|---|---|
| System Voltage | 12 V |
| Ground | Negative |
| Alternator Output | 200 A |
| Batteries | 2 × 12 V |
Serial Number Reference
| Year | Serial Prefix |
|---|---|
| 2015 | ZER |
| 2016 | ZFR |
| 2017 | ZGR |
| 2018 | ZHR |
| 2019 | ZJR |
| 2020 | ZKR |
| 2021 | ZLR |
Tests & Performance
Performance testing confirms strong drawbar efficiency and high PTO output, making the T8.320 suitable for the largest implements and demanding PTO-driven equipment.
Summary
The New Holland T8.320 is a versatile and powerful row-crop tractor combining a proven FPT 8.7L engine with modern transmission options and high-capacity hydraulics. For professional farmers and contractors seeking reliability, flexibility, and high horsepower, the T8.320 remains a top choice in the global used tractor and export market.
