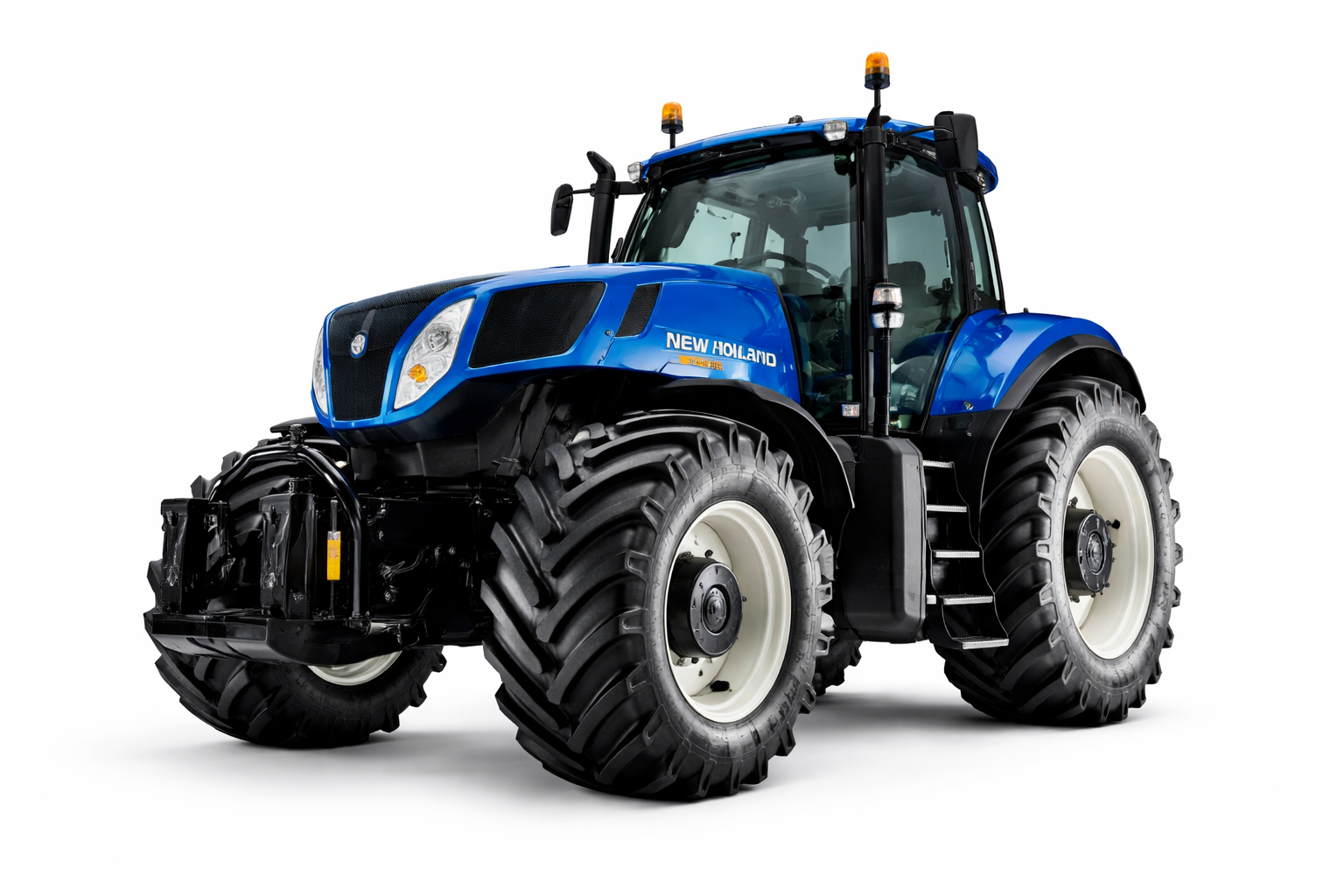

New Holland T8.300 – Specifications & Overview
The New Holland T8.300 is a high-horsepower row-crop tractor from the first-generation T8 Series, developed for large-scale farming and heavy field operations. Positioned between the T8.275 and T8.330, it offers a strong balance of power, durability, and efficiency.
Built in Racine, Wisconsin, USA, by New Holland (part of CNH Industrial), the T8.300 was produced from 2011 to 2014 and remains a popular model in the global used tractor market.
Key Information
| Item | Details |
|---|---|
| Model | New Holland T8.300 |
| Production Years | 2011 – 2014 |
| Model Years | 2011 – 2012 |
| Series | T8 Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturing Location | Racine, Wisconsin, USA |
| Drive | 4WD |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Model | FPT 8.7L |
| Configuration | 6-cylinder diesel |
| Displacement | 8.7 L |
| Emissions System | SCR with DEF |
| Fuel Tank Capacity | 168 gal (635.9 L) |
| DEF Capacity | 24 gal (90.8 L) |
Engine & PTO Power
| Measurement | Output |
|---|---|
| Gross Engine Power | 257 hp (191.6 kW) |
| Maximum Engine Power | 283 hp (211.0 kW) |
| PTO Power (claimed) | 215 hp (160.3 kW) |
| PTO Power (tested) | 275.83 hp (205.7 kW) |
| Drawbar Power (tested) | 191.67 hp (142.9 kW) |
Transmission
| Option | Description |
|---|---|
| 19-Speed | Full Power Shift |
| 18-Speed | Full Power Shift |
| 23-Speed | Creeper transmission |
These transmission options allow the T8.300 to handle a wide range of applications, from heavy tillage to precise low-speed operations.
Hydraulics
| Specification | Details |
|---|---|
| System Type | Closed Center Load Sensing (CCLS) |
| Rear Remote Valves | 4 – 6 |
| Standard Pump Flow | 35 gpm (132.5 L/min) |
| Total Hydraulic Flow | 42.5 gpm (160.9 L/min) |
| MegaFlow Option | 72.3 gpm (273.7 L/min) |
Hitch & Lift Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | Category III / IIIN |
| Rear Lift Capacity | 14,080 lbs (6,386 kg) |
| Optional Rear Lift | 16,375 lbs (7,427 kg) |
| Front Hitch | Optional |
Power Take-Off (PTO)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| Rear PTO Types | 1000 (1.75 in) |
| Optional PTO | 540 / 1000 (1.375 in) |
| Engine RPM @ 540 | 1804 rpm |
| Engine RPM @ 1000 | 1804 rpm |
| Front PTO | Independent (optional) |
| Front PTO Speed | 1000 rpm |
Dimensions & Weight
| Specification | Value |
|---|---|
| Wheelbase | 135.8 in (344 cm) |
| Operating Weight | 23,862 – 24,662 lbs |
| Tire Options | Various agricultural configurations |
Cab & Operator Environment
-
Enclosed cab (standard)
-
Power steering
-
Hydraulic wet disc brakes
-
Designed for long working hours and operator comfort
Electrical System
| Item | Specification |
|---|---|
| System Voltage | 12 V |
| Ground | Negative |
| Alternator Output | 200 A |
| Batteries | 2 × 12 V |
Tests & Performance
Independent performance testing confirms that the T8.300 delivers excellent drawbar efficiency and strong PTO output, making it suitable for large implements, grain carts, and high-demand PTO equipment.
Summary
The New Holland T8.300 is a powerful and dependable row-crop tractor built for large-scale agricultural operations. With its robust FPT 8.7L engine, multiple transmission options, and strong hydraulic capacity, it continues to be a trusted choice in international export markets.
For buyers seeking a reliable high-horsepower tractor with proven performance, the T8.300 remains a strong representative of the New Holland T8 Series.
