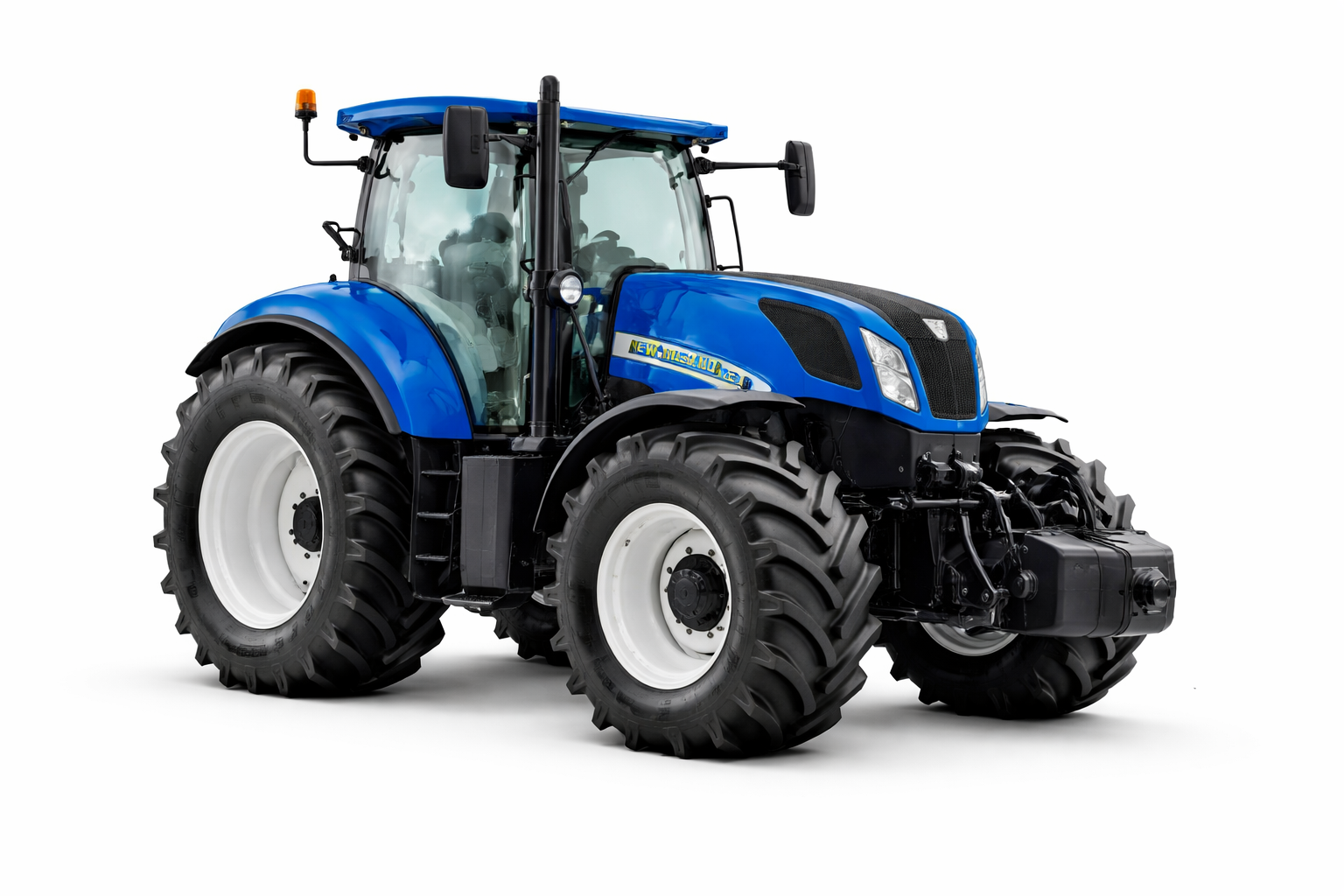

New Holland T7.315 – Specifications & Overview
The New Holland T7.315 is the flagship high-horsepower model in the T7 Series, engineered for demanding large-scale farming operations. With strong engine output, excellent drawbar performance, and advanced CVT technology, it is designed to handle heavy tillage, large planters, grain carts, and high-load PTO applications.
Manufactured by New Holland, part of CNH Industrial, the T7.315 has been in production since 2016 and represents one of the most powerful row-crop tractors in its class.
Key Information
| Item | Details |
|---|---|
| Model | New Holland T7.315 |
| Production Years | 2016 – present |
| Series | T7 Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturer | New Holland (CNH) |
| Original Price | USD 286,404 (2017) |
| Drive | 4WD |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Model | FPT 6.7L |
| Configuration | 6-cylinder diesel |
| Displacement | 6.7 L |
| Emissions System | SCR with DEF |
| Fuel Tank Capacity | 166 gal (628.3 L) |
| DEF Capacity | 25 gal (94.6 L) |
Engine & PTO Power
| Measurement | Output |
|---|---|
| Gross Engine Power | 300 hp (223.7 kW) |
| Maximum Engine Power | 313 hp (233.4 kW) |
| PTO Power (claimed) | 270 hp (201.3 kW) |
| PTO Power (tested) | 290.7 hp (216.8 kW) |
| Drawbar Power (tested) | 226.5 hp (168.9 kW) |
Transmission
| Item | Details |
|---|---|
| Type | Continuously Variable Transmission (CVT) |
| Drive System | Full-time 4WD |
| Final Drives | Inboard planetary |
| Steering | Power steering |
The CVT transmission ensures smooth, stepless speed control, improving fuel efficiency and productivity in both field and transport operations.
Hydraulics
| Specification | Details |
|---|---|
| System Type | Closed Center Load-Sensing (CCLS) |
| Rear Remote Valves | 4 or 5 |
| Mid Valves | Up to 3 (optional) |
| Hydraulic Pump Flow | 43.5 gpm (164.6 L/min) |
| High-Flow Option | 58 gpm (219.5 L/min) |
Hitch & Lift Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | Category III |
| Optional Hitch | Category IVN |
| Hitch Control | Electronic lower-link draft control |
| Rear Lift Capacity (24” / 610 mm) | 19,180 lbs (8,700 kg) |
Power Take-Off (PTO)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| Rear PTO Speeds | 540 / 540E / 1000 / 1000E |
| Engine RPM @ 540 | 1930 rpm |
| Engine RPM @ 1000 | 1853 rpm |
| Front PTO | Independent (optional) |
| Front PTO Speed | 1000 rpm |
Dimensions & Weight
| Specification | Value |
|---|---|
| Wheelbase | 117.9 in (299 cm) |
| Operating Weight | 22,707 lbs (10,299 kg) |
| Front Tire Size | 420/85R24 |
| Rear Tire Size | 480/80R50 |
Cab & Operator Comfort
-
Enclosed cab with air-conditioning (standard)
-
Optional Comfort Ride™ cab suspension
-
Wet disc brakes
-
Ergonomic controls with excellent visibility
Electrical System
| Item | Specification |
|---|---|
| System Voltage | 12 V |
| Ground | Negative |
| Alternator Output | 150 A |
| High-Output Alternator | 200 A (optional) |
Tests & Performance
Independent performance testing highlights the T7.315’s outstanding drawbar efficiency and PTO performance, confirming its suitability for high-demand agricultural tasks and heavy implements.
Summary
The New Holland T7.315 is a top-tier row-crop tractor offering exceptional horsepower, advanced CVT technology, and strong hydraulic capacity. For professional farmers and contractors seeking maximum performance and reliability, the T7.315 stands out as one of the most capable tractors in the T7 Series and an excellent choice for global export markets.
