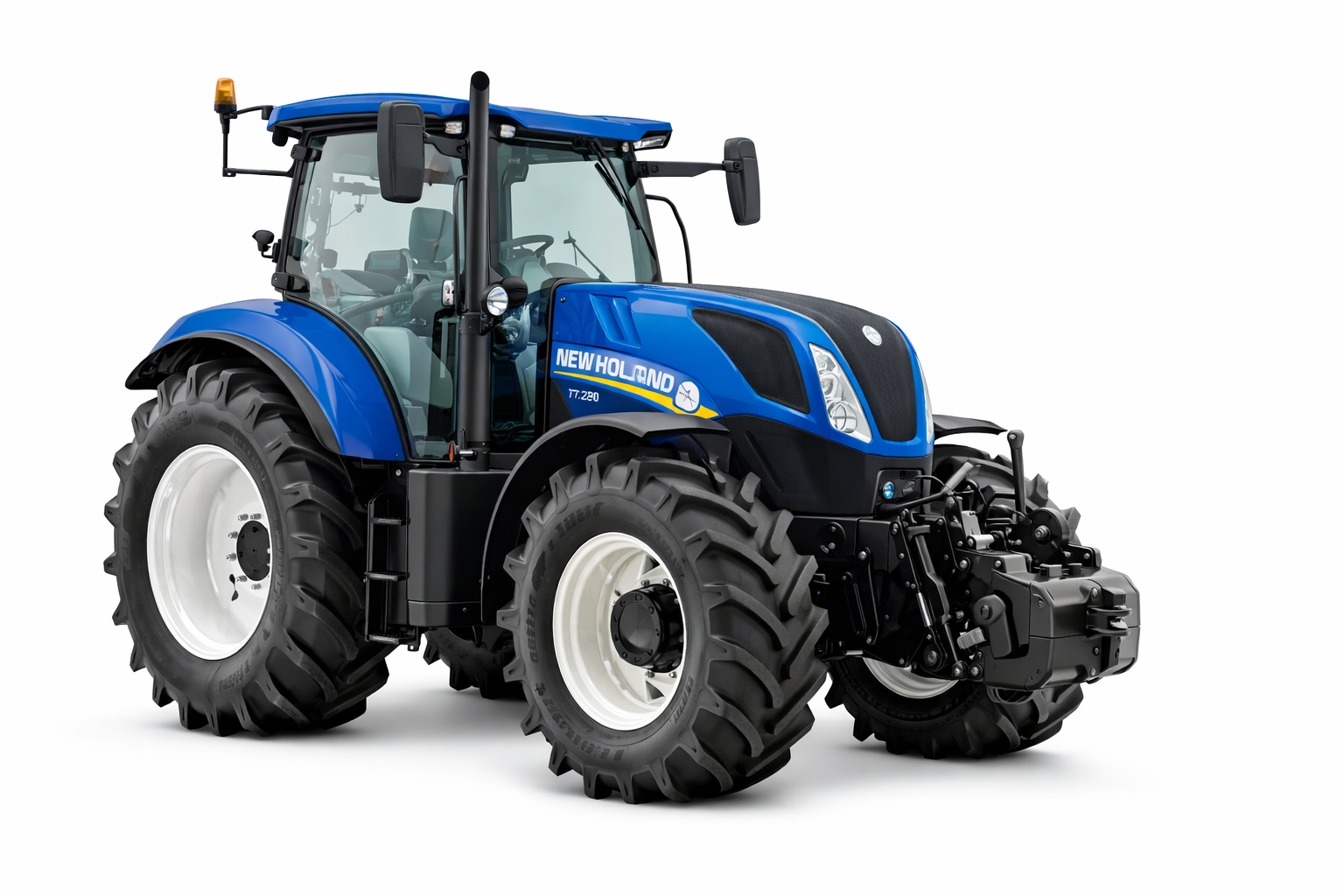

New Holland T7.290 – Specifications & Overview
The New Holland T7.290 is a high-output row-crop tractor positioned at the upper end of the T7 Series. Designed for large-scale agriculture, it delivers strong drawbar and PTO performance, advanced hydraulics, and excellent operator comfort.
Manufactured by New Holland, part of CNH Industrial, the T7.290 has been in production since 2016 and is widely used for heavy tillage, planting, grain cart work, and high-capacity PTO applications.
Key Information
| Item | Details |
|---|---|
| Model | New Holland T7.290 |
| Production Years | 2016 – present |
| Series | T7 Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturer | New Holland (CNH) |
| Original Price | USD 272,739 (2017) |
| Drive | 4WD |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Model | FPT 6.7L |
| Configuration | 6-cylinder diesel |
| Displacement | 6.7 L |
| Emissions | SCR with DEF |
| Fuel Tank Capacity | 166 gal (628.3 L) |
| DEF Capacity | 25 gal (94.6 L) |
Engine & PTO Power
| Measurement | Output |
|---|---|
| Gross Engine Power | 270 hp (201.3 kW) |
| Maximum Engine Power | 290 hp (216.3 kW) |
| PTO Power (claimed) | 240 hp (179.0 kW) |
| PTO Power (tested) | 270.1 hp (201.4 kW) |
| Drawbar Power (tested) | 202.4 hp (150.9 kW) |
Transmission
| Item | Details |
|---|---|
| Type | Continuously Variable Transmission (CVT) |
| Drive | Full-time 4WD |
| Final Drives | Inboard planetary |
| Steering | Power steering |
The CVT allows precise speed control under load, making the T7.290 ideal for both heavy fieldwork and road transport.
Hydraulics
| Specification | Details |
|---|---|
| System Type | Closed Center Load-Sensing (CCLS) |
| Rear Remote Valves | 4 or 5 |
| Mid Valves | Up to 3 (optional) |
| Pump Flow | 43.5 gpm (164.6 L/min) |
| High-Flow Option | 58 gpm (219.5 L/min) |
Hitch & Lift Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | Category III |
| Optional Hitch | Category IVN |
| Hitch Control | Electronic lower-link draft control |
| Rear Lift Capacity (24” / 610 mm) | 19,180 lbs (8,700 kg) |
Power Take-Off (PTO)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| Rear PTO Speeds | 540 / 540E / 1000 / 1000E |
| Engine RPM (540) | 1930 rpm |
| Engine RPM (1000) | 1853 rpm |
| Front PTO | Independent (optional) |
| Front PTO Speed | 1000 rpm |
Dimensions & Weight
| Specification | Value |
|---|---|
| Wheelbase | 117.9 in (299 cm) |
| Operating Weight | 22,707 lbs (10,299 kg) |
| Front Tires | 420/85R24 |
| Rear Tires | 480/80R50 |
Cab & Operator Comfort
-
Enclosed cab with air-conditioning (standard)
-
Optional Comfort Ride™ cab suspension
-
Wet disc brakes
-
Ergonomic controls and excellent all-round visibility
Electrical System
| Item | Specification |
|---|---|
| System Voltage | 12 V |
| Ground | Negative |
| Alternator Output | 150 A |
| High-Output Alternator | 200 A (optional) |
Tests & Performance
Independent testing confirms the T7.290’s strong drawbar efficiency and excellent PTO output, making it suitable for heavy implements, large planters, grain carts, and high-demand PTO equipment.
Summary
The New Holland T7.290 is a powerful, modern row-crop tractor built for professional farmers who demand high horsepower, advanced CVT performance, and strong hydraulic capacity. With its reliable FPT 6.7L engine and robust drivetrain, the T7.290 is a proven solution for intensive agricultural operations worldwide.
For buyers seeking a high-horsepower tractor for export, the T7.290 represents one of the most capable models in the T7 Series.
