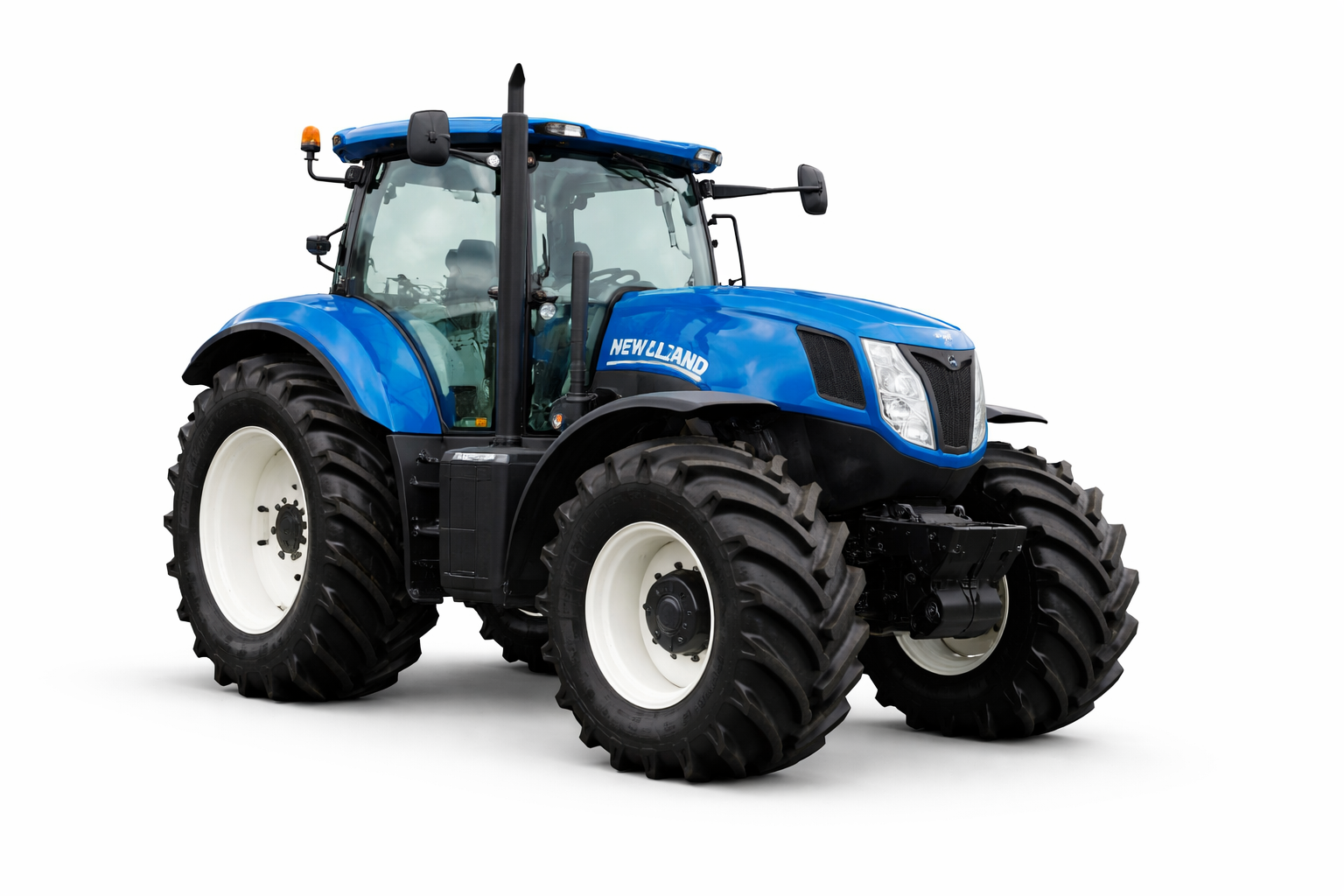

New Holland T7.270 – Specifications & Overview
The New Holland T7.270 is a high-horsepower row-crop tractor designed for large-scale farming and demanding field operations. Built in Basildon, England, this model belongs to the T7 Series and is known for its balance of power, fuel efficiency, and advanced operator comfort.
Manufactured by New Holland (part of CNH), the T7.270 has been produced from 2011 to 2024, serving global markets with reliable performance in tillage, planting, transport, and PTO-driven work.
Key Information
| Item | Details |
|---|---|
| Model | New Holland T7.270 |
| Production Years | 2011 – 2024 |
| Series | T7 Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturing Location | Basildon, England |
| Drive | 4WD (Four-Wheel Drive) |
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Model | FPT 6.7L |
| Configuration | 6-cylinder diesel |
| Displacement | 6.7 L |
| Emissions | DEF / SCR system |
| Fuel Tank Capacity | 104 gal (393.6 L) |
| DEF Capacity | 13 gal (49.2 L) |
Engine Power
| Measurement | Output |
|---|---|
| Gross Engine Power | 228 hp (170.0 kW) |
| Maximum Engine Power | 269 hp (200.6 kW) |
| PTO Power (claimed) | 195 hp (145.4 kW) |
| PTO Power (tested) | 218.5 hp (162.9 kW) |
| Drawbar Power (tested) | 165.2 hp (123.2 kW) |
Transmission
| Item | Details |
|---|---|
| Type | Continuously Variable Transmission (CVT) |
| Operation | Smooth stepless speed control |
| Application | Ideal for precision fieldwork and transport |
Hydraulics
| Specification | Details |
|---|---|
| System Type | Closed Center Load Sensing (CCLS) |
| Rear Remote Valves | 3 – 5 |
| Mid Valves | Up to 3 (optional) |
| Hydraulic Pump Flow | 32 gpm (121.1 L/min) |
| High-Flow Option | 39.5 gpm (149.5 L/min) |
| Steering Flow | 17 gpm (64.3 L/min) |
Hitch & Lift Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | Category III / II |
| Hitch Control | Electronic Draft Control |
| Rear Lift (at ends) | 12,787 lbs (5,800 kg) |
| Rear Lift (at 24 in / 610 mm) | 10,746 lbs (4,874 kg) |
| Front Hitch | Optional |
| Front Lift Capacity | 8,344 lbs (3,784 kg) |
Power Take-Off (PTO)
| Item | Details |
|---|---|
| Rear PTO Type | Independent |
| Rear PTO Speeds | 540 / 1000 / 540E / 1000E |
| Front PTO | Optional, Independent |
| Front PTO Speed | 1000 rpm |
Dimensions & Weight
| Specification | Value |
|---|---|
| Wheelbase | 113.5 in (288 cm) |
| Wheelbase (SuperSteer) | 117.2 in (297 cm) |
| Operating Weight | 15,322 – 16,094 lbs |
| Rear Tire Size | 20.8R42 |
Cab & Operator Environment
-
Horizon Cab with air-conditioning (standard)
-
Optional IntelliSteer™ auto-guidance
-
Hydrostatic power steering
-
Hydraulic wet disc brakes
-
Optional engine exhaust brake
-
Optional hydraulic or pneumatic trailer brakes
Electrical System
| Item | Specification |
|---|---|
| System Voltage | 12 V |
| Ground | Negative |
| Alternator Output | 150 A (200 A optional) |
| Battery Capacity | 176 Ah |
| Cold Cranking Amps | 1300 CCA |
Attachments
| Attachment | Availability |
|---|---|
| Front-End Loader | Compatible |
| Front Hitch & PTO | Optional |
| Agricultural Implements | Plows, cultivators, seeders, trailers |
Summary
The New Holland T7.270 is a powerful and technologically advanced row-crop tractor, ideal for professional farmers who require strong PTO output, efficient CVT performance, and high hydraulic capacity. Its robust FPT engine, comfortable cab, and wide attachment compatibility make it a dependable choice for intensive agricultural operations worldwide.
If you are looking for a reliable high-horsepower tractor for export, the New Holland T7.270 remains one of the most proven models in its class.
