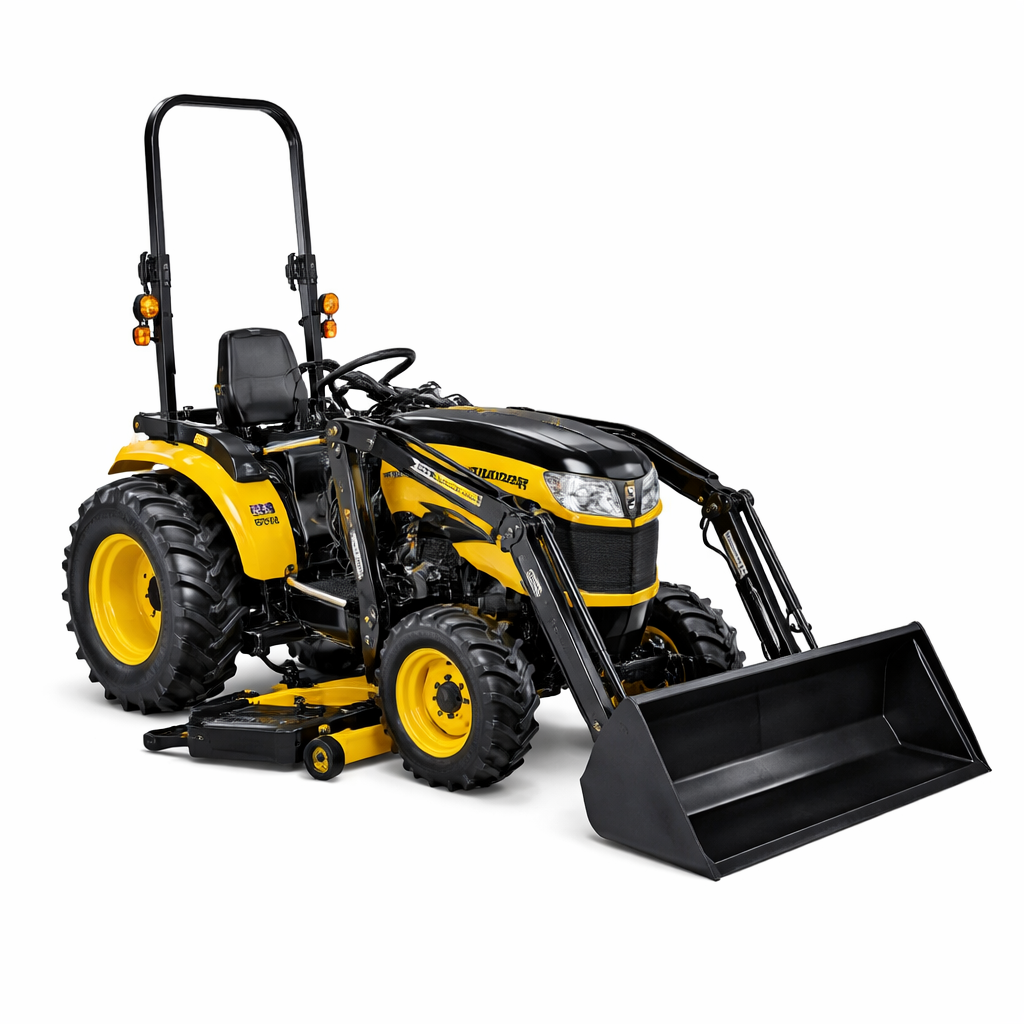

Yanmar SX3100 is a compact utility tractor designed for farmers and landowners who need versatility, easy operation, and reliable Japanese engineering.
This model has been in production since 2012, following earlier versions from 2010–2011.
As a result, the SX3100 offers a refined design with improved usability while keeping a compact body size.
Since 2006, EVERY FARM TRACTOR has exported Japanese used tractors to over 100 countries. Therefore, buyers worldwide can source this model with confidence.
Series Position
The SX3100 stands as a single-model series focused on balanced power and control.
| Model | Engine Power |
|---|---|
| SX3100 | 31.2 hp |
Because of this power range, the SX3100 fits perfectly between sub-compact and larger utility tractors.
Engine Specifications
The SX3100 is equipped with a proven Yanmar diesel engine that delivers strong torque and fuel efficiency.
| Item | Specification |
|---|---|
| Engine manufacturer | Yanmar |
| Engine type | Diesel |
| Cylinders | 3 |
| Displacement | 1.6 L |
| Gross engine power | 31.2 hp (23.3 kW) |
| Net engine power | 30.0 hp (22.4 kW) |
| PTO power (claimed) | 23.5 hp (17.5 kW) |
| Fuel tank capacity | 26.9 L |
Thanks to this engine design, the SX3100 performs well in continuous field and PTO work.
Transmission
Hydrostatic transmission ensures smooth and simple operation.
| Item | Specification |
|---|---|
| Transmission type | Hydrostatic |
| Drive system | 4WD |
| Final drive | Bevel gear |
Consequently, operators can control speed precisely without shifting gears.
Hydraulics
The hydraulic system supports a wide range of implements.
| Item | Specification |
|---|---|
| System type | Open center |
| Pump flow | 18.2 L/min |
| Steering flow | 20.1 L/min |
| Total flow | 38.2 L/min |
Therefore, loader and mower operations remain smooth and responsive.
Three-Point Hitch
The rear hitch offers solid lifting capacity for compact implements.
| Item | Specification |
|---|---|
| Hitch type | Category 1 |
| Control system | Position control |
| Rear lift capacity (610 mm) | 548 kg |
This capacity allows the SX3100 to handle blades, tillers, and other attachments with stability.
PTO (Power Take-Off)
The PTO system supports both rear and mid-mounted equipment.
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| Rear PTO speed | 540 rpm |
| Rear PTO engine RPM | 540 @ 2495 rpm |
| Mid PTO | Independent |
| Mid PTO speed | 2100 rpm |
| Mid PTO engine RPM | 2100 @ 2500 rpm |
As a result, the SX3100 works efficiently with mower decks and PTO-driven tools.
Dimensions & Weight
Compact size and moderate weight provide excellent maneuverability.
| Item | Specification |
|---|---|
| Wheelbase | 165 cm |
| Operating weight | 920 kg |
Because of this design, the SX3100 performs well in tight spaces and small fields.
Mechanical Features
| Item | Specification |
|---|---|
| Steering | Hydraulic power |
| Brakes | Wet disc |
| ROPS | Two-post |
Compatible Attachments
The SX3100 supports many useful attachments.
-
60-inch mid-mount mower deck
-
Front-end loader
-
Backhoe
Thus, one tractor can cover mowing, material handling, and light excavation.
