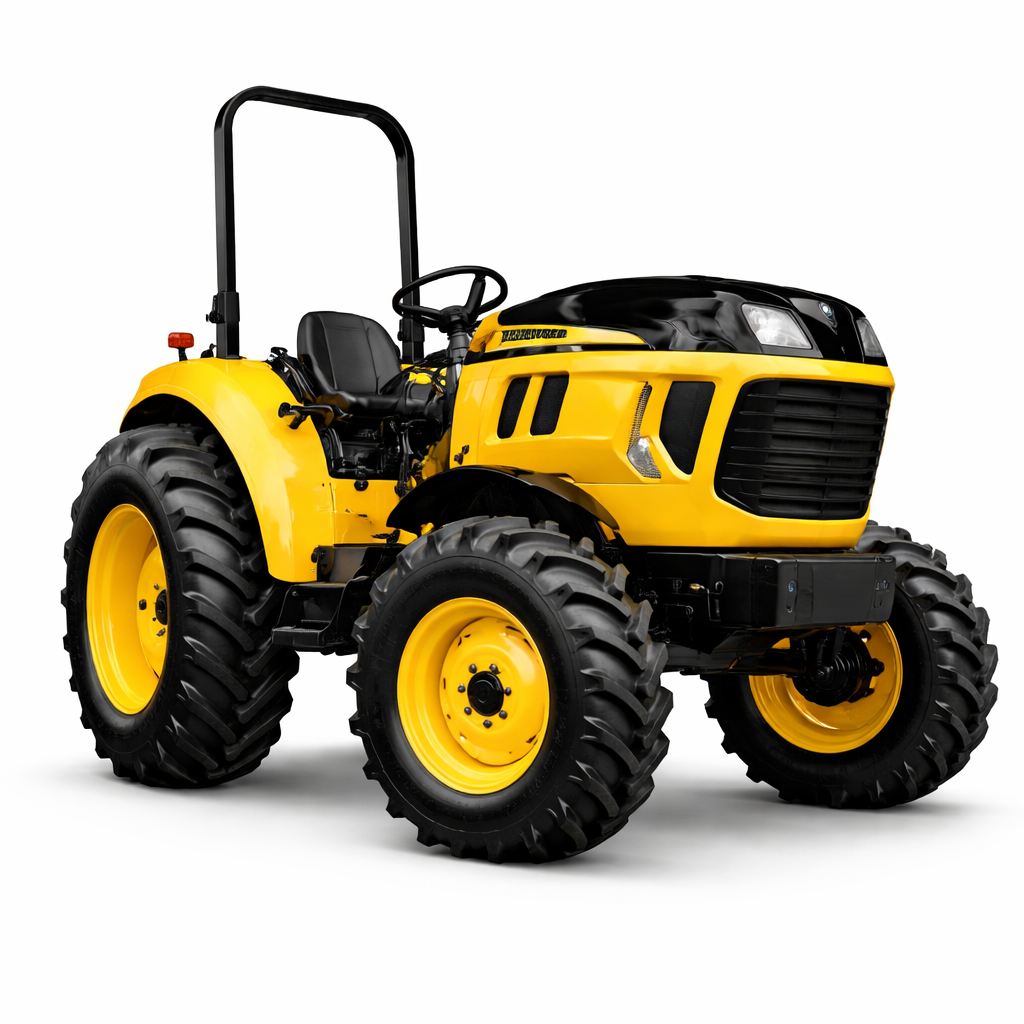

Yanmar LX4900 is the most powerful model in the LX hydrostatic lineup, designed for users who need strong performance with easy and precise control.
Released in 2012, this compact utility tractor combines a high-output diesel engine with hydrostatic transmission, making it ideal for loader work, PTO operations, and demanding field tasks.
As a result, the LX4900 suits professional farmers, contractors, and export buyers seeking reliable Japanese engineering.
Since 2006, EVERY FARM TRACTOR has exported Japanese used tractors to over 100 countries. Therefore, global buyers can purchase this model with confidence and full support.
Series Position & Lineup
The LX4900 belongs to the proven LX Series, known for durability and operator comfort.
| Model | Engine Power |
|---|---|
| LX4500 | 45.0 hp |
| LX4900 | 48.5 hp |
Because of its higher horsepower, the LX4900 is often chosen for heavier PTO and loader applications.
Variants
Yanmar offered different transmission types within the LX lineup.
| Variant | Description |
|---|---|
| LX490 | Power shuttle |
| LX4900 | Hydrostatic transmission |
Thus, the LX4900 focuses on smooth pedal control and reduced operator fatigue.
Engine Specifications
The LX4900 uses a compact yet powerful Yanmar diesel engine designed for efficiency and long service life.
| Item | Specification |
|---|---|
| Engine manufacturer | Yanmar |
| Engine type | Diesel |
| Cylinders | 4 |
| Displacement | 2.0 L |
| Gross engine power | 48.5 hp (36.2 kW) |
| PTO power (claimed) | 35 hp (26.1 kW) |
Thanks to strong torque delivery, the engine performs well during continuous PTO and hydraulic work.
Transmission
Hydrostatic transmission improves ease of operation and precision.
| Item | Specification |
|---|---|
| Transmission type | Hydrostatic |
| Drive system | 4WD |
| Final drive | Planetary |
Consequently, operators can adjust speed smoothly without stopping or shifting gears.
Capacity
| Item | Specification |
|---|---|
| Fuel tank | 45.0 L |
| Front axle oil | 8.8 L |
Hydraulics
The hydraulic system supports a wide range of agricultural attachments.
| Item | Specification |
|---|---|
| System type | Open center |
| Hydraulic valves | 2–3 |
| Pump flow | 32.9 L/min |
| Steering flow | 24.6 L/min |
Therefore, loader work and rear implements operate smoothly and consistently.
Three-Point Hitch
The rear hitch offers strong lifting capability for its class.
| Item | Specification |
|---|---|
| Hitch type | Category 1 |
| Control system | Position control |
| Rear lift capacity (610 mm) | 1,251 kg |
This capacity allows the LX4900 to handle heavy implements with confidence.
PTO (Power Take-Off)
The PTO system supports multiple applications.
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| PTO speed | 540 rpm |
| PTO clutch | Electro-hydraulic |
| Mid PTO | Optional |
As a result, the tractor adapts easily to mowing, tilling, and other PTO-driven tasks.
Dimensions & Tires
Compact dimensions combined with solid weight provide excellent stability.
| Item | Specification |
|---|---|
| Wheelbase | 189 cm |
| Operating weight | 1,641 kg |
| Front tire | 8-16 |
| Rear tire | 14.9-24 |
Because of this balance, the LX4900 performs well on uneven terrain and slopes.
Electrical System
| Item | Specification |
|---|---|
| Battery voltage | 12 V |
| Ground | Negative |
Compatible Attachments
The LX4900 supports many popular implements.
-
Front-end loader
-
Backhoe
-
Rotary mower
-
Tiller
-
Box blade
Thus, one tractor can handle farming, land maintenance, and light construction tasks.
