Iseki TK25 Compact Utility Tractor – Specifications & Overview
The Iseki TK25 is a compact utility tractor produced from 1996 to 2001 as part of the TK Series by Iseki.
Positioned above the TK21, the TK25 offers similar power output with a larger displacement engine and increased fuel capacity, making it suitable for longer working hours in orchards, small farms, and general-purpose agricultural tasks.
Its compact size, reliable Isuzu diesel engine, and simple mechanical design make the TK25 a practical and easy-to-maintain tractor for export markets.
Production Information
| Item | Details |
|---|---|
| Manufacturer | Iseki |
| Model | TK25 |
| Series | TK Series |
| Production Years | 1996 – 2001 |
| Tractor Type | Compact Utility Tractor |
| Series Lineup | TK21 / TK25 / TK29 |
Engine
The TK25 is powered by a proven Isuzu diesel engine, known for durability and fuel efficiency in compact tractors.
| Item | Specification |
|---|---|
| Engine Manufacturer | Isuzu |
| Engine Type | Diesel |
| Displacement | 1.5 L |
| Cylinders | 3-cylinder |
| Rated Engine Power | 24.7 hp (18.4 kW) |
| Fuel Tank Capacity | 7.9 gal (29.9 L) |
Transmission
| Item | Specification |
|---|---|
| Transmission Type | Mechanical |
| Number of Gears | 16-speed |
| Drive System | Four-wheel drive (4WD) |
Power & Mechanical Features
| Item | Details |
|---|---|
| ROPS | Two-post folding ROPS |
| Cab | Optional |
| Design Focus | Compact size with improved fuel capacity |
| Maintenance | Simple mechanical layout |
Tractor Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | JIS Category 1 |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Rear PTO |
| PTO Speed | 540 rpm (1.375 in) |
| Engine RPM @ PTO | 565 / 824 / 1060 / 1244 @ 2500 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 64.6 in (164 cm) |
| Operating Weight | 2,701 – 3,031 lbs |
| Front Tires | 7-14 |
| Rear Tires | 9.5-24 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12 V |
| Battery Capacity | 55 Ah |

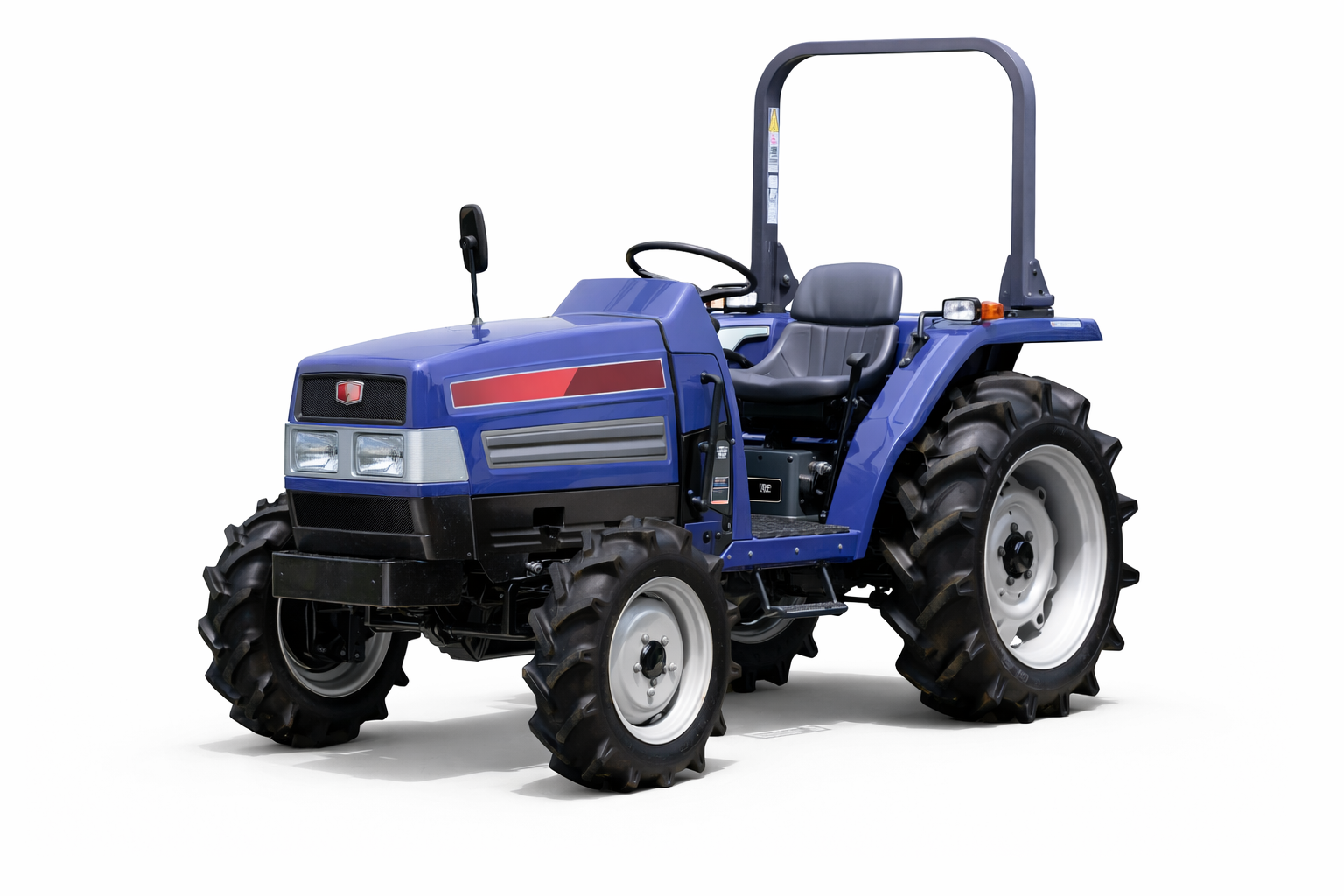

Photos
Photos of the Iseki TK25 are available depending on configuration (ROPS or cab). Actual exported units may vary in condition, attachments, and specifications.
Summary
The Iseki TK25 is a well-balanced Japanese compact utility tractor featuring a reliable 1.5L Isuzu diesel engine, 16-speed transmission, and 4WD capability. With increased fuel capacity over the TK21 and optional cab availability, it is an excellent choice for orchard work, small farms, and light agricultural operations worldwide.
