Iseki TJ75 Utility Tractor – Specifications & Overview
The Iseki TJ75 is a heavy-duty utility tractor produced from 2003 to 2009 as part of the TJ Series by Iseki.
Designed for professional farming operations, the TJ75 delivers strong torque, advanced power-shift transmissions, and excellent hydraulic capacity. It is suitable for field cultivation, rotary tilling, transport, and PTO-driven implements. Both wheel and half-track variants were offered to adapt to different terrain conditions.
Production Information
| Item | Details |
|---|---|
| Manufacturer | Iseki |
| Model | TJ75 |
| Series | TJ Series |
| Production Years | 2003 – 2009 |
| Tractor Type | Utility Tractor |
| Variants | TJ75 (wheel), TJ75C (half-track) |
Engine
The TJ75 is powered by a reliable Iseki diesel engine designed for long operating hours and stable performance under heavy loads.
| Item | Specification |
|---|---|
| Engine Model | Iseki diesel |
| Displacement | 3.0 L |
| Cylinders | 4-cylinder |
| Fuel Type | Diesel |
| Rated Engine Power | 74 hp (55.2 kW) |
| Fuel Tank Capacity | 23.8 gal (90.1 L) |
Transmission
Multiple power-shift transmission options allow smooth operation and efficient speed control in various working conditions.
| Option | Specification |
|---|---|
| Transmission Type | Power shift |
| Gears (Option 1) | 24-speed (8-speed power shift) |
| Gears (Option 2) | 12-speed (4-speed power shift) |
| Drive System | 2WD or 4WD |
| Differential Lock | Mechanical rear |
Power & Mechanical Features
| Item | Details |
|---|---|
| Power Steering | Standard |
| Brakes | Wet disc brakes |
| Cab | Enclosed cab with air-conditioning |
| Ground Clearance | Designed for heavy field use |
Hydraulics
| Item | Specification |
|---|---|
| Total Hydraulic Flow | 7.7 gpm (29.1 L/min) |
| Rear Hitch Type | JIS Category 1 / 2 |
| Rear Lift Capacity (ends) | 5,732 lbs (2,600 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent rear PTO |
| PTO Speed | 540 rpm (1.375 in) |
| Engine RPM @ PTO | 566 / 733 / 1061 @ 2600 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 84.7 in (215 cm) |
| Operating Weight | 5,600 lbs (2,540 kg) |
| Front Tires | 9.5-22 |
| Rear Tires | 12.4-36 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12 V |
| Battery Capacity | 72 Ah |
Photos

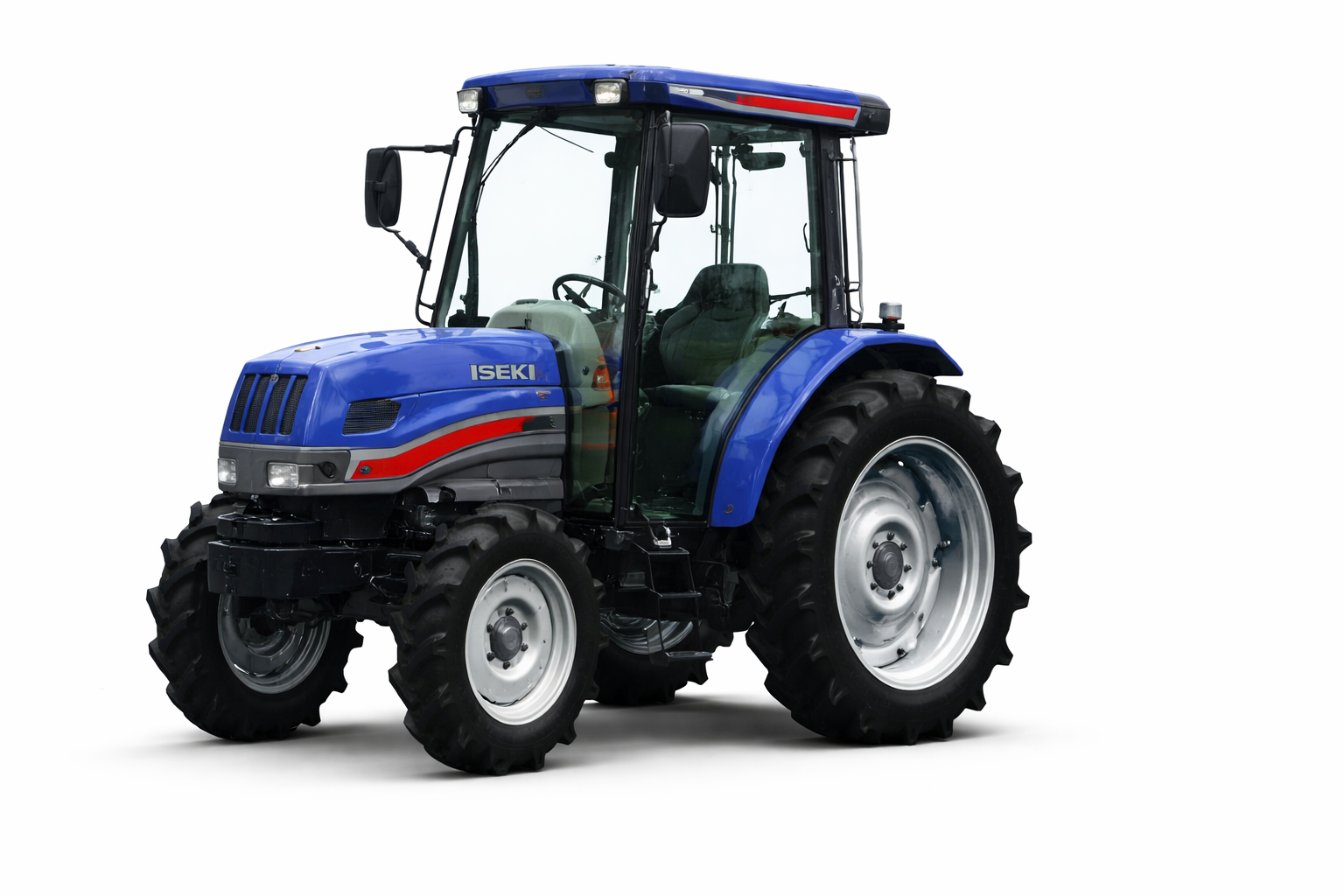

Currently, official catalog photos of the Iseki TJ75 are limited. The image examples above are provided for visual reference of the TJ Series and similar configurations. Actual exported units may vary depending on condition, attachments, and variant (wheel or half-track).
Summary
The Iseki TJ75 stands out as a robust Japanese utility tractor with a powerful 74 hp engine, advanced power-shift transmissions, and high hydraulic lifting capacity. Its durability and versatility make it a strong choice for professional farmers and contractors seeking reliable Japanese machinery for export markets worldwide.
