Kubota GL417 Tractor Specifications & Overview
The Kubota GL417 is a compact utility tractor produced from 1996 to 2001 within Kubota’s highly regarded GL Series. Positioned above the GL367 and below the GL467, the GL417 delivers a notable increase in power while retaining a compact footprint and excellent maneuverability.
Featuring a 41.4 HP 4-cylinder diesel engine, optional 16-speed gear or power shift transmission, and four-wheel drive, the GL417 is designed for heavier farm work such as deep tillage, rotary cultivation, mowing, and transport tasks. Its robust construction and simple mechanical layout make it a dependable choice for long-term agricultural use and international export markets.
GL Series Position
| GL Series Model | Production Years | Engine Output |
|---|---|---|
| GL367 | 1996–2001 | 26.5 kW |
| GL417 | 1996–2001 | 30.9 kW (41.4 HP) |
| GL467 | – | 33.8 kW |
| GL418 (earlier) | 1993–1995 | – |
Engine
| Item | Specification |
|---|---|
| Engine model | Kubota diesel |
| Displacement | 2.2 L |
| Cylinders | 4-cylinder |
| Aspiration | Naturally aspirated |
| Rated engine power | 41.4 hp / 30.9 kW |
| Fuel type | Diesel |
| Fuel tank capacity | 9.25 gal / 35.0 L |
The 2.2-liter Kubota diesel engine provides strong torque, smooth operation, and excellent durability, ideal for demanding field work and extended operating hours.
Transmission
| Item | Specification |
|---|---|
| Transmission options | 16-speed gear / 16-speed power shift |
| Drive system | 4WD |
| Steering | Power steering |
| Brakes | Mechanical wet disc |
The availability of a power shift transmission reduces clutch usage and improves productivity, especially during repetitive or heavy-duty operations.
Power & PTO
| Item | Specification |
|---|---|
| Engine power | 41.4 hp / 30.9 kW |
| PTO power (claimed) | 37.8 hp / 28.2 kW |
| Rear PTO type | 540 rpm (1.375 in) |
| PTO engine RPM | 544 / 806 / 1252 rpm @ 2600 rpm |
| PTO rotation | Standard & reverse |
The high PTO output allows the GL417 to operate larger rotary tillers, mowers, balers, and other PTO-driven implements with confidence.
Hydraulics & Hitch
| Item | Specification |
|---|---|
| Hydraulic pump flow | 6.3 gpm / 23.8 LPM |
| Rear hitch type | JIS Category 1 |
| Rear lift capacity | 1,907 lbs / 865 kg |
The hydraulic system delivers reliable lifting power and smooth implement control for medium to heavy-duty attachments.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 72.1 in / 183 cm |
| Operating weight | 3,175 – 3,616 lbs |
| Front tires | 8-16 |
| Rear tires | 13.6-26 |
The longer wheelbase and heavier rear tires improve traction, stability, and performance during intensive fieldwork and transport.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Operator & Safety
| Item | Specification |
|---|---|
| ROPS | Two-post ROPS |
| Cab | Optional |

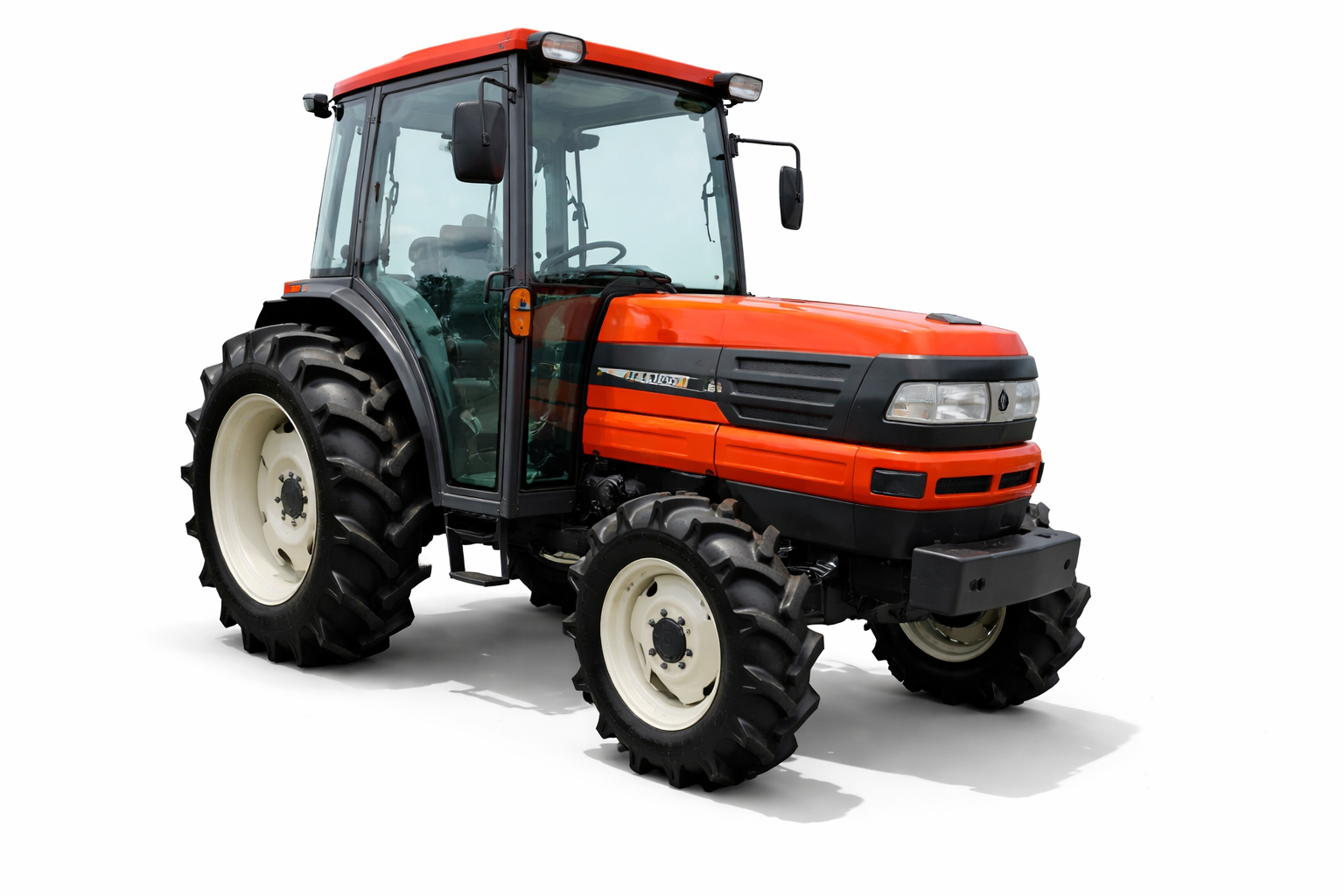

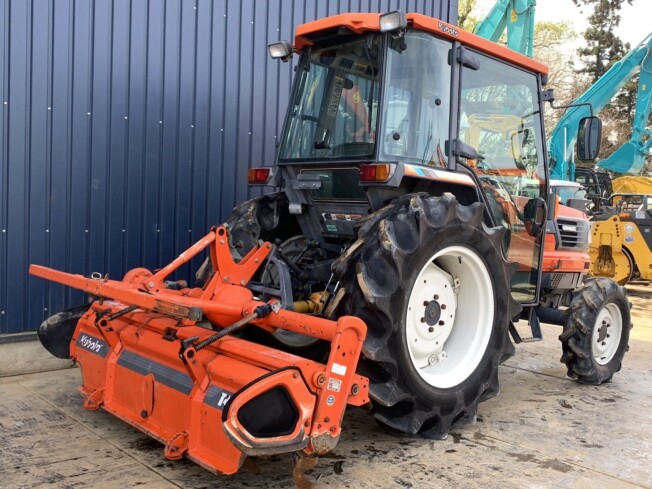

Photos
Due to the production period of the Kubota GL417, official reference photos are limited. In design and layout, it closely resembles other higher-output GL Series tractors, sharing the same robust chassis, operator platform, and GL Series styling.
Summary
The Kubota GL417 is a powerful 41.4HP compact utility tractor that offers an excellent balance of size, strength, and versatility. With its durable 4-cylinder diesel engine, flexible transmission options, and strong PTO and hydraulic performance, it is well suited for demanding farm operations and global export markets.
