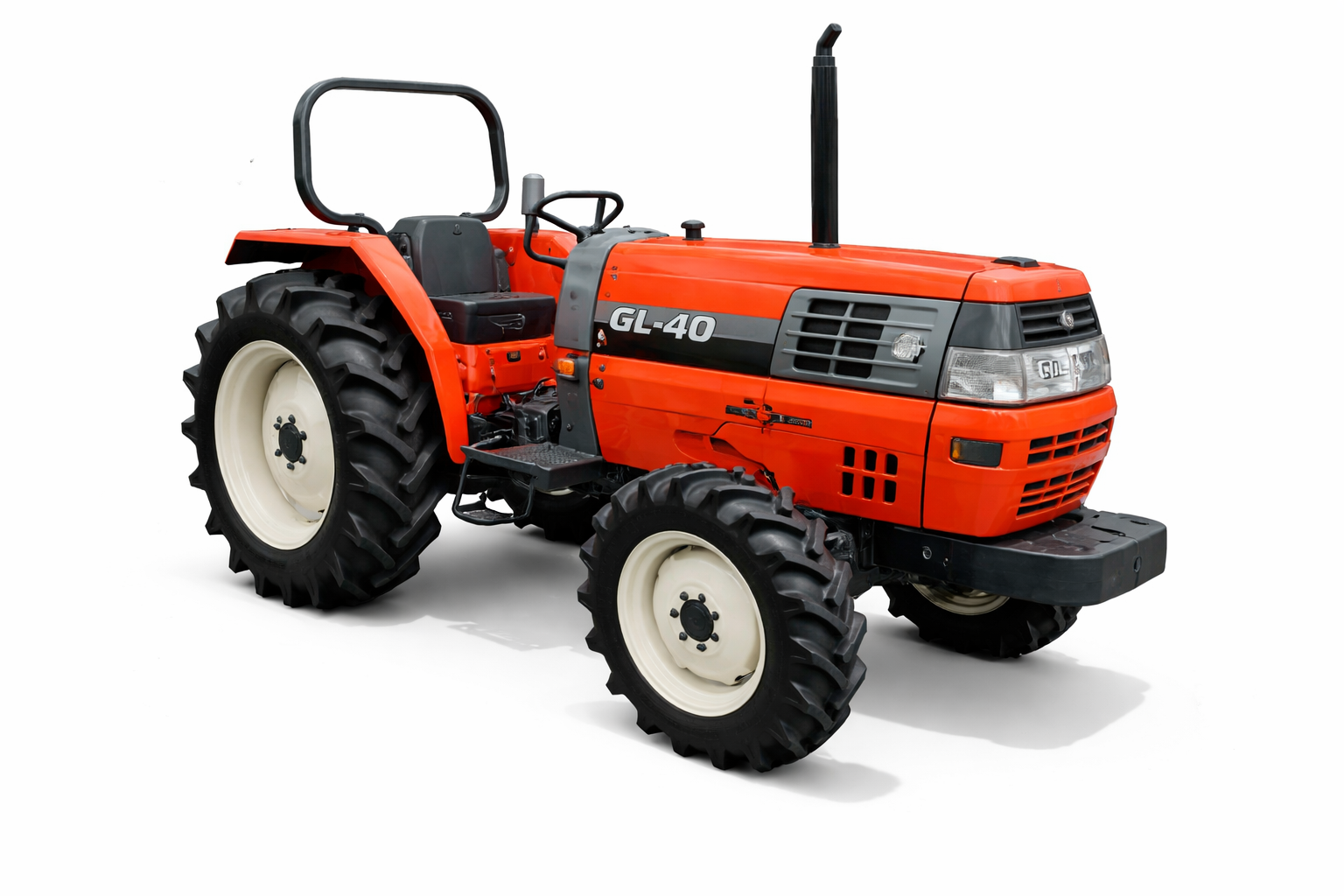

Kubota GL-40 Tractor Specifications & Overview
The Kubota GL-40 is a compact utility tractor produced between 1991 and 1995 as part of Kubota’s early GL Series lineup. Positioned above the GL-35 and below the GL-43, the GL-40 was designed to offer increased power while maintaining a compact body suitable for diverse farm operations.
With a 40 horsepower 4-cylinder diesel engine, four-wheel drive, and a 16-speed transmission, the GL-40 delivers reliable performance for rotary tilling, plowing, mowing, and transport work. Its robust mechanical structure, combined with a large fuel tank, makes it especially well suited for long working hours and overseas agricultural markets.
GL Series Position
| GL Series Model | Production Years | Engine Output |
|---|---|---|
| GL-35 | 1991–1995 | 26.1 kW |
| GL-40 | 1991–1995 | 29.8 kW (40 HP) |
| GL-43 | – | 32.1 kW |
| GL-400 | 1995–1998 | – |
Engine
| Item | Specification |
|---|---|
| Engine model | Kubota diesel |
| Displacement | 2.2 L |
| Cylinders | 4-cylinder |
| Aspiration | Naturally aspirated |
| Rated engine power | 40 hp / 29.8 kW |
| Fuel type | Diesel |
| Fuel tank capacity | 13.2 gal / 50.0 L |
The 2.2-liter Kubota diesel engine is valued for its strong torque characteristics, smooth operation, and durability. The large 50-liter fuel tank allows extended operation without frequent refueling.
Transmission
| Item | Specification |
|---|---|
| Transmission type | Mechanical |
| Number of speeds | 16-speed |
| Drive system | 4WD |
| Steering | Power steering |
The wide 16-speed range provides excellent flexibility, enabling operators to select optimal speeds for both fieldwork and transport tasks.
Power & PTO
| Item | Specification |
|---|---|
| Engine power | 40 hp / 29.8 kW |
| Rear PTO type | 540 rpm (1.375 in) |
| PTO engine RPM | 585 / 789 / 961 / 1263 rpm @ 2600 rpm |
| PTO rotation | Standard & reverse |
The multiple PTO speed settings allow the GL-40 to operate a wide variety of implements, including rotary tillers, mowers, and sprayers.
Hitch
| Item | Specification |
|---|---|
| Rear hitch type | JIS Category 1 |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 72.8 in / 184 cm |
| Operating weight | 3,527 – 3,946 lbs |
| Front tires | 8-18 |
| Rear tires | 12.4-28 |
The heavier frame and balanced dimensions improve traction, stability, and performance during demanding field operations.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Operator & Safety
| Item | Specification |
|---|---|
| ROPS | Two-post ROPS |
| Cab | Optional |
Photos
Due to its early-1990s production period, official photos of the Kubota GL-40 are limited. In design and layout, it closely resembles other early GL Series tractors and later evolved into models such as the GL-400.
Summary
The Kubota GL-40 is a dependable 40HP compact utility tractor that balances power, size, and durability. With its proven 4-cylinder diesel engine, 16-speed transmission, large fuel tank, and strong PTO capability, it remains an excellent option for farmers and international buyers seeking reliable Japanese agricultural machinery.
