Massey Ferguson 360 – Overview
The Massey Ferguson 360 is a mid-range utility tractor from the well-known 300 Series, designed for reliable daily farm work, loader applications, and PTO-driven implements.
Produced between 1987 and 1991 and built in Coventry, England, the MF 360 offers proven Perkins diesel power, multiple transmission choices, and strong, tested performance figures.
Thanks to its balance of power, simplicity, and durability, the MF 360 remains popular in many global farming regions.
Production Information
| Item | Details |
|---|---|
| Model | Massey Ferguson 360 |
| Series | 300 Series |
| Production Years | 1987 – 1991 |
| Model Years | 1987 – 1988 |
| Tractor Type | Utility Tractor |
| Manufacturer | Massey Ferguson |
| Built In | Coventry, England |
| Original Price (1988) | $18,000 (2WD) / $25,000 (4WD) |
Series Map (Power Class)
| Model | Engine Power |
|---|---|
| MF 360 | 57.0 hp |
| MF 375 | 67.0 hp |
| Predecessor | MF 254 (1982–1987) |
Engine Specifications
| Item | Specification |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Type | Diesel |
| Displacement | 2.5 L |
| Cylinders | 3 |
| Fuel Tank Capacity | 18 gal (68.1 L) |
Power Output
| Item | Output |
|---|---|
| Engine Power | 57 hp (42.5 kW) |
| PTO Power (claimed) | 51 hp (38.0 kW) |
| Drawbar Power (tested) | 37.4 hp (27.9 kW) |
| PTO Power (tested) | 49.2 hp (36.7 kW) |
These tested figures highlight the MF 360’s strong real-world PTO and drawbar performance.
Transmission Options
| Transmission | Details |
|---|---|
| Gear | 8-speed |
| Mechanical Shuttle | 6-speed |
| Synchromesh | 12-speed |
These options allow flexibility for both field work and loader operations.
Mechanical Features
| Item | Specification |
|---|---|
| Drive | 2WD or 4WD |
| Final Drives | Planetary |
| Steering | Power steering |
| Brakes | Wet disc |
| ROPS | Two-post |
| Canopy | Optional |
Hydraulic System
| Item | Specification |
|---|---|
| Type | Open center |
| System Pressure | 3,000 psi (206.8 bar) |
| Pump Flow (Aux) | 9.2 gpm (34.8 L/min) |
| Pump Flow (Hitch) | 4.5 gpm (17.0 L/min) |
| Total Flow | 13.7 gpm (51.9 L/min) |
Hitch & Lifting Capacity
| Item | Specification |
|---|---|
| Rear Hitch Type | II / I |
| Hitch Control | Position & draft control |
| Rear Lift Capacity | 3,890 lbs (1,764 kg) |
| Rear Lift (at ends) | 4,729 lbs (2,145 kg) |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Live |
| Optional PTO | Independent |
| Rear PTO Speed | 540 rpm (1.375) |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 76.1 in (193 cm) |
| Wheelbase (4WD) | 83.3 in (211 cm) |
| Operating Weight | 4,910 – 5,346 lbs |
| Front Tires | 6.00-16 |
| Rear Tires (2WD) | 13.6-28 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 45 amps |
| Battery Voltage | 12 V |
| Battery CCA | 420 |
Serial Number Location
The serial number plate is located on the right side of the tractor, near the brake pedals, making identification straightforward for export and documentation.
Photos
Documented examples include a 1988 Massey Ferguson 360 in Norway, demonstrating the tractor’s continued operation in demanding climates.

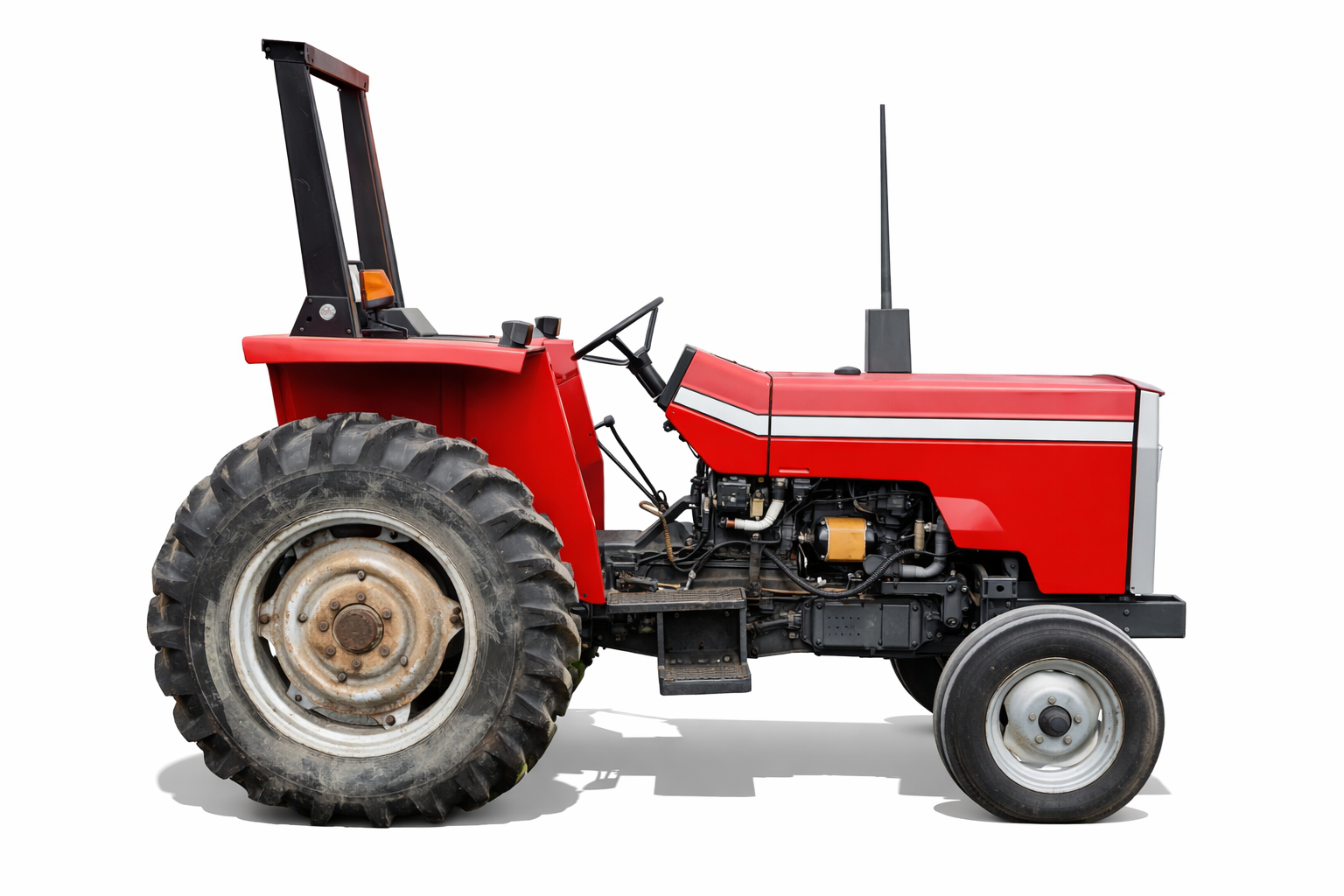

Images shown above represent typical MF 360 configurations and design.
Tests & Performance Summary
Independent tests confirm that the Massey Ferguson 360 delivers strong PTO efficiency and reliable drawbar power, making it suitable for plowing, tillage, mowing, and PTO-driven equipment.
Why the Massey Ferguson 360 Is Still Trusted
-
Proven Perkins diesel engine with strong tested output
-
Simple, service-friendly mechanical design
-
Excellent PTO and hydraulic performance for its class
-
Built in England with classic Massey Ferguson durability
The Massey Ferguson 360 remains a well-balanced utility tractor for farmers seeking dependable power, straightforward maintenance, and long-term value in a global export market.
