When buyers search for a Used Kubota Tractor, many also compare classic high-horsepower tractors designed for large-scale farming.

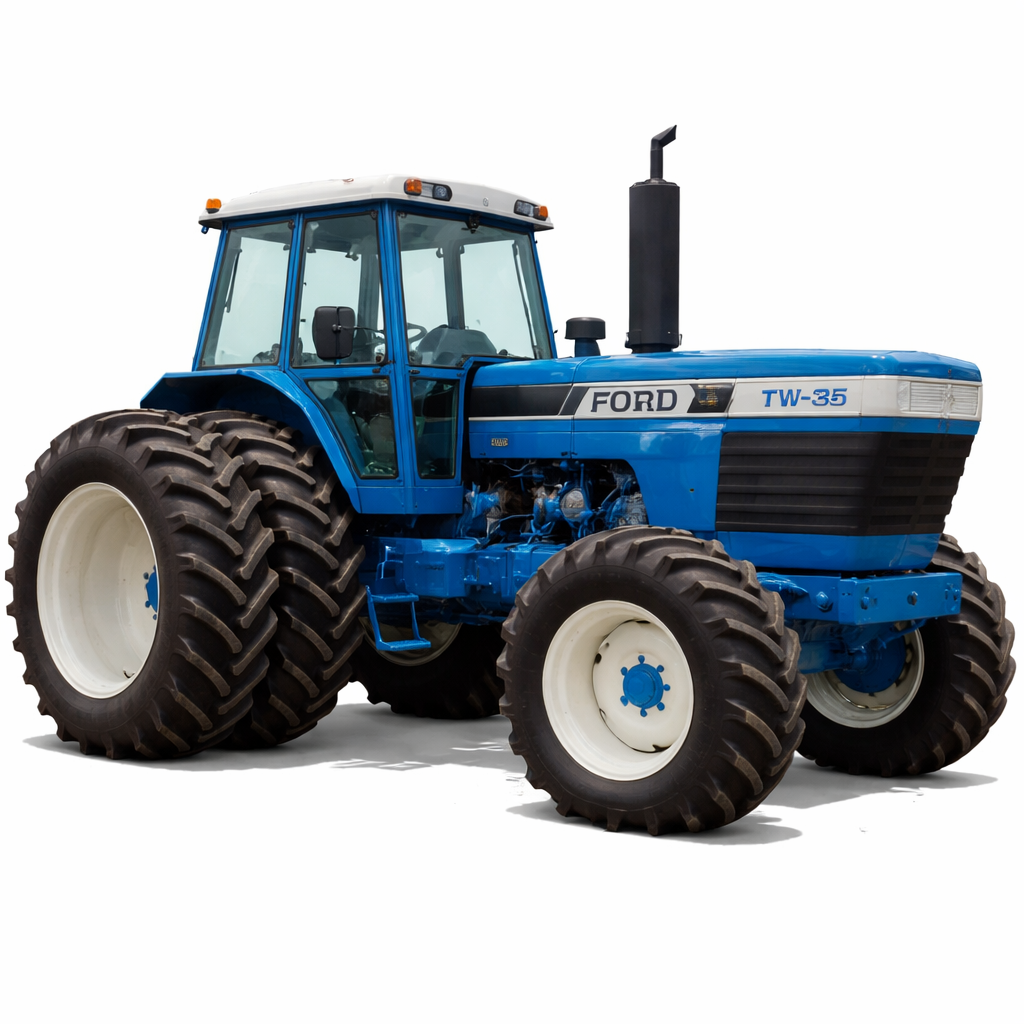

The Ford TW-35 stands at the top of the early TW Series, offering strong engine power, reliable hydraulics, and excellent durability.
Since 2006, EVERY FARM TRACTOR has exported Japanese used tractors and agricultural machinery to more than 100 countries, supporting farmers with dependable machines and smooth international logistics.
Overview
| Item | Details |
|---|---|
| Model | Ford TW-35 |
| Production Years | 1983 – 1986 |
| Series | TW Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturer | Ford |
| Manufacturing Location | Antwerp, Belgium |
The Ford TW-35 was developed as a more powerful evolution of the TW-25.
Therefore, it delivers higher output while maintaining the proven TW-series structure.
Engine
| Item | Specification |
|---|---|
| Engine Model | Ford Diesel |
| Engine Type | 6-cylinder diesel |
| Displacement | 6.6 L |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 75 gal / 283.9 L |
| Series II Fuel Capacity | 100 gal / 378.5 L |
This 6.6-liter diesel engine provides strong torque at working RPM.
As a result, the TW-35 performs efficiently in deep tillage and continuous heavy-duty work.
Power Performance
| Measurement | Output |
|---|---|
| Engine Power (Gross) | 192 hp / 143.2 kW |
| Engine Power (Net) | 187 hp / 139.4 kW |
| PTO Power (Claimed) | 170 hp / 126.8 kW |
| PTO Power (Tested) | 171.1 hp / 127.6 kW |
| Drawbar Power (Tested) | 145.7 hp / 108.6 kW |
Thanks to its high PTO output, the Ford TW-35 easily supports large implements and heavy PTO-driven equipment.
Transmission
| Item | Details |
|---|---|
| Transmission Type | 16-speed partial power shift |
This transmission allows smooth shifting under load.
Moreover, it helps operators maintain stable working speed in tough field conditions.
Mechanical Features
| Feature | Specification |
|---|---|
| Drive Type | 2WD or 4WD |
| Differential Lock | Hydraulic rear |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Cab | Standard with air-conditioning |
| ROPS | Available |
These features improve safety, control, and operator comfort during long working hours.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 23 gal / 87.1 L |
| System Pressure | 2500 psi / 172.4 bar |
| Pump Flow | 20 gpm / 75.7 lpm |
| Total Flow | 32.2 gpm / 121.9 lpm |
| Steering Flow | 4.2 gpm / 15.9 lpm |
High hydraulic flow ensures smooth operation of loaders and heavy implements.
3-Point Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Category | Category II |
| Optional Hitch | Category III |
| Control System | Position control & draft sensing |
| Lift Capacity (24” / 610 mm) | 7,150 lbs / 3,243 kg |
| Max Lift (Optional) | 9,450 lbs / 4,286 kg |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Rear PTO Speed | 1000 RPM |
| Shaft Size Options | 1.375 / 1.75 |
| Engine RPM @ 1000 | 1918 RPM |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 108 in / 274 cm |
| Wheelbase (4WD) | 110.7 in / 281 cm |
| Operating Weight | 13,686 – 15,100 lbs |
| Front Tire | 11.00 × 16 |
| Rear Tire | 18.4 × 38 |
The long wheelbase and solid weight improve traction and stability.
Consequently, the tractor remains steady during heavy field operations.
Attachments
| Available Attachments |
|---|
| Front-end loader |
The Ford TW-35 supports common agricultural attachments, increasing overall versatility.
Serial Number Location
| Location |
|---|
| Under forward right grill panel |
| Year | Serial Number Start |
|---|---|
| 1983 | C694500 |
| 1984 | C707400 |
| 1985 | C732600 |
| 1986 | A915854 |
| 1987 | A917560 |
| 1988 | A919438 |
| 1989 | A922535 |
| 1990 | A925099 |
