Japanese used tractors are trusted worldwide for durability, performance, and long service life.

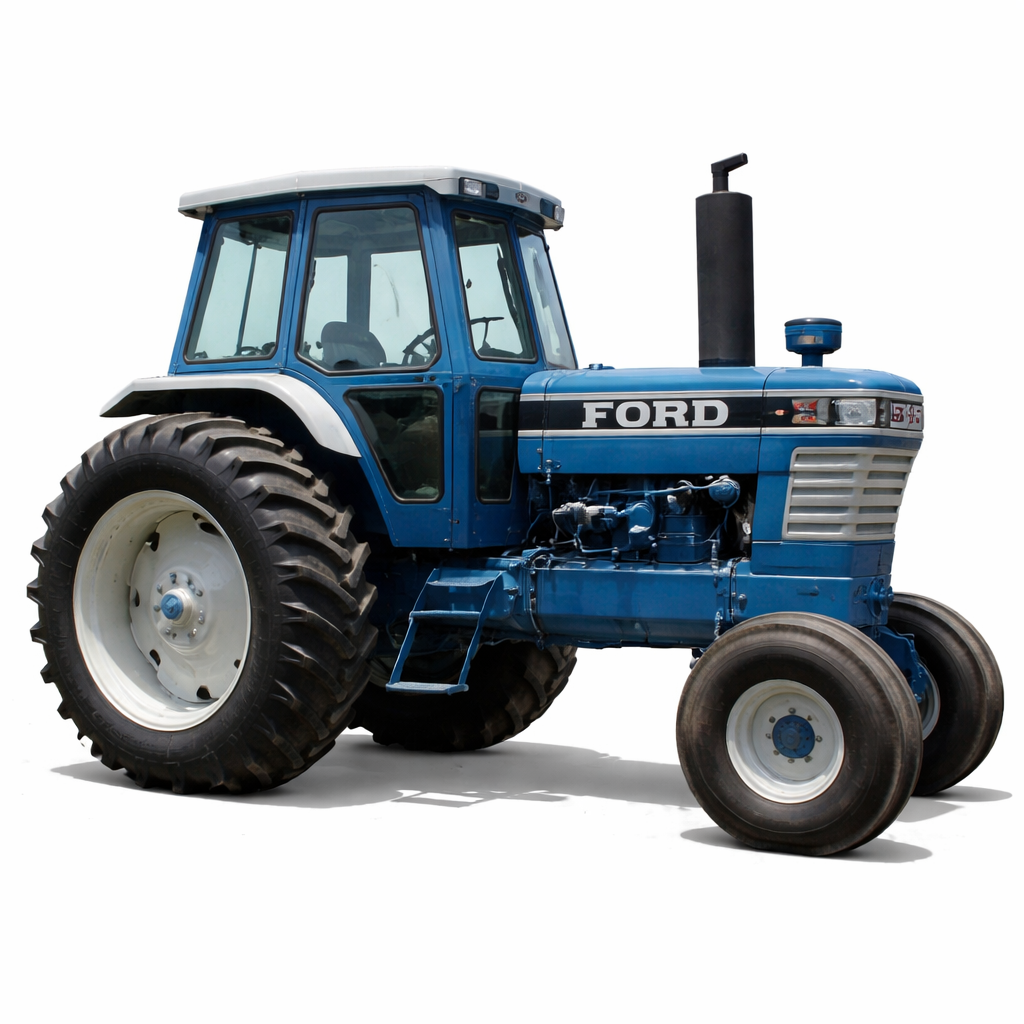

Among powerful row-crop tractors, the Ford TW-15 remains a strong choice for professional farmers and agricultural contractors who need reliable horsepower every day.
Since 2006, EVERY FARM TRACTOR has exported Japanese used tractors and farm machinery to more than 100 countries, supporting global agriculture with trusted equipment and smooth export services.
Overview
| Item | Details |
|---|---|
| Model | Ford TW-15 |
| Production Years | 1983 – 1990 |
| Series | TW Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturer | Ford |
| Manufacturing Location | Antwerp, Belgium |
| Original Price (New) | USD 41,000 |
The Ford TW-15 was designed for heavy agricultural work.
It sits between the TW-10 and TW-25, offering an ideal balance of power, size, and efficiency.
Engine
| Item | Specification |
|---|---|
| Engine Model | Ford Diesel |
| Engine Type | 6-cylinder diesel |
| Displacement | 6.6 L |
| Fuel System | Diesel |
| Fuel Tank Capacity | 58 gal / 219.5 L |
This large-displacement engine delivers strong torque at low RPM.
As a result, the tractor performs well in plowing, cultivation, and heavy PTO operations.
Power Output
| Measurement | Output |
|---|---|
| Engine Power (Gross) | 140 hp / 104.4 kW |
| Engine Power (Net) | 137 hp / 102.2 kW |
| PTO Power (Claimed) | 120 hp / 89.5 kW |
| PTO Power (Tested) | 121.4 hp / 90.5 kW |
| Drawbar Power (Tested) | 105.9 hp / 79.0 kW |
Thanks to its strong PTO output, the TW-15 handles large implements with ease.
Transmission
| Option | Details |
|---|---|
| Transmission Type | Power Shift |
| Gears | 16-speed (two-speed power shift) |
| Optional Transmission | 24-speed |
Smooth gear changes improve productivity.
Moreover, operators can maintain steady speed under load.
Mechanical & Operating Features
| Feature | Specification |
|---|---|
| Drive Type | 2WD or 4WD |
| Differential Lock | Hydraulic rear |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| ROPS | Two-post fixed |
| Cab | Optional with air-conditioning |
These features support long working hours while improving operator comfort and safety.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Hydraulic Capacity | 18.25 gal / 69.1 L |
| Series II Capacity | 23.8 gal / 90.1 L |
| System Pressure | 2500 psi / 172.4 bar |
| Valves | 2 |
| Pump Flow | 15.3 gpm / 57.9 lpm |
| Total Flow | 27.5 gpm / 104.1 lpm |
High hydraulic flow ensures smooth operation of loaders and implements.
3-Point Hitch & PTO
Rear Hitch
| Item | Specification |
|---|---|
| Hitch Type | Category II / I |
| Optional Hitch | Category III |
| Lift Capacity (24” / 610 mm) | 7,150 lbs / 3,243 kg |
| Max Lift (Optional) | 9,450 lbs / 4,286 kg |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| Rear PTO Speed | 540 / 1000 RPM |
| Engine RPM @ 540 | 1861 RPM |
| Engine RPM @ 1000 | 1918 RPM |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 108 in / 274 cm |
| Wheelbase (4WD) | 105 in / 266 cm |
| Operating Weight | 11,355 – 14,300 lbs |
| Front Tire | 10.00-16 |
| Rear Tire | 18.4-38 |
The long wheelbase improves stability, even during demanding field operations.
Attachments
| Available Attachments |
|---|
| Front-end loader |
This tractor supports common agricultural attachments, making it highly versatile.
Serial Number Location
| Location |
|---|
| Under forward right grill panel |
| Year | Serial Number Start |
|---|---|
| 1983 | C694500 |
| 1984 | C707400 |
| 1985 | C732600 |
| 1986 | A915854 |
| 1987 | A917560 |
| 1988 | A919438 |
| 1989 | A922535 |
| 1990 | A925099 |
