Iseki TH255 – Compact Utility Tractor (TH5 Series)
Overview
| Item | Details |
|---|---|
| Model | Iseki TH255 |
| Series | TH5 Series |
| Production Years | 2010 – 2016 |
| Tractor Type | Compact Utility Tractor |
| Manufacturer | Iseki |
| Country of Origin | Japan |
Series Map
| Model | Engine Power |
|---|---|
| TH235 | 17.3 kW |
| TH255 | 18.4 kW |
| TH265 | 19.5 kW |
The TH255 is one of the most powerful models in the TH5 Series, offering higher output while maintaining compact dimensions and excellent maneuverability.
Engine
| Item | Specification |
|---|---|
| Engine Model | Iseki diesel |
| Engine Type | 3-cylinder, liquid-cooled |
| Displacement | 1.5 L |
| Fuel Type | Diesel |
| Rated Engine Power | 24.7 hp (18.4 kW) |
| Rated RPM | 2,500 rpm |
| Fuel Tank Capacity | 6.6 gal (25.0 L) |
Engine Highlights
-
Reliable Iseki diesel engine with strong torque output
-
Efficient fuel consumption for extended workdays
-
Built for durability and easy maintenance in global markets
Transmission
| Item | Specification |
|---|---|
| Transmission Options | 12-speed gear / 24-speed partial power shift |
| Drive System | 4WD (Four-Wheel Drive) |
| Steering | Power steering |
| Brake Type | Wet disc brakes |
The optional partial power shift transmission improves operational efficiency when working with varying loads or changing terrain.
Power & PTO
| Item | Specification |
|---|---|
| PTO Type | Rear PTO |
| PTO Speed | 540 rpm (1.375 in) |
| PTO RPM (Engine 2,500 rpm) | 523 / 783 / 1,184 rpm |
| Rear Hitch Type | JIS Category 0 |
The PTO system is suitable for rotary tillers, mowers, sprayers, and other compact tractor implements commonly used worldwide.
Dimensions & Tires
| Item | Specification |
|---|---|
| Operating Weight | 1,984 – 3,296 lbs |
| Front Tires | 7.00-14 |
| Rear Tires | 9.5-24 |
The wide weight range reflects different configurations, including ballast and optional cab installation.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery Voltage | 12 V |
| Battery Capacity | 55 Ah |
Safety & Comfort
| Feature | Details |
|---|---|
| ROPS | Two-post folding ROPS |
| Cab Option | Enclosed cab with air-conditioning (optional) |
| Operator Area | Ergonomic layout with clear visibility |
Typical Applications
-
Rotary tilling and soil preparation
-
Orchard, plantation, and vegetable farming
-
Utility transport and light hauling
-
Daily farm work requiring higher power in a compact tractor
The Iseki TH255 is ideal for users who need maximum power within a compact tractor class without sacrificing reliability or efficiency.
Photos

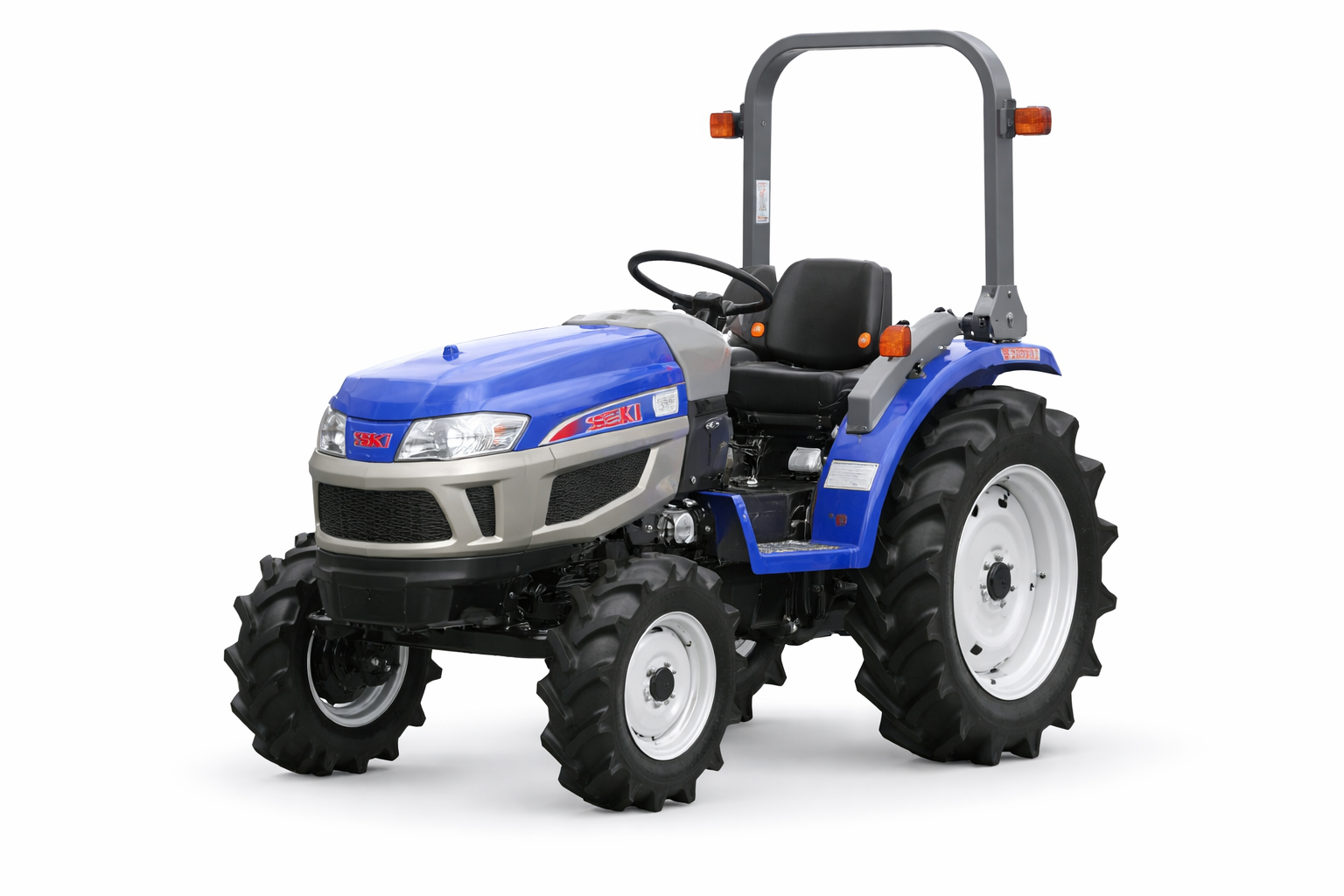

Official photos of the Iseki TH255 are currently limited. Below are reference images of similar Iseki TH-series compact utility tractors.
Why Choose the Iseki TH255?
-
Trusted Japanese manufacturing quality
-
Strong 4WD traction with the highest output in the TH5 lineup
-
Simple, durable mechanical design
-
Excellent compatibility with compact tractor implements
