Iseki TH24 Tractor Specifications & Overview
Overview
The Iseki TH24 is a compact utility tractor from the proven TH Series, designed for farmers who need more power while retaining a compact footprint.
Produced between 2004 and 2010, the TH24 sits above the TH22 and below the TH25, offering increased displacement and torque for heavier implements and more demanding tasks.
Its combination of simple mechanical construction, 4WD capability, and reliable PTO performance makes the TH24 a popular choice for orchards, small farms, and mixed agricultural work.
Engine
| Item | Specification |
|---|---|
| Engine manufacturer | Iseki |
| Engine type | Diesel |
| Cylinders | 3 |
| Displacement | 1.5 L |
| Engine power | 23.7 hp |
| Power output | 17.7 kW |
| Fuel tank capacity | 6.6 gal / 25.0 L |
Engine highlights:
-
Larger displacement than TH22 for improved torque
-
Fuel-efficient and durable diesel design
-
Easy maintenance and long service life
Transmission
| Item | Specification |
|---|---|
| Transmission type | 12-speed gear |
The 12-speed mechanical transmission provides dependable control for cultivation, transport, and PTO-driven operations.
Power & Mechanical Features
| Item | Specification |
|---|---|
| Drive system | Four-wheel drive (4WD) |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| ROPS | Two-post folding ROPS |
| Cab | Optional cab with air-conditioning |
Tractor Hitch
| Item | Specification |
|---|---|
| Rear hitch type | JIS Category 0 |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO type | 540 rpm (1.375 in) |
| PTO engine RPM | 523 @ 2500 rpm |
| 829 @ 2500 rpm | |
| 1218 @ 2500 rpm |
The PTO setup supports rotary tillers, mowers, and other compact agricultural implements.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 57.1 in / 145 cm |
| Operating weight | 1,896 – 2,348 lbs |
| Front tires | 6-14 |
| Rear tires | 9.5-22 |
The wider rear tires enhance traction and stability during heavier field and PTO work.
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Battery voltage | 12 V |
Photos

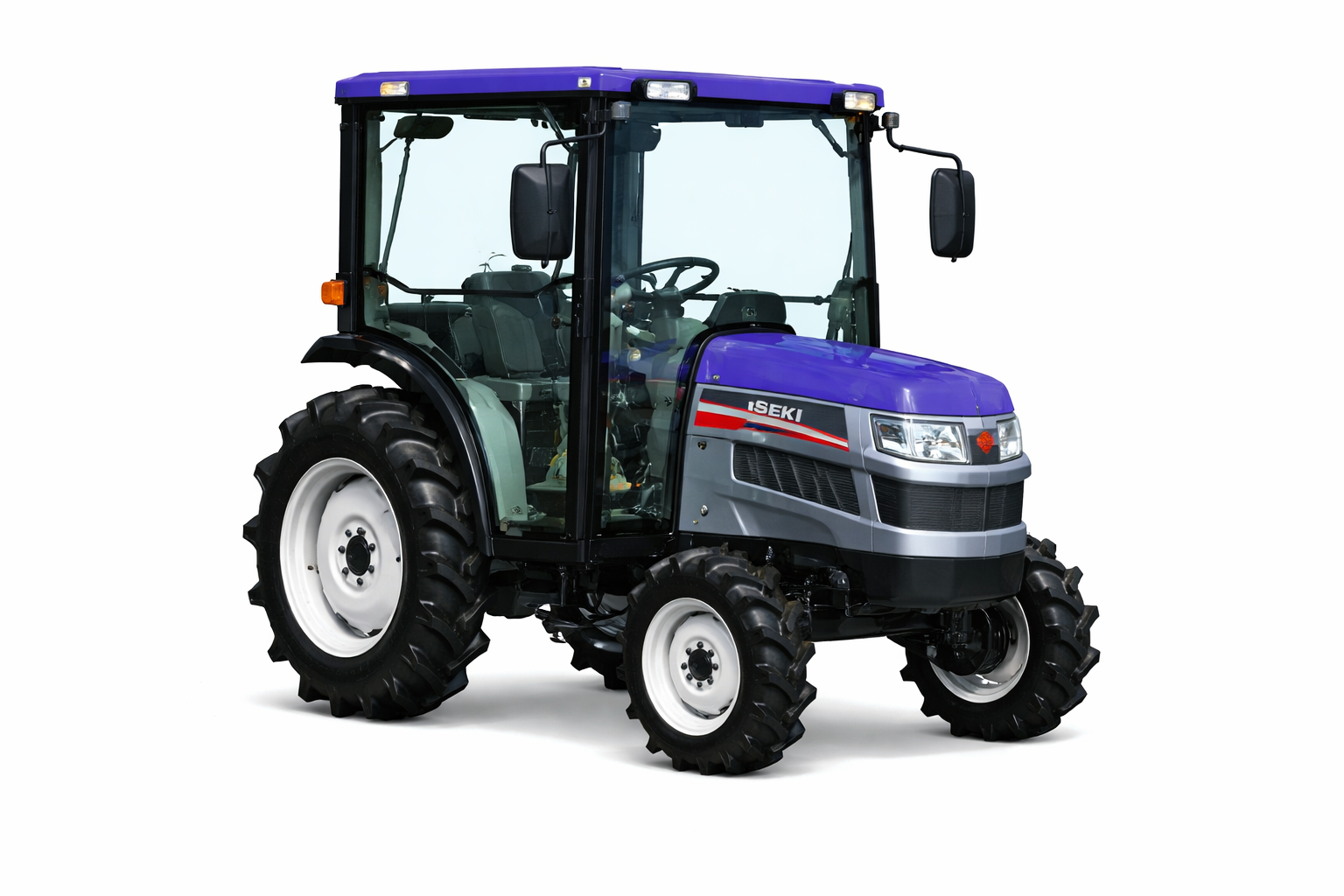

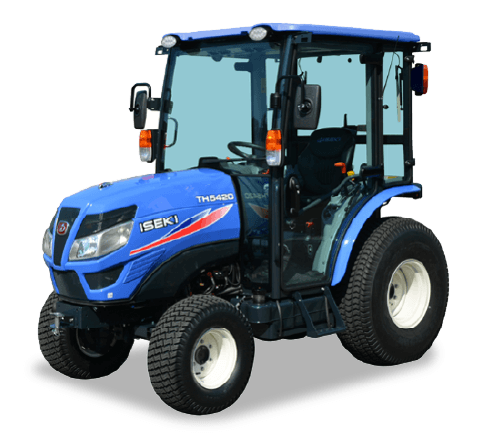

Official photos of the Iseki TH24 are currently limited.
The images shown represent typical TH Series tractors. Actual appearance may vary by market and optional equipment.
Why Choose the Iseki TH24?
-
Strong 24 HP class performance
-
Reliable 1.5L diesel engine
-
Compact size with improved traction
-
Simple, durable mechanical design
-
Trusted Japanese engineering
The Iseki TH24 is an excellent choice for users seeking a compact tractor with added power and reliability, well suited to orchards, gardens, and small-scale farming operations worldwide.
