Kubota GL241 Compact Utility Tractor
Overview
The Kubota GL241 is a compact utility tractor produced from 1996 to 2001, positioned between the GL221 and GL261 in Kubota’s reliable GL Series.
Built in Japan, the GL241 offers higher engine output, strong hydraulic performance, and excellent stability, making it suitable for more demanding farming tasks while retaining compact size and maneuverability.
This model is especially popular in export markets thanks to its simple mechanical structure, long service life, and compatibility with common agricultural implements.
Production Information
| Item | Details |
|---|---|
| Manufacturer | Kubota |
| Series | GL Series |
| Model | GL241 |
| Production Years | 1996 – 2001 |
| Tractor Type | Compact Utility Tractor |
| Country of Origin | Japan |
Engine
The Kubota GL241 is powered by a reliable Kubota diesel engine that delivers strong torque and improved output over earlier GL models.
| Item | Specification |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | Diesel |
| Cylinders | 3 |
| Displacement | 1.5 L |
| Rated Engine Power | 24.7 hp (18.4 kW) |
| PTO Power (claimed) | 23.7 hp (17.7 kW) |
| Cooling System | Liquid-cooled |
| Fuel Tank Capacity | 7.1 gal (26.9 L) |
Engine Highlights
-
Higher power for rotary tilling and hauling
-
Excellent fuel efficiency
-
Proven reliability in harsh climates
Transmission
The GL241 offers flexible transmission options to match different operating needs.
| Transmission Type | Details |
|---|---|
| Gear Transmission | 16-speed manual |
| Power Shift | 16-speed power shift |
Transmission Features
-
Wide speed range for precision work
-
Smooth shifting under load
-
Durable design for long-term operation
Power & Mechanical Features
| Item | Specification |
|---|---|
| Drive System | Four-wheel drive (4WD) |
| Steering | Power steering |
| Brakes | Mechanical wet disc brakes |
| ROPS | Two-post ROPS |
| Cab Option | Optional cab |
Hydraulics
The GL241 is equipped with a strong hydraulic system, allowing it to handle heavier implements efficiently.
| Item | Specification |
|---|---|
| Hydraulic Pump Flow | 6.1 gpm (23.1 L/min) |
| Rear Lift Capacity | 1,841 lb (835 kg) |
PTO (Power Take-Off)
The rear PTO system supports a wide range of agricultural attachments used globally.
| Item | Specification |
|---|---|
| PTO Type | Rear |
| PTO Speed | 540 rpm |
| PTO Shaft Size | 1.375 inch |
| Engine RPM @ PTO | 544 / 770 / 944 / 1250 rpm @ 2600 rpm |
| Reverse PTO | -770 rpm @ 2600 rpm |
Hitch System
| Item | Specification |
|---|---|
| Rear Hitch Type | JIS Category 1 |
Compatible implements include:
-
Rotary tillers
-
Plows
-
Harrows
-
Grass cutters
-
Trailers
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (ROPS) | 61 in (154 cm) |
| Wheelbase (Cab) | 62.4 in (158 cm) |
| Operating Weight | 2,436 – 2,877 lb |
| Front Tire Size | 6-14 |
| Rear Tire Size | 9.5-24 |
Electrical System
| Item | Specification |
|---|---|
| Electrical Ground | Negative |
| Battery Voltage | 12 V |
Photos

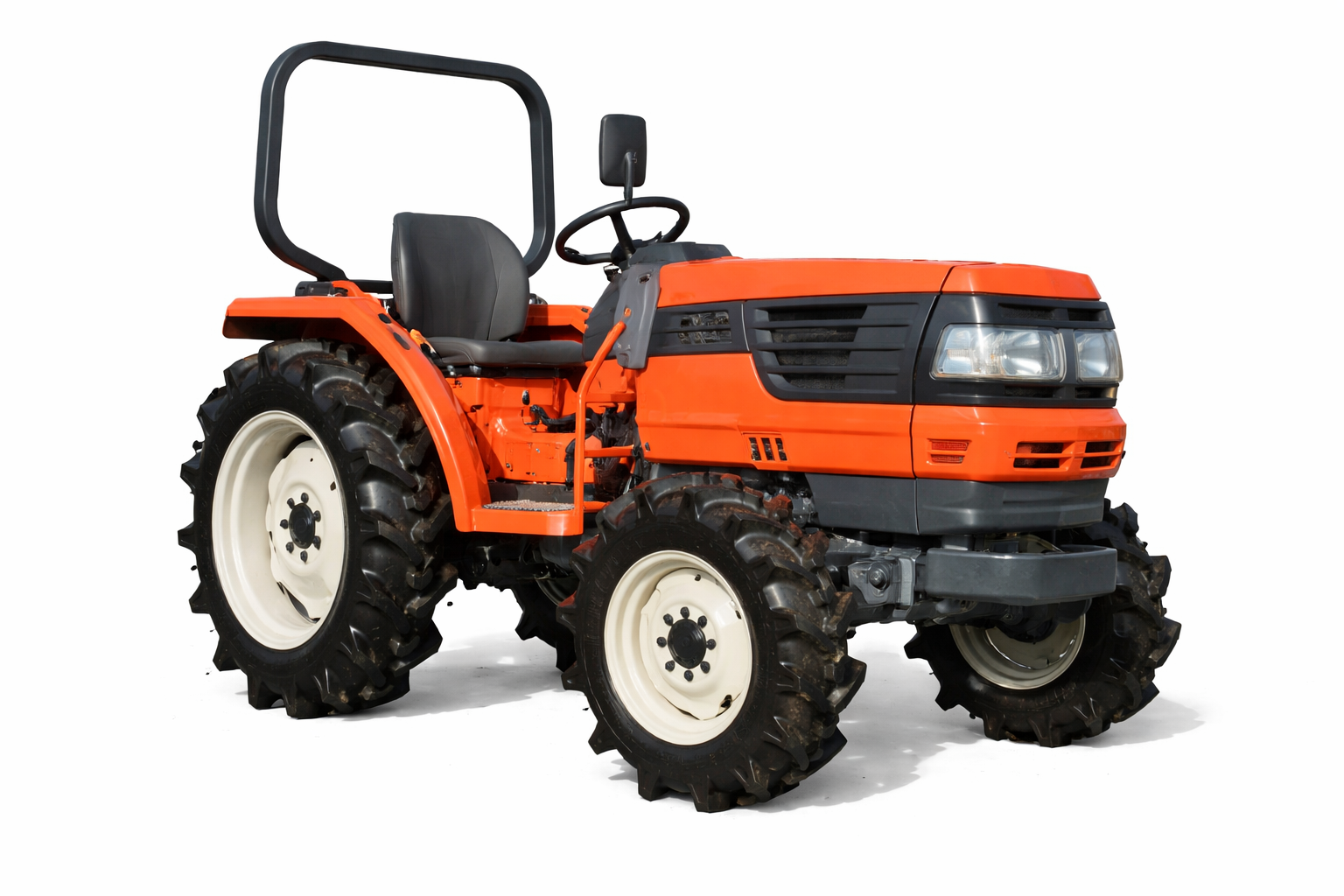

Kubota GL241 tractor photos are available in ROPS and cab configurations.
Actual appearance may vary depending on production year and optional equipment.
Why Choose the Kubota GL241?
-
Built in Japan with trusted Kubota engineering
-
Higher output and stronger hydraulics than GL240
-
4WD and power steering for stable operation
-
Suitable for heavier implements in compact farms
-
Strong demand in international export markets
