Massey Ferguson 292 Tractor Specifications & Details
Overview
| Item | Details |
|---|---|
| Model | Massey Ferguson 292 |
| Production Years | 1994 – 2005 |
| Tractor Type | Row-Crop Tractor |
| Manufacturer | Massey Ferguson |
| Manufacturing Location | Canoas, Brazil |
| Drive Options | 2WD / 4WD |
| ROPS | Two-post fixed ROPS |
The Massey Ferguson 292 is a robust row-crop tractor designed for medium to heavy-duty farming operations. Built in Brazil, it is widely trusted in global markets for its mechanical simplicity, strong pulling power, and long service life—making it a popular choice for export.
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | Perkins |
| Engine Model | Perkins Diesel |
| Displacement | 4.1 L |
| Cylinders | 4-cylinder |
| Fuel Type | Diesel |
| Aspiration | Naturally Aspirated |
| Rated Engine Power | 105 hp (78.3 kW) |
| PTO Power (claimed) | 93.5 hp (69.7 kW) |
The Perkins 4.1L diesel engine is known worldwide for reliability, fuel efficiency, and ease of maintenance, especially in regions where durability is critical.
Transmission
| Item | Specification |
|---|---|
| Transmission Type | Gear |
| Number of Speeds | 12-speed |
| Clutch (Live PTO) | Mechanical |
| Clutch (Independent PTO) | Hydraulic (optional) |
This simple and proven gear transmission delivers dependable torque transfer and easy servicing in demanding agricultural environments.
Power & Mechanical
| Item | Specification |
|---|---|
| Drive System | Two-wheel or Four-wheel drive |
| Final Drives | Planetary |
| Differential Lock | Mechanical rear |
| Steering | Power steering |
| Brakes | Mechanical wet disc brakes |
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Pump Flow | 11.1 gpm (42.0 L/min) |
| Rear Lift Capacity | 7,055 lbs (3,200 kg) |
The strong hydraulic system supports heavy implements such as plows, harrows, seeders, and trailers.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| Rear PTO Type | Live / Independent (optional) |
| PTO Speeds | 540 / 1000 rpm |
| PTO Shaft | 1.375 in |
| Engine RPM @ PTO | 540 @ 1683 rpm / 1000 @ 1683 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase (2WD) | 90 in (228 cm) |
| Wheelbase (4WD) | 93.3 in (236 cm) |
| Operating Weight | 6,819 – 7,180 lbs |
| Front Tires | 9.00-16 |
| Rear Tires (2WD) | 18.4-34 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 35 amps |
| Battery Voltage | 12 V |
| Battery Capacity | 90 Ah |
Photos
-

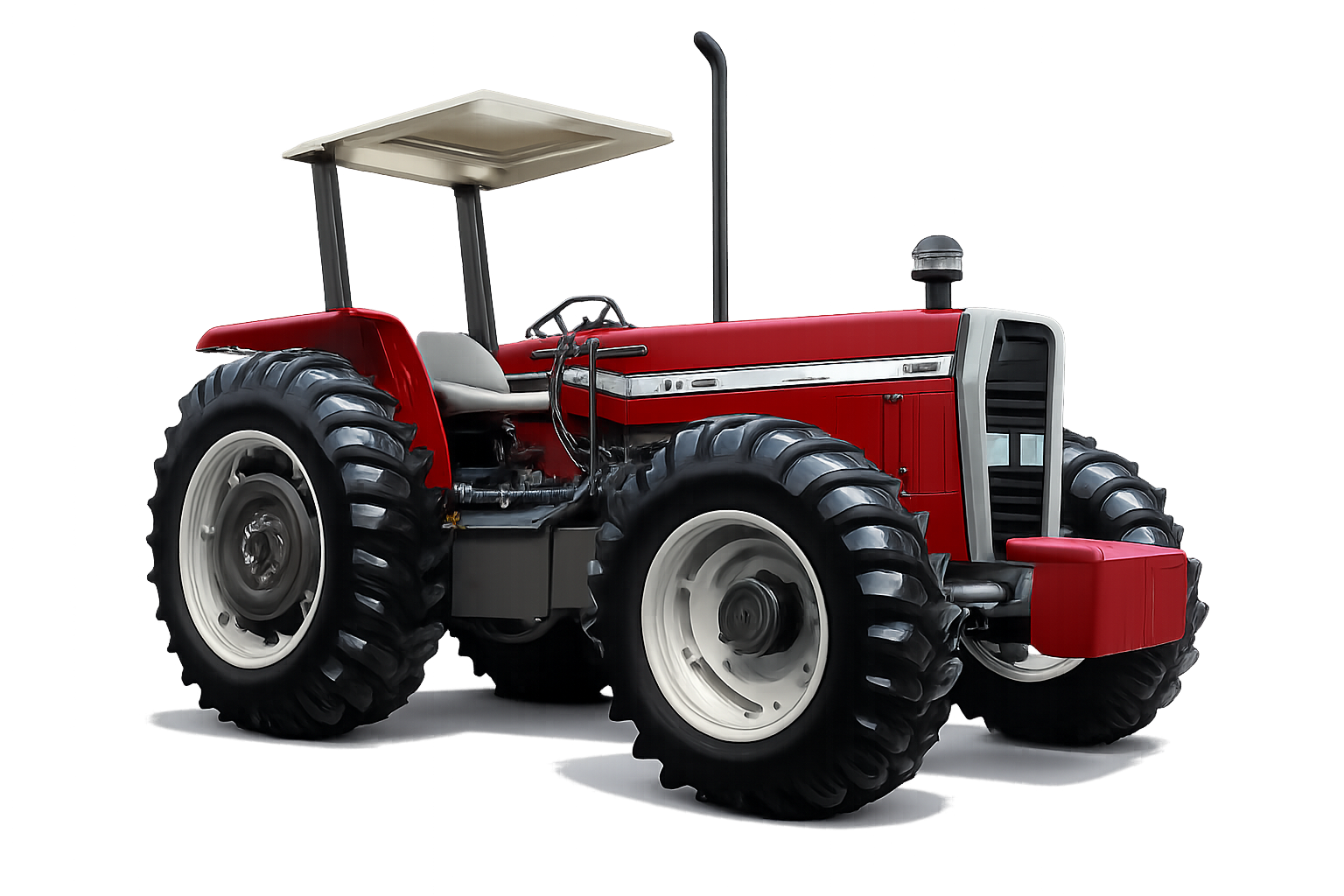

Massey Ferguson 292 – front and side views
-
Rear PTO and hydraulic linkage
-
Field operation examples
Why Choose the Massey Ferguson 292?
The Massey Ferguson 292 combines 105 horsepower, a trusted Perkins diesel engine, and a rugged mechanical design, making it ideal for export markets that demand reliability, easy maintenance, and long-term performance. It remains a dependable choice for crop farming, hauling, and general agricultural work worldwide.
