Iseki TG5470 — Overview
The Iseki TG5470 is the highest-power model in the TG Series compact utility tractor lineup, introduced in 2004. With a robust 45.4 horsepower diesel engine, strong hydraulics, and multiple transmission options, the TG5470 is designed for heavier implements, loader work, and intensive daily farm operations.
Compared with the TG5390, the TG5470 offers greater lifting capacity, a larger 4-cylinder engine, and improved hydraulic flow—making it especially attractive for overseas buyers who need compact size with near-utility-class performance.
Quick Specifications
| Item | Specification |
|---|---|
| Model | Iseki TG5470 |
| Series | TG Series |
| Type | Compact Utility Tractor |
| Production | 2004 – (unknown) |
| Manufacturer | Iseki |
| Drive | 2WD or 4WD (MFWD) |
Engine
The TG5470 is powered by a durable Iseki 2.2-liter 4-cylinder diesel engine, delivering smooth torque and reliable power for demanding PTO and hydraulic applications.
| Engine Item | Detail |
|---|---|
| Engine manufacturer | Iseki |
| Engine type | Diesel |
| Cylinders | 4 |
| Displacement | 2.2 L |
| Rated engine power | 45.4 hp (33.9 kW) |
| Fuel tank capacity | 13.2 gal (50.0 L) |
Power Output
| Item | Output |
|---|---|
| Engine power | 45.4 hp (33.9 kW) |
| PTO power (claimed) | 38 hp (28.3 kW) |
Transmission
The TG5470 offers flexible transmission choices, allowing buyers to select a configuration best suited to their working style.
| Item | Specification |
|---|---|
| Transmission options | 12-speed power shuttle / Hydrostatic (HST) |
| Steering | Hydrostatic power steering |
| Brakes | Wet disc brakes |
The power shuttle version is ideal for loader and repetitive forward-reverse work, while the HST version provides smooth speed control for mowing and precision tasks.
Hydraulics
A higher-capacity hydraulic system supports larger implements and stable steering performance.
| Item | Specification |
|---|---|
| Hydraulic pressure | 2276 psi (156.9 bar) |
| Total hydraulic flow | 11.6 gpm (43.9 lpm) |
| Steering flow | 4.9 gpm (18.5 lpm) |
| Steering pressure | 1711 psi (118.0 bar) |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
| Rear lift (at ends) | 3,483 lbs (1,579 kg) |
| Rear lift (24 in / 610 mm) | 3,086 lbs (1,399 kg) |
| Rear PTO | Independent |
| Rear PTO speeds | 540 / 1000 rpm |
| Mid PTO speed | 2000 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 74.8 in (189 cm) |
| Operating weight | 3,527 lbs (1,599 kg) |
| Front tires | 9.5-16 |
| Rear tires | 13.6-28 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 60 amps |
| Battery voltage | 12 V |
| Battery capacity | 72 Ah |
| Battery CCA | 710 |
Mechanical Features
| Feature | Detail |
|---|---|
| Drive options | 2WD / 4WD |
| Differential lock | Pedal-operated (standard) |
| ROPS | Two-post ROPS |

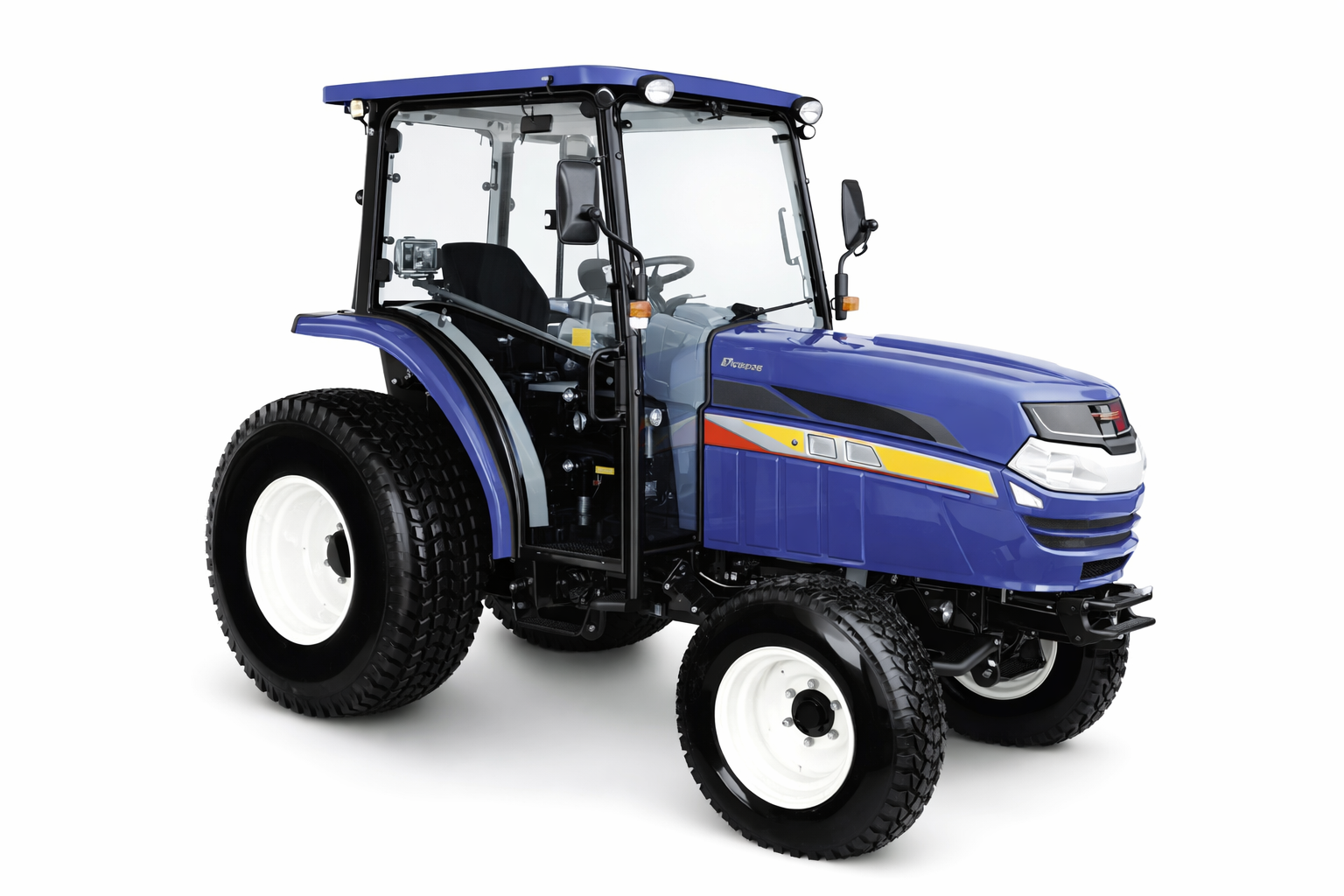

Photos
Note: Official TG5470 photo availability is limited. Actual appearance may vary by market and installed attachments.
Why Choose the Iseki TG5470?
The Iseki TG5470 is highly regarded by export buyers for its:
-
Strong 4-cylinder diesel engine in a compact frame
-
Excellent hydraulic lift for Category I implements
-
Power shuttle or HST transmission options
-
Proven Japanese build quality and durability
