Iseki TG5390 — Overview
The Iseki TG5390 is a compact utility tractor from Iseki’s TG Series, positioned between the TG5330 and TG5470. First introduced in 2004, it delivers higher power while maintaining a compact footprint, making it ideal for mixed farming, orchard work, mowing, and PTO-driven implements.
With 37.5 engine horsepower, selectable 2WD or 4WD, and a durable 12-speed transmission, the TG5390 balances efficiency, lifting power, and ease of maintenance—qualities highly valued by overseas buyers of Japanese used tractors.
Quick Specifications
| Item | Specification |
|---|---|
| Model | Iseki TG5390 |
| Series | TG Series |
| Type | Compact Utility Tractor |
| Production years | 2004 – (unknown) |
| Manufacturer | Iseki |
| Drive | 2WD or 4WD (MFWD) |
Engine
The TG5390 is equipped with a reliable Iseki 1.5-liter 3-cylinder diesel engine, designed for smooth operation, fuel efficiency, and long service life under continuous agricultural use.
| Engine Item | Detail |
|---|---|
| Engine manufacturer | Iseki |
| Engine type | Diesel |
| Cylinders | 3 |
| Displacement | 1.5 L |
| Rated engine power | 37.5 hp (28.0 kW) |
| Fuel tank capacity | 10.6 gal (40.1 L) |
Power Output
| Item | Output |
|---|---|
| Engine power | 37.5 hp (28.0 kW) |
| PTO power (claimed) | 31 hp (23.1 kW) |
Transmission
The 12-speed mechanical transmission provides a wide working speed range for both field and transport operations.
| Item | Specification |
|---|---|
| Transmission type | Mechanical |
| Gears | 12-speed |
| Steering | Power steering |
| Brakes | Wet disc brakes |
Hydraulics
The hydraulic system supports demanding rear implements and stable steering performance.
| Item | Specification |
|---|---|
| Hydraulic pressure | 2276 psi (156.9 bar) |
| Total hydraulic flow | 9.1 gpm (34.4 lpm) |
| Steering flow | 4.9 gpm (18.5 lpm) |
| Steering pressure | 1138 psi (78.5 bar) |
Hitch & PTO
| Item | Specification |
|---|---|
| Rear hitch type | Category I |
| Rear lift (at ends) | 2,800 lbs (1270 kg) |
| Rear lift (24 in / 610 mm) | 2,138 lbs (969 kg) |
| Rear PTO | Independent |
| Rear PTO speeds | 540 / 1000 rpm |
| Mid PTO speed | 2000 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 69.7 in (177 cm) |
| Operating weight | 2,888 lbs (1309 kg) |
| Front tires | 7-16 |
| Rear tires | 12.4-24 |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 40 amps |
| Battery voltage | 12 V |
| Battery capacity | 55 Ah |
| Battery CCA | 630 |
Mechanical Features
| Feature | Detail |
|---|---|
| Drive options | 2WD / 4WD |
| Differential lock | Mechanical rear |
| ROPS | Two-post ROPS (standard) |

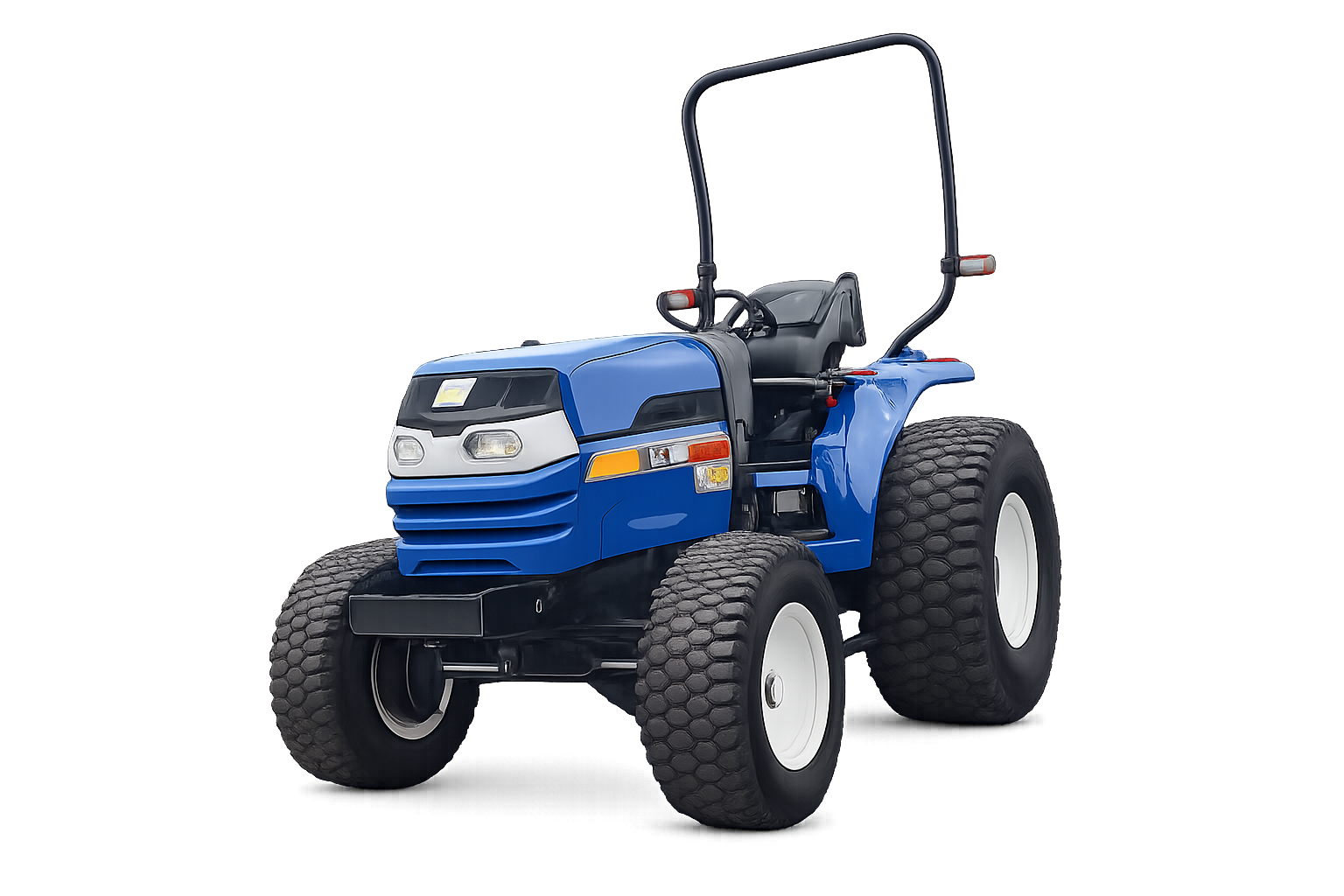

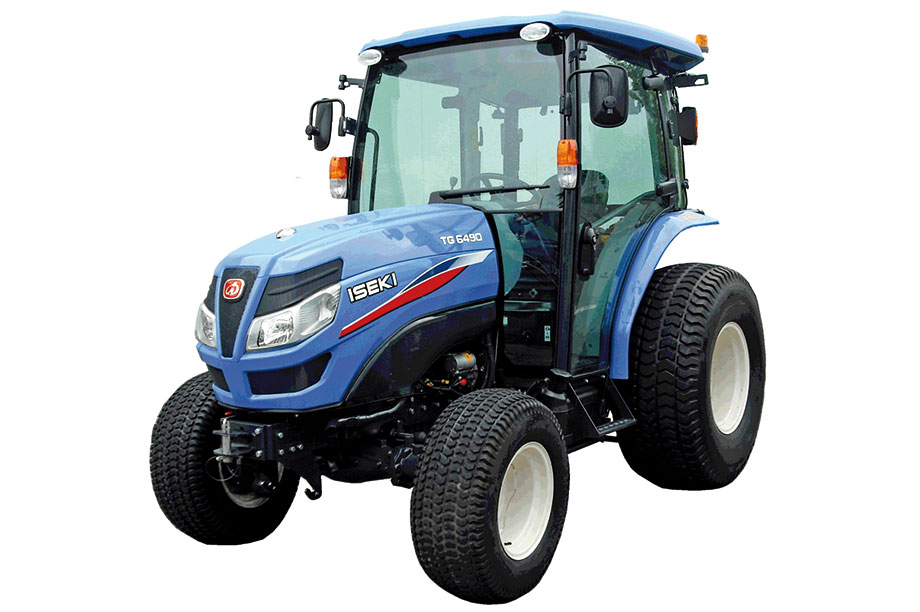

Photos
Note: Actual appearance may vary depending on year, market specification, and installed attachments.
Why Choose the Iseki TG5390?
The Iseki TG5390 is a popular export model because it offers:
-
Higher power than TG5330 while staying compact
-
Strong hydraulic lift for Category I implements
-
Dual-speed rear PTO and mid PTO flexibility
-
Proven Japanese diesel reliability
EVERY FARM TRACTOR has exported Japanese used tractors since 2006 to over 100 countries, supporting buyers with inspection, documentation, and global shipping.
If you need attachment recommendations or country-specific export advice for the TG5390, feel free to contact us.
