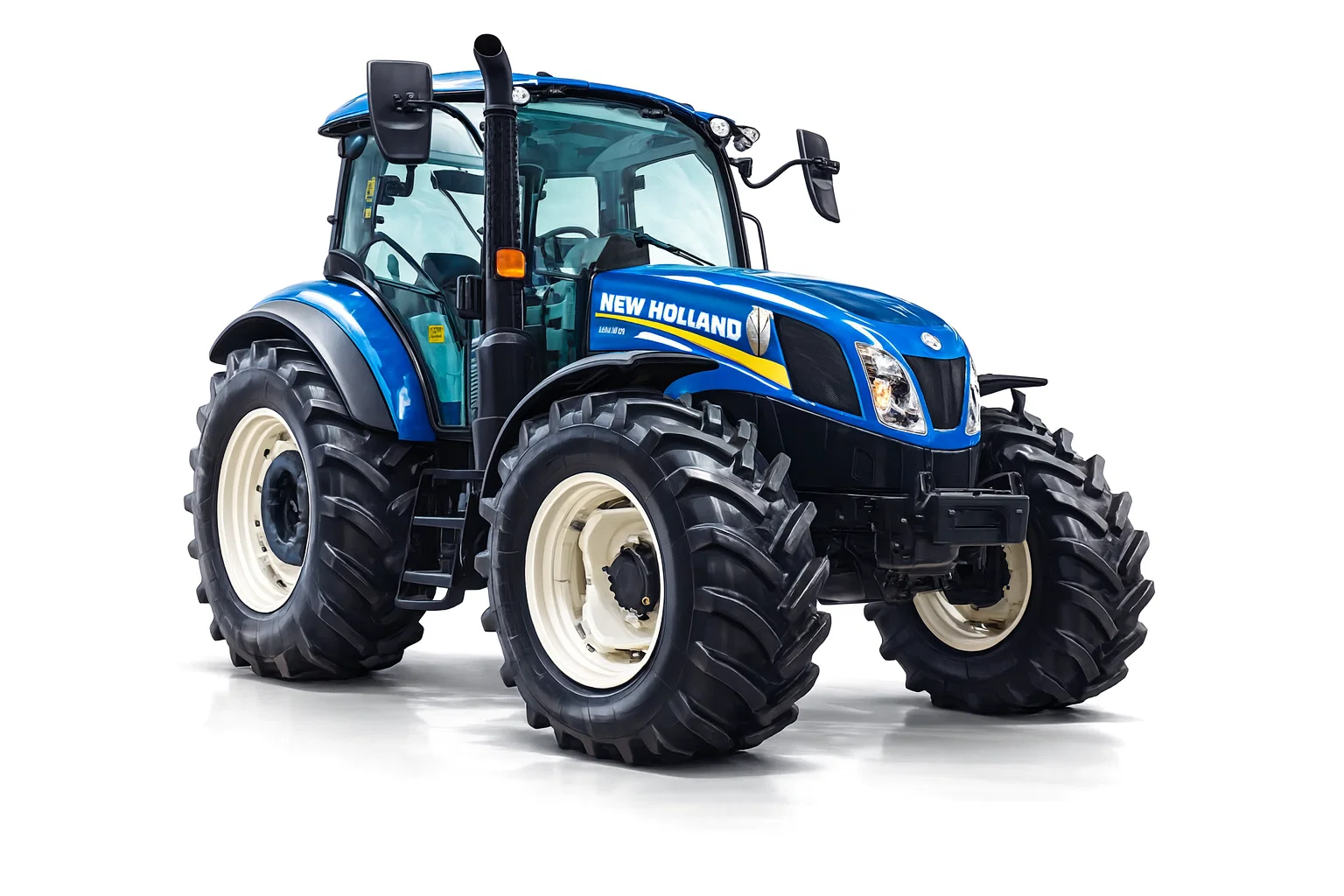

Used New Holland T5.120 – High-Power Utility Tractor for Professional Farming
EVERY FARM TRACTOR has exported used Japanese vehicles and agricultural tractors to more than 100 countries since 2006.
Among modern utility tractors, the New Holland T5.120 stands out for its strong engine output, efficient PTO power, and advanced transmission. Therefore, it is frequently searched worldwide as a Used New Holland Tractor.
Overview
| Item | Details |
|---|---|
| Model | New Holland T5.120 |
| Series | T5 Series |
| Production Years | 2017 – Present |
| Manufacturer | New Holland (CNH Group) |
| Tractor Type | Utility Tractor |
| Drive System | Four-wheel drive (4WD) |
Moreover, the T5.120 delivers higher horsepower while keeping a compact and balanced body.
Engine Specifications
| Item | Details |
|---|---|
| Engine Manufacturer | FPT (Fiat Powertrain Technologies) |
| Engine Type | 4-cylinder diesel |
| Displacement | 3.4 L |
| Rated Output | 120 hp (89.5 kW) |
| Fuel Tank Capacity | 30.3 gal (114.7 L) |
| DEF Tank Capacity | 2.8 gal (10.6 L) |
As a result, the engine provides strong performance with modern emissions compliance.
Transmission System
| Transmission | Details |
|---|---|
| Type | 24-speed two-speed power shift |
| Variants | T5.120 DC (synchronized) / T5.120 EC (power shift) |
Therefore, operators can shift smoothly while maintaining productivity in the field and on the road.
Power Performance
| Item | Output |
|---|---|
| Engine Power (gross) | 120 hp (89.5 kW) |
| PTO Power (claimed) | 100 hp (74.6 kW) |
Consequently, the T5.120 easily handles heavy PTO-driven implements.
Mechanical Features
| Item | Details |
|---|---|
| Drive | 4WD |
| Differential Lock | Electro-hydraulic rear |
| Steering | Power steering |
| Brakes | Hydraulic wet disc |
| Operator Station | Two-post ROPS |
| Cab Option | Air-conditioned cab available |
In addition, comfort and control remain excellent during long working days.
Hydraulic System
| Item | Details |
|---|---|
| Hydraulic Type | Open center |
| Rear Valves | 2 or 3 |
| Mid Valves | 2 (optional) |
| Pump Flow | 16.9 gpm (64.0 lpm) |
| Total Flow | 26.6 gpm (100.7 lpm) |
| Steering Flow | 9.7 gpm (36.7 lpm) |
Therefore, the hydraulic system supports loaders and multiple attachments with ease.
Tractor Hitch Capacity
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Rear Lift (24″/610mm) | 5,620 lbs (2,549 kg) |
| Optional Rear Lift | 7,351 lbs (3,334 kg) |
Thus, the T5.120 offers strong lifting power for modern implements.
Power Take-Off (PTO)
| Item | Details |
|---|---|
| Rear PTO | Independent |
| PTO Clutch | Hydraulic wet disc |
| Rear PTO Type | 540 / 1000 |
Because of this flexibility, the tractor adapts well to mixed farming operations.
Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 89.9 in (228 cm) |
| Weight | 7,672 – 8,157 lbs |
| Front Tire | 14.9R24 |
| Rear Tire | 18.4R34 |
As a result, stability remains high even during transport and loader work.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Charging Output | 120 A (200 A optional) |
| Battery Voltage | 12 V |
| Battery Capacity | 110 Ah |
| Battery CCA | 800 |
Thus, electrical reliability stays strong in demanding conditions.
Why Choose the New Holland T5.120
The Used New Holland T5.120 is popular worldwide because it offers:
-
Powerful 120 hp FPT diesel engine
-
Smooth 24-speed power shift transmission
-
Strong PTO output for heavy implements
-
Reliable hydraulics for loader work
-
Comfortable ROPS or cab configuration
Therefore, it is ideal for professional farms and contractors.
Used New Holland Tractor Export by EVERY FARM TRACTOR
EVERY FARM TRACTOR can export the New Holland T5.120 to customers around the world.
We provide inspection, export documentation, and global shipping support.
If you are searching for a reliable Used New Holland Tractor, the T5.120 is a proven solution.
Please contact EVERY FARM TRACTOR for availability and export inquiries.
