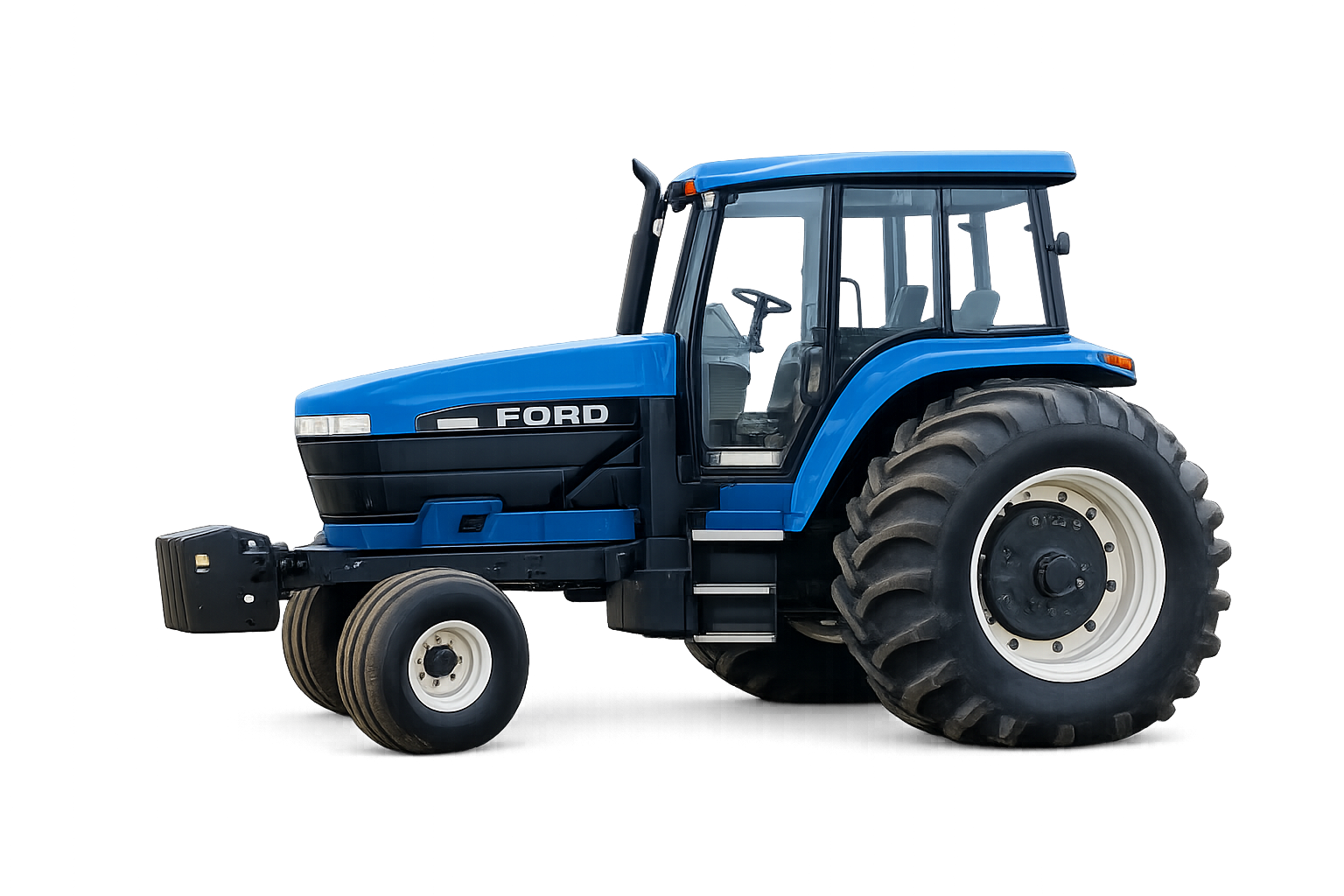

Ford 8770 Tractor
Production Years: 1993 – 2002
Series: 70 Genesis Series
Category: Row-Crop Tractor
Manufacturer: Ford
Built in: Winnipeg, Manitoba, Canada
Original Price: USD 90,500 (2000)
Overview
The Ford 8770 is a high-horsepower row-crop tractor from the 70 Genesis Series, positioned between the 8670 and the flagship 8870. Designed for large-scale farming, it combines a powerful 7.5L Ford diesel engine, full power shift transmission, and high-capacity hydraulics. Its advanced Genesis cab and durable drivetrain make it a preferred model in global export markets for heavy tillage, planting, and large PTO-driven implements.
Series Map
| Model | Production Years | Engine Power |
|---|---|---|
| Ford 8670 | 1993 – 2000 | 170.0 hp |
| Ford 8770 | 1993 – 2000 | 190.0 hp |
| Ford 8870 | 1993 – 2000 | 210.0 hp |
Engine
| Item | Specification |
|---|---|
| Engine model | Ford diesel |
| Displacement | 7.5 L |
| Cylinders | 6-cylinder |
| Fuel type | Diesel |
| Cooling | Liquid-cooled |
| Aspiration | Turbocharged |
The Ford 7.5L turbocharged engine delivers strong torque and stable power under continuous heavy load.
Power
| Measurement | Output |
|---|---|
| Engine power | 190 hp / 141.7 kW |
| PTO power (claimed) | 160 hp / 119.3 kW |
| Drawbar power (tested) | 142.3 hp / 106.1 kW |
| PTO power (tested) | 185.9 hp / 138.6 kW |
Transmission
| Option | Details |
|---|---|
| Standard | 16-speed full power shift |
| Optional | 32-speed creeper |
The full power shift transmission enables clutch-free shifting for higher efficiency and operator comfort.
Mechanical Features
| Item | Specification |
|---|---|
| Drive | 2WD or 4WD |
| Steering | Power steering |
| Brakes | Wet disc |
| Cab | Standard with air-conditioning |
Capacities
| System | Capacity |
|---|---|
| Fuel tank | 110 gal / 416.4 L |
| Hydraulic system | 36.9 gal / 139.7 L |
| Front hubs | 1.7 qts each / 1.6 L |
| Front differential | 13 qts / 12.3 L |
Hydraulics
| Item | Specification |
|---|---|
| System type | Closed-center load sensing |
| Hydraulic capacity | 36.9 gal / 139.7 L |
| System pressure | 2750 psi / 189.6 bar |
| Valves | 3 |
| Pump flow | 24 gpm / 90.8 L/min |
| Total flow | 31 gpm / 117.3 L/min |
| Optional MegaFlow | 55 gpm / 208.2 L/min |
Tractor Hitch
| Item | Specification |
|---|---|
| Rear hitch type | Category III |
| Rear lift capacity | 12,500 lb / 5,670 kg |
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO type | Independent |
| PTO clutch | Electro-hydraulic wet disc |
| Rear PTO speed | 1000 rpm (1.375″) |
| Rated engine speed | 1000 @ 1903 rpm |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 118.3 in / 300 cm |
| Wheelbase (SuperSteer) | 122.6 in / 311 cm |
| Operating weight | 16,600 – 19,000 lb |
| Front tires | 14L-16.1 |
| Rear tires | 18.4R42 |
Attachments
| Attachment | Availability |
|---|---|
| Front-end loader | Compatible |
Electrical System
| Item | Specification |
|---|---|
| Ground | Negative |
| Charging system | Alternator |
| Charging output | 130 amps |
| Batteries | 2 |
| Battery voltage | 12 V |
| Battery CCA | 950 |
Variants
| Variant | Notes |
|---|---|
| 2160 | Similar to Buhler Versatile model |
Summary
The Ford 8770 represents an excellent balance of power, technology, and durability in the Genesis Series lineup. With its 190 hp engine, advanced hydraulics, and comfortable cab, it remains a strong performer for large-scale agricultural operations. Its continued popularity in international markets highlights its reputation for reliability, productivity, and long service life.
