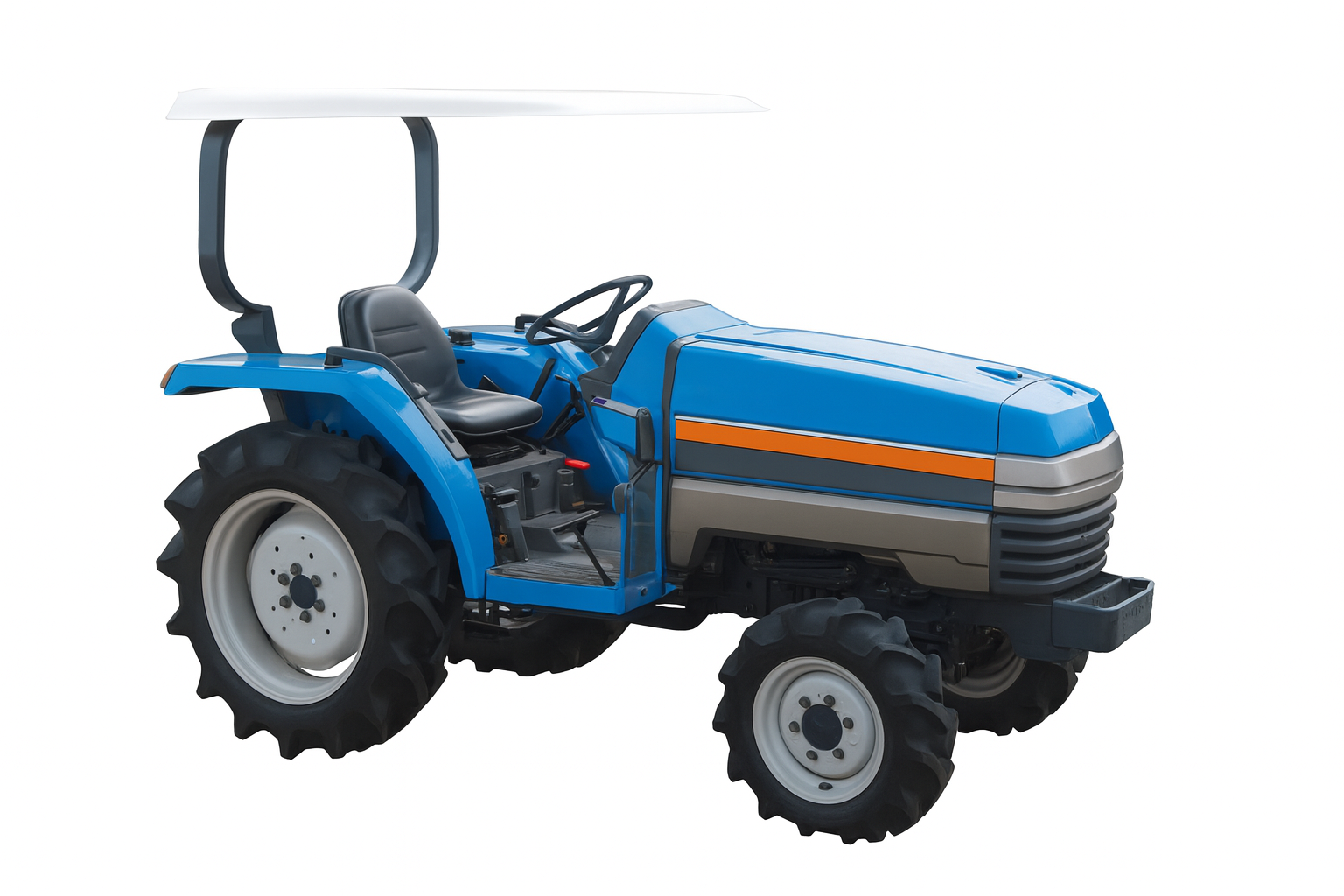

The Iseki TG313 is a compact utility tractor from the TG Series, built for farmers who need more power than the TG293 while staying in a compact 4WD size.
It uses a 1.5L Iseki E3CD 3-cylinder diesel engine and a 16-forward/16-reverse transmission, making it suitable for tillage, mowing, spraying, loader work and trailer towing.
Below is an English specification sheet, formatted for your EVERY FARM TRACTOR website.
Overview – Iseki TG313 Compact Utility Tractor
| Item | Specification |
|---|---|
| Manufacturer | Iseki |
| Model | TG313 |
| Series | TG Series |
| Tractor type | Compact utility tractor |
| Production years | ???? – 2004 (end of production 2004) |
| Engine model | Iseki E3CD 3-cyl diesel, 1.5 L |
| Rated engine power | 30.6 hp (22.8 kW) |
| Drive configuration | 4×4 MFWD (4WD) |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| ROPS / Cab | Two-post ROPS; cab optional |
| Typical applications | Rotary tiller, plough, mower, sprayer, loader, trailer work |
Engine – Iseki E3CD 1.5L 3-Cylinder Diesel
| Item | Specification |
|---|---|
| Engine model | Iseki E3CD |
| Engine type | 4-stroke, liquid-cooled diesel, 3 cylinders |
| Displacement | 1.5 L (91.4 cu in) |
| Rated power | 30.6 hp (22.8 kW) |
| Rated speed | 2,800 rpm |
| Fuel tank capacity | 35.0 L (9.25 US gal) |
| Aspiration | Naturally aspirated |
| Fuel system | Mechanical diesel injection |
| Cooling system | Liquid cooled |
| Starter | Electric, 12 V |
Engine description
The E3CD engine is a robust 1.5L diesel designed for long life and low fuel consumption. Its 30.6 hp output and good low-rpm torque make the TG313 capable of handling heavier implements than smaller TG models, while staying compact and easy to drive.
Transmission & Driveline
| Item | Specification |
|---|---|
| Transmission type | 16-speed manual (gear drive) |
| Gear range | 16 forward / 16 reverse |
| Clutch | Dry disc |
| Drive | 4×4 MFWD (mechanical front-wheel drive) |
| Steering | Power steering |
| Brakes | Wet disc |
| ROPS / cab | Two-post ROPS standard, factory cab optional |
Usage notes
-
The 16×16 transmission gives very fine speed control for jobs such as rotary tilling, seeding, spraying and mowing.
-
4WD and wet disc brakes improve traction and safety on slopes, in muddy paddies and on soft fields.
PTO, 3-Point Hitch & Hydraulics
| Item | Specification |
|---|---|
| 3-point hitch (rear) | Category I |
| Hitch control | Position control |
| Rear PTO type | Multi-speed rear PTO |
| Rear PTO speeds | 584 / 777 / 1066 / 1259 rpm (1.375″ shaft) |
| Typical hydraulic uses | 3-point implements, rear tipping trailer, loader (where fitted) |
Implement compatibility
With Category I hitch and multi-speed PTO, the TG313 can operate:
-
Rotary tillers and power harrows
-
Rear or flail mowers
-
Ploughs, seeders and spreaders
-
Orchard sprayers and other PTO-driven tools
This makes it a flexible machine for mixed farming, orchards and estate maintenance.
Dimensions, Weight & Tires
| Item | Specification |
|---|---|
| Wheelbase | 1,75 m (68.9 in) |
| Overall length | 3,14 m (124 in) |
| Overall width | 1,42 m (56.1 in) |
| Overall height | 1,96 m (77.4 in) (to ROPS) |
| Ground clearance | 37 cm (14.6 in) |
| Operating weight | 1,319–1,480 kg (2,910–3,263 lb), ROPS vs cab |
| Front tread | 115 cm (45.3 in) |
| Rear tread | 109–141 cm (43.3–55.9 in) |
| Front tires (ag) | 8-16 |
| Rear tires (ag) | 12.4-24 |
Size impression
The TG313 is still compact enough for orchards, vineyards and narrow farm roads, but its longer wheelbase and higher weight give better stability for loader work and towing compared with smaller TG models.
Electrical System
| Item | Specification |
|---|---|
| System voltage | 12 V |
| Ground | Negative |
| Battery | 12 V (typical ~55 Ah) |
Model Summary for Overseas Buyers
The Iseki TG313 is a 30.6 hp compact 4WD tractor that offers:
-
A durable 1.5L E3CD 3-cylinder diesel engine
-
16×16 gear transmission for precise speed control
-
Strong 4WD chassis with power steering and wet disc brakes
-
Multi-speed rear PTO (584–1259 rpm) for many implement types
-
Category I 3-point hitch suitable for a wide range of farm tools
It is an excellent choice for farmers and contractors who need a compact but powerful tractor for daily agricultural work, orchards, and estate maintenance.
