Iseki TG233 Specifications | 22.7 hp Compact 4WD Tractor

Posted on by

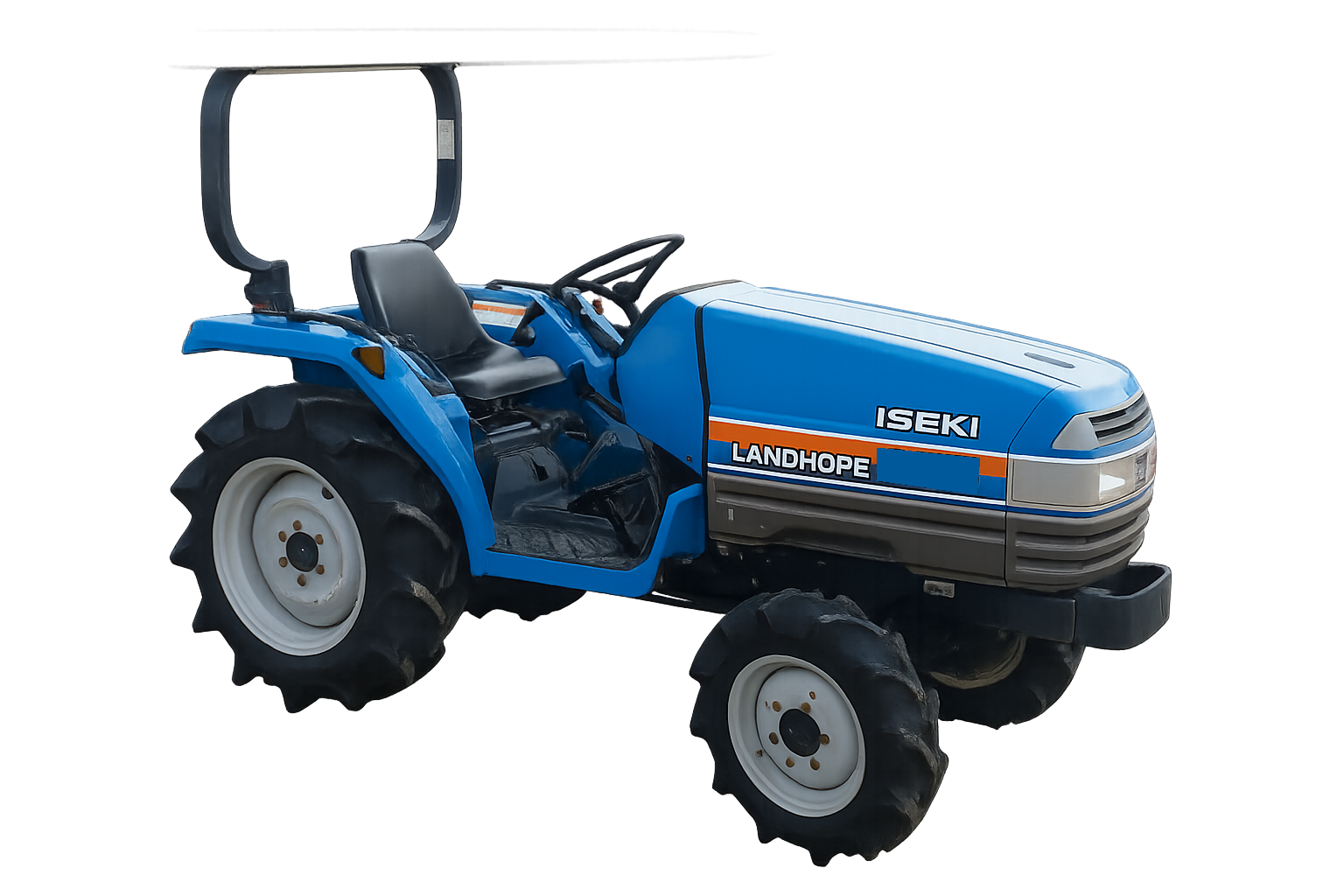

The Iseki TG233 is a 22.7 hp compact utility tractor from the Iseki TG Series, produced until 2004.
With a 1.5L 3-cylinder diesel engine, a 16-speed transmission, and durable 4WD driveline, the TG233 is built for versatile farm work—tillage, mowing, loader tasks, and orchard or greenhouse operations.
Its strong build, smooth power steering, and optional cab make it popular among small and medium-scale farmers.

Below is a complete English specification sheet optimized for your EVERY FARM TRACTOR website.

Iseki TG233 – Overview

Item Specification
Manufacturer Iseki
Model TG233
Series TG Series
Production years Until 2004 (start year unspecified)
Tractor type Compact Utility Tractor
Engine model Iseki 1.5L 3-cyl diesel
Rated engine power 22.7 hp (16.9 kW)
Drive configuration Four-wheel drive (4WD)
Steering Power steering
Brake type Wet disc brakes
ROPS Two-post ROPS; cab optional
Best applications Tillage, mowing, spraying, loader work, small farm operations

Engine – Iseki 1.5L 3-Cylinder Diesel

Item Specification
Engine type 4-stroke, liquid-cooled diesel
Cylinders 3
Displacement 1.5 liters
Rated power 22.7 hp (16.9 kW)
Fuel tank capacity 35.0 L (9.25 US gal)
Aspiration Natural aspirated
Fuel system Mechanical diesel injection
Cooling system Liquid-cooled
Starter Electric

Engine characteristics:
This 1.5L diesel engine offers good torque in the low RPM range, making the TG233 suitable for rotary tillers, mid-mount mowers, sprayers, and front-loader work. It is well-known for low fuel consumption and long-life reliability.

Transmission – 16-Speed Gear Drive

Item Specification
Transmission type 16-speed manual gearbox
Forward/reverse Multiple forward/reverse gears
Clutch Dry clutch (two-stage typical for PTO models)
4WD system Mechanical front-wheel drive

Transmission description:
The 16-speed gearbox gives a wide range of working speeds suited for heavy soil work, mowing, and precise field operations. The smoother power delivery and gear selection allow operators to maintain consistent ground speed.

Hydraulics & 3-Point Hitch

Item Specification
Rear hitch type Category I
Hitch control Position control
Typical compatibility Tillers, ploughs, harrows, sprayers, mowers

Hydraulic system notes:
The TG233’s hydraulic capacity supports a variety of implements normally used on compact farms, orchards, and small fields.

PTO (Power Take-Off)

Item Specification
Rear PTO type Multi-speed (independent via clutch mechanism)
Rear PTO speeds 577 / 767 / 1052 / 1243 rpm (1.375 shaft)

PTO usage examples:

  • Rotary tillers

  • Rear mowers

  • Sprayers

  • Fertilizer spreaders

  • Post-hole diggers

Dimensions, Weight & Tires

Item Specification
Wheelbase 155 cm (61.4 in)
Operating weight 1,200–1,360 kg (2,646–2,998 lb)
Front tires 6–14
Rear tires 9.5–22
Tractor size Compact, suitable for orchard/mid-size farm

Size impression:
Despite being compact, the TG233 has enough mass for traction and stability with 4WD engaged. Its narrow width makes it ideal for orchards, vineyards, and greenhouses where space is limited.

Electrical System

Item Specification
System voltage 12 V
Ground Negative
Battery 12 V (capacity unspecified, typical 55 Ah)

Model Summary for Buyers

The Iseki TG233 is a strong, reliable 22.7 hp compact 4WD tractor offering:

  • A proven 1.5L 3-cylinder diesel engine

  • Smooth power steering and wet disc brakes

  • Versatile 16-speed transmission

  • Multiple PTO speeds for a wide implement range

  • Optional cab for all-weather operation

It is well-suited for farmers needing an agile, fuel-efficient tractor for daily agricultural tasks.
