Kubota GB14 Specifications & Model Guide
Overview
| Item | Details |
|---|---|
| Model | Kubota GB14 |
| Series | GB Series |
| Production Years | 1997 – 2001 |
| Tractor Type | Sub-Compact Utility Tractor |
| Manufacturer | Kubota (Japan) |
| Engine Power | 13.8 hp (10.3 kW) |
| Drive System | 4WD |
| ROPS | Two-post ROPS (standard) |
| Series Map | GB13 / GB14 / GB15 → GB140 |
Model Description

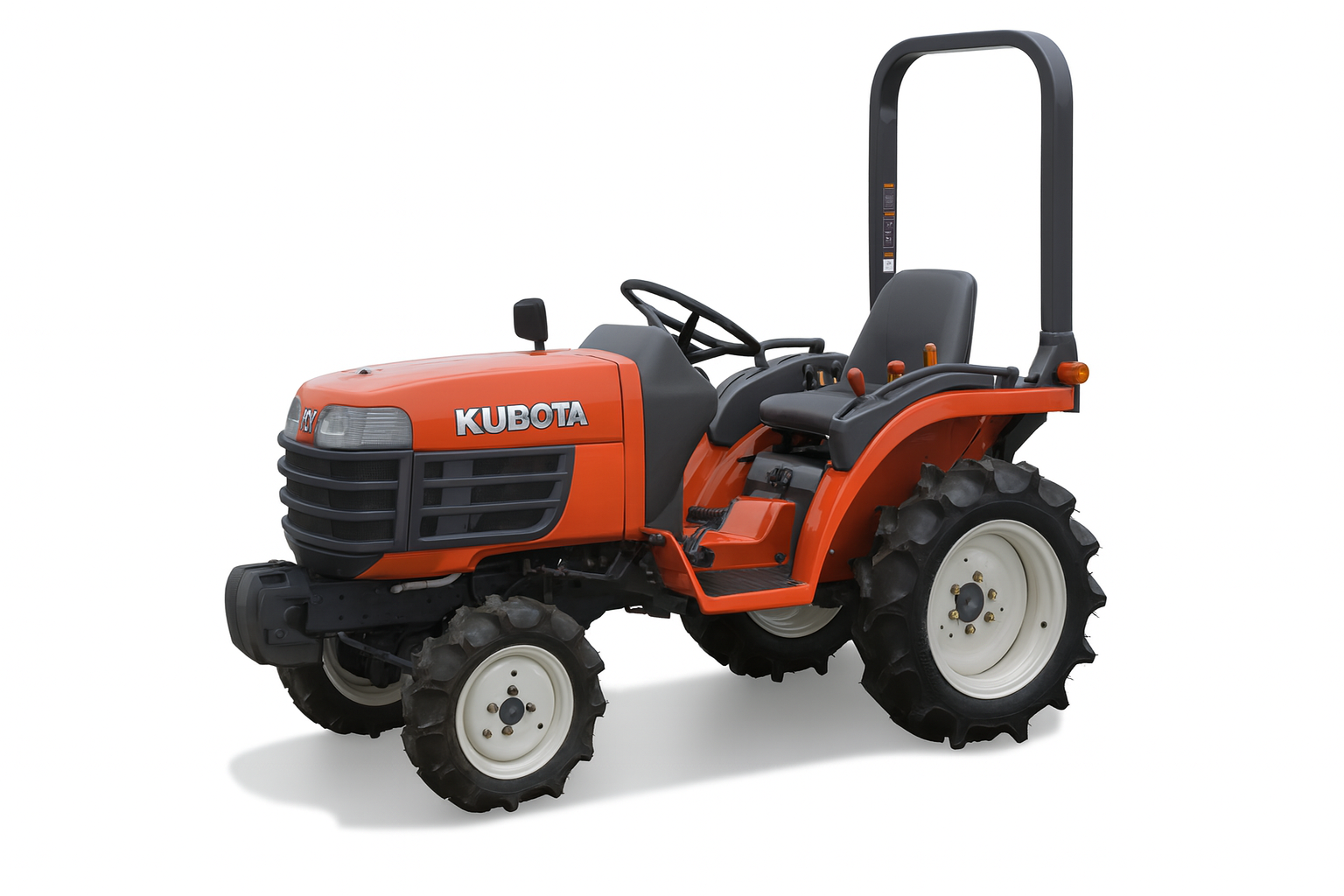

The Kubota GB14 is a sub-compact utility tractor designed for small farms, orchards, vegetable fields, and garden maintenance.
Despite its compact size, it offers strong pulling power, reliable 4WD traction, and a simple gear transmission. The GB14 is ideal for rotary tilling, mowing, light transport, and many other daily farming tasks in narrow or tight working areas.
Engine
| Specification | Details |
|---|---|
| Engine Manufacturer | Kubota |
| Engine Type | 4-stroke, 3-cylinder diesel |
| Displacement | 0.7 L (approx. 700 cc) |
| Power Output | 13.8 hp (10.3 kW) |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 3.4 gal (12.9 L) |
| Cooling System | Liquid-cooled |
| Aspiration | Natural |
| Cylinders | 3 |
Engine Notes
The 0.7L Kubota diesel engine on the GB14 is compact yet durable.
It delivers smooth torque at low rpm, low fuel consumption, and easy cold starting, which makes it perfect for repeated short-distance field work and seasonal operations.
Transmission
| Specification | Details |
|---|---|
| Transmission Type | 6-speed gear transmission |
| Gears | 6 forward (plus reverse) |
| Drive | Mechanical 4WD |
| Steering | Manual steering |
| Brakes | Mechanical wet disc brakes |
Transmission Notes
The 6-speed gear transmission is simple and robust.
Operators can easily select the best speed for tillage, mowing, or transport, keeping maintenance and running costs low.
PTO & Hitch
| Specification | Details |
|---|---|
| Rear Hitch Type | Category 0 |
| Hitch Control | Position control |
| Rear PTO Type | 540 / 1000 rpm (1.375″ spline) |
PTO & Hitch Notes
With a Category 0 hitch and dual PTO speeds, the Kubota GB14 can operate a wide range of compact implements such as rotary tillers, small mowers, and sprayers, making it a very flexible small tractor.
Dimensions & Tires
| Specification | Details |
|---|---|
| Wheelbase | 50 in (127 cm) |
| Weight | 1,190 lbs (539 kg) |
| Front Tire | 5-12 |
| Rear Tire | 8-16 |
Dimension Notes
Thanks to its short wheelbase and low overall weight, the GB14 can turn tightly and work safely in narrow fields, orchards, and greenhouses where larger tractors cannot enter.
Electrical
| Specification | Details |
|---|---|
| Ground | Negative (electric ground) |
| Battery Voltage | 12 V |
Photos
| Kubota GB14 | Description |
|---|---|
| No official photos listed | A sub-compact tractor suitable for small fields, orchards, and garden use |
