Kubota GB13 Specifications & Model Overview
Overview
| Item | Details |
|---|---|
| Model | Kubota GB13 |
| Series | GB Series |
| Production Years | 1997 – 2001 |
| Tractor Type | Sub-Compact Utility Tractor |
| Manufacturer | Kubota (Japan) |
| Engine Power | 12.9 hp (9.6 kW) |
| Drive System | 4WD |
| ROPS | Two-post ROPS (standard) |
| Series Map | GB13 → GB130 / GB14 |
Model Description
The Kubota GB13 is a lightweight and highly maneuverable sub-compact tractor designed for small farms, orchards, greenhouses, and residential land maintenance. Despite its compact size, the GB13 features a durable Kubota diesel engine, smooth gear transmission, and Category 0 rear hitch, making it suitable for tilling, mowing, and light field operations.
Engine
| Specification | Details |
|---|---|
| Engine Model | Kubota 3-cylinder diesel |
| Displacement | 0.7L (approx. 719cc) |
| Power Output | 12.9 hp (9.6 kW) |
| Fuel Tank Capacity | 3.4 gal (12.9 L) |
| Cooling System | Liquid-cooled |
| Cylinders | 3 |
| Fuel Type | Diesel |
Engine Notes
The 0.7L Kubota diesel engine is known for excellent reliability, low fuel consumption, and smooth operation. Its compact design allows the tractor to function effectively in narrow fields and tight working areas.
Transmission
| Specification | Details |
|---|---|
| Transmission Type | 6-speed gear |
| Drive | Mechanical 4WD |
| Steering | Manual steering |
| Brakes | Mechanical wet disc brakes |
Transmission Notes
The 6-speed gear transmission offers simple and efficient operation, ideal for users who need dependable performance for small-scale farming tasks.
Dimensions & Tires
| Specification | Details |
|---|---|
| Wheelbase | 50 in (127 cm) |
| Weight | 1,157 lbs (524 kg) |
| Front Tires | 4.00-12 |
| Rear Tires | 7-16 |
| Rear Hitch | Category 0 |
| Hitch Control | Position control |
| PTO Type | Rear PTO 540 / 1000 rpm (1.375 spline) |

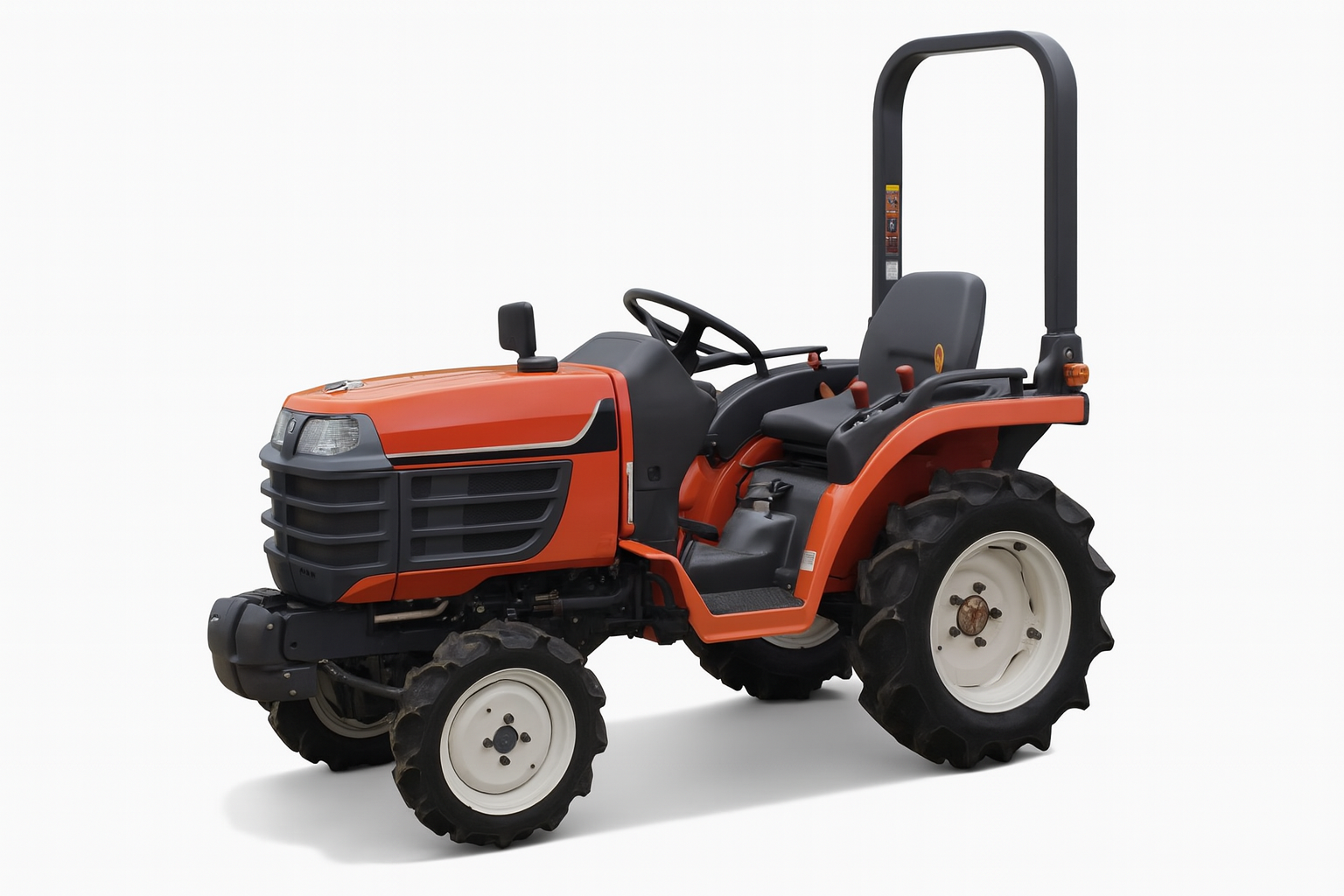

Photos
| Kubota GB13 | Description |
|---|---|
| Photo available in dataset | Compact sub-utility tractor suitable for small fields and gardens |
