Ford 7710 Overview
The Ford 7710 is a high-performance row-crop tractor produced from 1982 to 1990 as part of Ford’s renowned 10 Series.
Offered as the row-crop counterpart to the Ford 7610 utility model, the 7710 was engineered for heavy field operations, long working hours, and demanding agricultural implements.
Manufactured in Romeo, Michigan (USA) and Basildon, England, the Ford 7710 became one of Ford’s most successful high-horsepower tractors of the 1980s.
With an original price of $28,000 in 1990, it delivered excellent value for medium and large farms.
Overview Table
| Item | Details |
|---|---|
| Model | Ford 7710 |
| Series | Ford 10 Series |
| Tractor Type | Row-crop tractor |
| Production Years | 1982–1990 |
| Manufacturer | Ford |
| Factories | Romeo (USA), Basildon (UK) |
| Original Price | $28,000 (1990) |
| Variants | 7610 (utility), 7710 (row-crop) |
| Drive Options | 2WD / 4WD |
| ROPS | Two-post ROPS (cab optional) |
| Brakes | Mechanical differential wet disc |
| Steering | Power steering |
Engine
| Item | Specification |
|---|---|
| Engine Model | Ford diesel |
| Displacement | 4.4L, 4-cylinder |
| Engine Power (gross) | 97 hp (72.3 kW) |
| PTO Power (claimed) | 86 hp (64.1 kW) |
| Fuel Capacity | 47 gal (177.9 L) |
| Cooling | Liquid-cooled |
Engine Description
The Ford 4.4L 4-cylinder diesel engine offers smooth power delivery, excellent torque, and long service life. Its simple mechanical design and wide parts availability make it a preferred model for export markets and heavy field operations.
Transmission
Multiple transmission options were available, allowing buyers to choose the ideal configuration for their farm:
| Transmission Type | Speeds | Notes |
|---|---|---|
| Standard Gear | 8-speed | Simple, strong, low maintenance |
| Power Shift | 16-speed two-speed | Allows quick shifts under load |
| Synchromesh | 16-speed partial power shift | Smooth gear transitions |
These drivetrains made the 7710 suitable for tillage, planting, transport, and loader work.
Power Ratings
| Test Type | Power |
|---|---|
| Gross Engine Power | 97 hp (72.3 kW) |
| PTO (claimed) | 86 hp (64.1 kW) |
| Drawbar (tested) | 74.08 hp (55.2 kW) |
| PTO (tested) | 86.95 hp (64.8 kW) |
The tested values confirm the Ford 7710’s reputation as a dependable, high-output row-crop tractor.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Hydraulic Capacity | 15 gal (56.8 L) |
| System Pressure | 2500 psi (172.4 bar) |
| Pump Flow | 18.2 gpm (68.9 L/min) |
| Steering Flow | 2.74 gpm (10.4 L/min) |
| Rear Valves | 2 |
The 18.2 gpm hydraulic flow is particularly strong for its class and allows for responsive loader and implement performance.
Tractor Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II / I |
| Rear Lift @ 24″ | 4,473 lbs (2,028 kg) |
| Hitch Control | Position and draft control |
Power Take-off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 |
| PTO RPM (engine speed) | 540 @ 1902 rpm |
| 1000 @ 2059 rpm |
Dimensions & Tires
| Item | 2WD | 4WD |
|---|---|---|
| Wheelbase | 101.6 in (258 cm) | 97.6 in (247 cm) |
| Item | Specification |
|---|---|
| Operating Weight | 6,587–8,650 lbs |
| Front Tire | 7.50–16 |
| Rear Tire | 15.5–38 |
Attachments
| Attachment | Notes |
|---|---|
| Front-End Loader | Ideal for farm handling, silage, and general utility operations |
Photos
Recommended images for the EVERY FARM TRACTOR website:
-

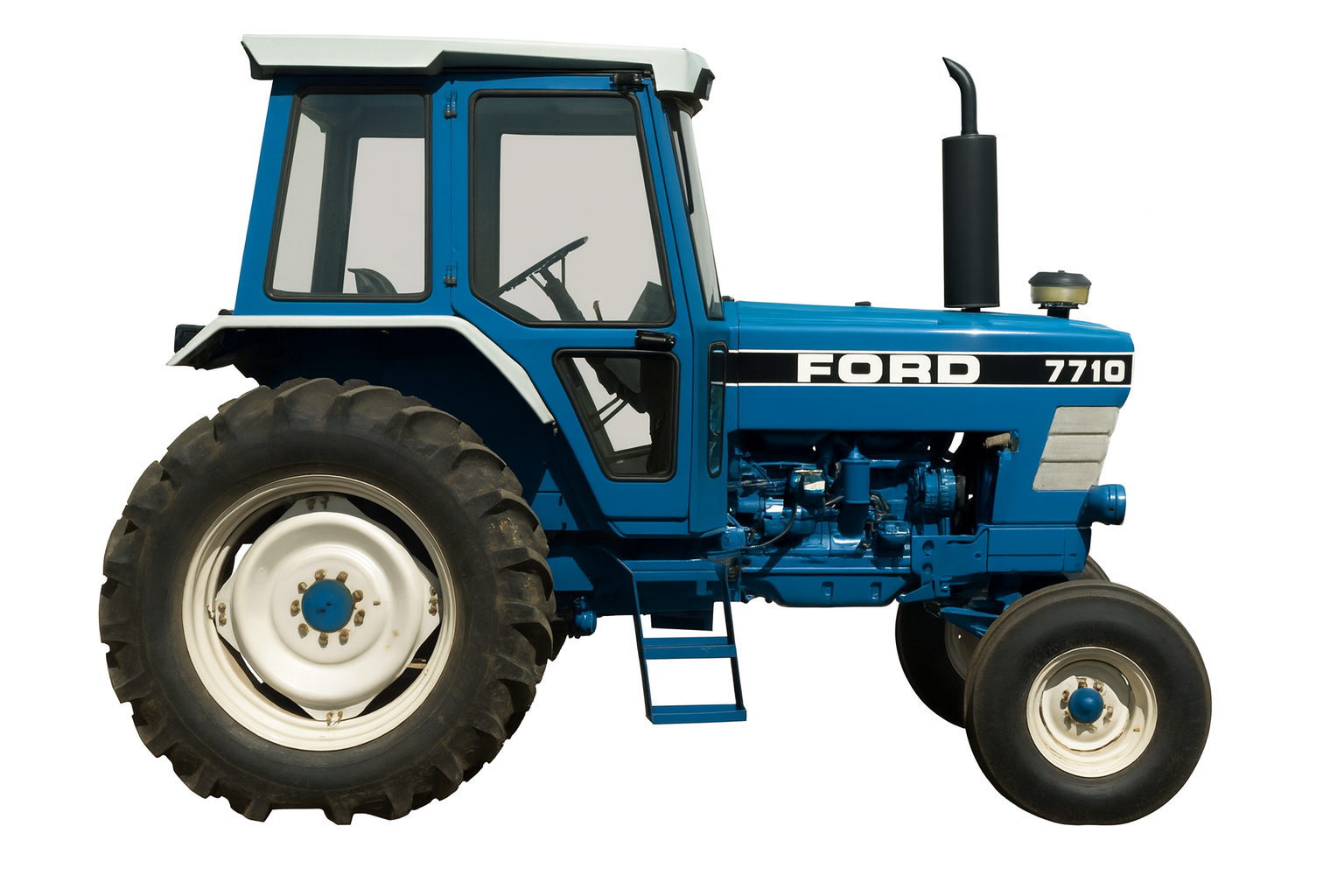

Side profile of Ford 7710
-
Cab and open-station operator views
-
Rear 3-point hitch & PTO
-
4WD axle close-up
-
Loader-equipped version
(Actual photos can be added when available.)
Summary
The Ford 7710 is one of Ford’s most respected row-crop tractors, offering strong hydraulic power, excellent PTO performance, and versatile transmission options.
Its 97-horsepower engine, rugged construction, and comfortable operator platform make it a popular choice even today in international markets.
