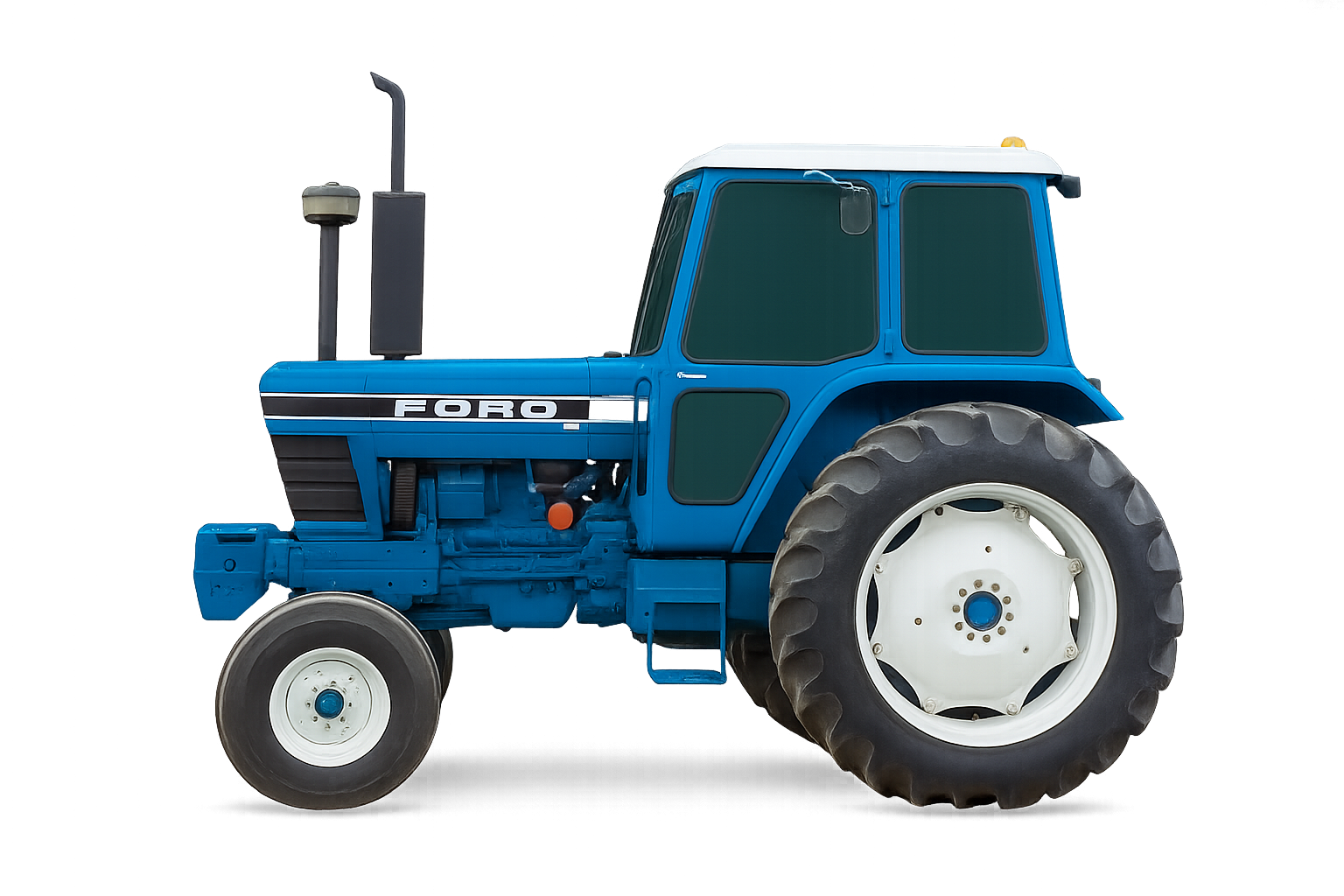

Ford 7700 Overview
The Ford 7700 is a 96-horsepower row-crop tractor produced from 1975 to 1981.
Designed for high productivity and versatility, it sits between the Ford 7600 and the later 7710 in the row-crop lineup.
Built for demanding agricultural work, the 7700 offered multiple engine configurations, strong hydraulics, and advanced (for its era) transmission options including a 16-speed partial power shift.
With an original price of $24,300 in 1981, the Ford 7700 delivered excellent value for medium- to large-scale farming operations.
Overview Table
| Item | Details |
|---|---|
| Model | Ford 7700 |
| Years Produced | 1975–1981 |
| Series | 7000 Row-Crop Series |
| Tractor Type | Row-crop tractor |
| Manufacturer | Ford |
| Original Price | $24,300 (1981) |
| Variants | 7600 (utility chassis), 7700 (row-crop chassis) |
| Drive Options | 2WD or 4WD |
| Operator Station | Open station (cab optional) |
| Steering | Power assist |
| Brakes | Differential wet disc |
Engine
The Ford 7700 offered two engine options, both known for high torque, reliability, and fuel efficiency.
| Item | Specification |
|---|---|
| Engine Models | Ford diesel |
| Displacement Options | 4.2L 4-cyl or 4.4L 4-cyl |
| Gross Power | 96.7 hp (72.1 kW) |
| Net Power | 91 hp (67.9 kW) |
| Fuel Capacity | 47 gal (177.9 L) |
| Cooling | Liquid-cooled |
Engine Description
Both the 4.2L and 4.4L Ford diesel engines deliver smooth power, strong torque at low RPM, and excellent durability. These engines are widely known for simple mechanical construction, making them ideal for export markets where easy maintenance is essential.
Transmission
| Transmission Type | Speeds | Notes |
|---|---|---|
| Partial Power Shift | 16-speed | Fast shifting under load, ideal for fieldwork |
| Standard Gear | 8-speed | Durable and simple to maintain |
The 16-speed partial power shift is one of the key advantages of this model, offering better control during tillage, planting, and transport work.
Power Ratings
| Item | Power Output |
|---|---|
| Engine (gross) | 96.7 hp (72.1 kW) |
| Engine (net) | 91 hp (67.9 kW) |
| PTO (claimed) | 84 hp (62.6 kW) |
| Drawbar (tested) | 67.62 hp (50.4 kW) |
| PTO (tested) | 84.38 hp (62.9 kW) |
These tested values confirm the Ford 7700’s strong performance in heavy-duty agricultural applications.
Hydraulics
| Item | Specification |
|---|---|
| System Type | Open center |
| Hitch Type | Category II |
| Rear Lift Capacity | 4,435 lbs (2,011 kg) |
This lift capacity supports medium and large implements including plows, cultivators, planters, and sprayers.
Power Take-Off (PTO)
| Item | Specification |
|---|---|
| PTO Type | Independent |
| PTO Speeds | 540 / 1000 rpm |
| PTO Shaft | 1.375-inch |
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 101.6 in (258 cm) |
| Operating Weight | 8,400 lbs (3,810 kg) |
| Front Tire | 7.50-18 |
| Rear Tire | 18.4-34 |
The long wheelbase provides good stability for heavy draft work.
Attachments
| Attachment | Notes |
|---|---|
| Front-End Loader | Suitable for material handling, silage, manure, and general farm tasks |
Photos
You may upload the following recommended photos when available:
-
Right-side profile of Ford 7700
-
Operator’s station (open or cab version)
-
Engine close-up
-
Rear 3-point hitch and PTO
-
Optional loader attachment
Summary
The Ford 7700 is a powerful, reliable, and highly capable row-crop tractor built for demanding agricultural work.
Its combination of a 96-hp engine, strong hydraulics, multiple transmission options, and heavy-duty chassis continues to make it a popular choice in export markets.
