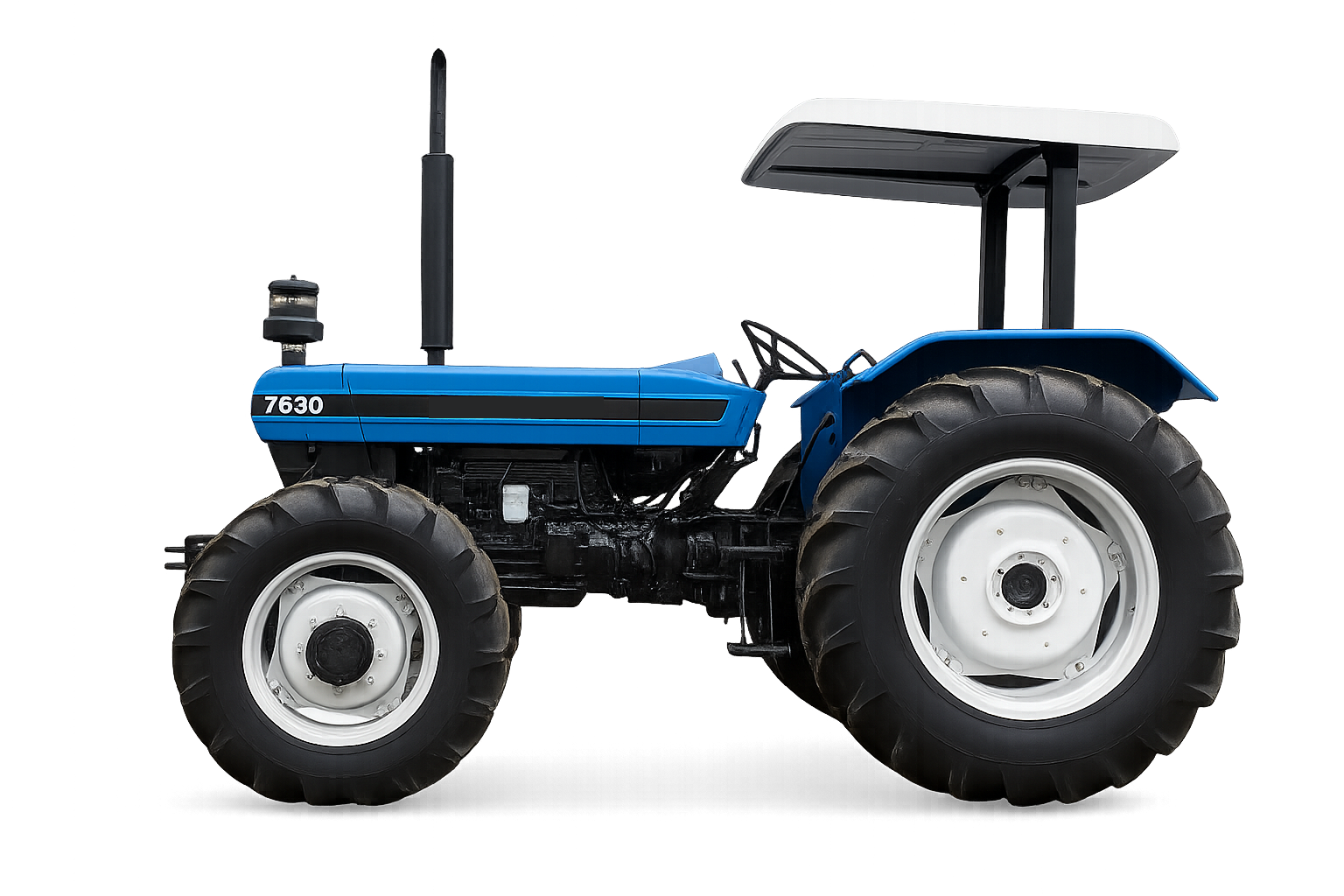

Ford 7630 Overview
The Ford 7630 is a high-power utility tractor produced between 1992 and 1997 as part of the 30 Superforça Series.
Built in Curitiba, Brazil by Ford (later part of New Holland), this model is designed for demanding field work, heavy tillage, and large implements.
With a 103 hp engine, four-wheel drive, and strong hydraulic performance, the Ford 7630 is a popular choice in Latin America and export markets for medium to large farms that require reliable power and simple, mechanical technology.
Overview Table
| Item | Details |
|---|---|
| Model | Ford 7630 |
| Series | 30 Superforça Series |
| Tractor Type | Utility tractor |
| Production Years | 1992–1997 |
| Manufacturer | Ford (a part of New Holland) |
| Factory | Curitiba, Brazil |
| Drive | 4WD (four-wheel drive) |
| Steering | Power steering |
| Brakes | Wet disc brakes |
| ROPS | Two-post ROPS |
Engine
| Item | Specification |
|---|---|
| Engine Manufacturer | Ford |
| Engine Type | 4-cylinder diesel |
| Displacement | 5.0L |
| Engine Power | 103 hp (76.8 kW) |
| Aspiration | Naturally aspirated (typical for this class) |
| Cooling | Liquid-cooled |
Engine Description
The Ford 7630 is powered by a 5.0 liter 4-cylinder diesel engine, designed to deliver strong torque and stable power for heavy draft work. This engine is simple, durable, and suitable for markets where ease of maintenance and rugged performance are essential.
Transmission
| Item | Specification |
|---|---|
| Type | Mechanical gearbox |
| Speeds | 8-speed |
| Configuration | 8 forward gears (plus reverse) |
| Clutch | Dry type (typical for this series) |
The 8-speed transmission provides straightforward, reliable operation for plowing, harrowing, hauling, and general farm work.
Hydraulics
| Item | Specification |
|---|---|
| Hydraulic Type | Open center |
| Pump Flow | 9.2 gpm (34.8 L/min) |
The open-center hydraulic system offers sufficient flow for 3-point implements and basic auxiliary functions.
Tractor Hitch
| Item | Specification |
|---|---|
| Rear Hitch Type | Category II |
| Hitch Control | Position and draft control (typical for utility tractors in this class) |
This setup allows the Ford 7630 to handle a wide range of implements such as plows, harrows, cultivators, planters, and heavy mowers.
Power Take-off (PTO)
| Item | Specification |
|---|---|
| Rear PTO | Independent |
| PTO Type | 540 rpm |
Independent PTO makes it easier to drive implements like mowers, balers, and sprayers while maintaining good control of ground speed.
Dimensions & Tires
| Item | Specification |
|---|---|
| Wheelbase | 89.4 in (227 cm) |
| Operating Weight | 8000 lbs (3628 kg) |
(Tire sizes are not listed in the source, but typical options for this class include heavy-duty rear agricultural tires and matching 4WD front tires.)
Electrical System
| Item | Specification |
|---|---|
| Charging System | Alternator |
| Voltage | 12V electrical system |
Photos
No official photo is included in the original source, but for the EVERY FARM TRACTOR website, we recommend:
-
Side profile of the Ford 7630 in a field
-
Rear view showing 3-point hitch and PTO
-
Operator station and dashboard
-
Front 4WD axle and tires
（実車の写真が用意でき次第、上記のような構成で「Photos」セクションを充実させると、海外ユーザーにとって安心感が高まります。）
Model Summary
The Ford 7630 is a 103HP 4WD utility tractor built for tough work.
Its 5.0L diesel engine, strong chassis, and simple open-center hydraulic system make it a solid choice for farmers who need reliable power without overly complex electronics.
