Iseki TF223 Tractor Specifications and Full Overview
The Iseki TF223 is a versatile compact utility tractor designed for modern small to mid-scale farming.
Equipped with a 1.4L 3-cylinder diesel engine, the TF223 offers significantly higher torque and stability than earlier TF Series models such as the TF193, making it suitable for rotary tilling, plowing, light loader work, and orchard operations.
Its 4WD drive system, 9-speed transmission, and multiple PTO speed selections provide excellent field adaptability, while the folding ROPS structure enhances safety for operators worldwide.
📌 Overview
| Item | Details |
|---|---|
| Model | Iseki TF223 |
| Series | TF Series |
| Tractor Type | Compact Utility Tractor |
| Engine Power | 21.7 hp (16.2 kW) |
| PTO Power | 19.4 hp (14.5 kW) |
| Drive System | 4WD |
| ROPS | Two-post folding |
| Manufacturer | Iseki (Japan) |
| Production | — |
📌 Engine
| Specification | Details |
|---|---|
| Engine Model | Iseki 1.4L 3-cylinder diesel |
| Displacement | approx. 1.4 liters |
| Power | 21.7 hp (16.2 kW) |
| Fuel Tank Capacity | 6.3 gal / 23.8 L |
| Cooling System | Liquid-cooled |
| Fuel Type | Diesel |
| Notes | The 1.4L engine provides strong low-end torque and smooth operation, ideal for heavier attachments and continuous field work. |
📌 Transmission
| Specification | Details |
|---|---|
| Type | 9-speed manual |
| Forward Gears | 9 |
| Reverse Gears | 3 |
| PTO Type | Rear 540 rpm |
| PTO RPM Options | 522 / 818 / 1265 rpm @ 2500 rpm |
📌 Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase | 61 in / 154 cm |
| Weight | 1929 lbs / 874 kg |
| Front Tire | 6-14 |
| Rear Tire | 9.5-22 |
📌 Mechanical Features
| Feature | Details |
|---|---|
| Drive | Four-wheel drive |
| Steering | Manual or optional power steering (varies by region) |
| Brakes | Mechanical |
| ROPS | Folding, 2-post |
📌 PTO & Hitch
| Item | Details |
|---|---|
| Rear Hitch | Type 0 |
| Rear PTO | 540 rpm (1.375 in shaft) |
| PTO RPM | 522 / 818 / 1265 rpm @ 2500 engine rpm |
📌 Electrical
| Item | Details |
|---|---|
| Ground | Negative |
| Battery | 12V |

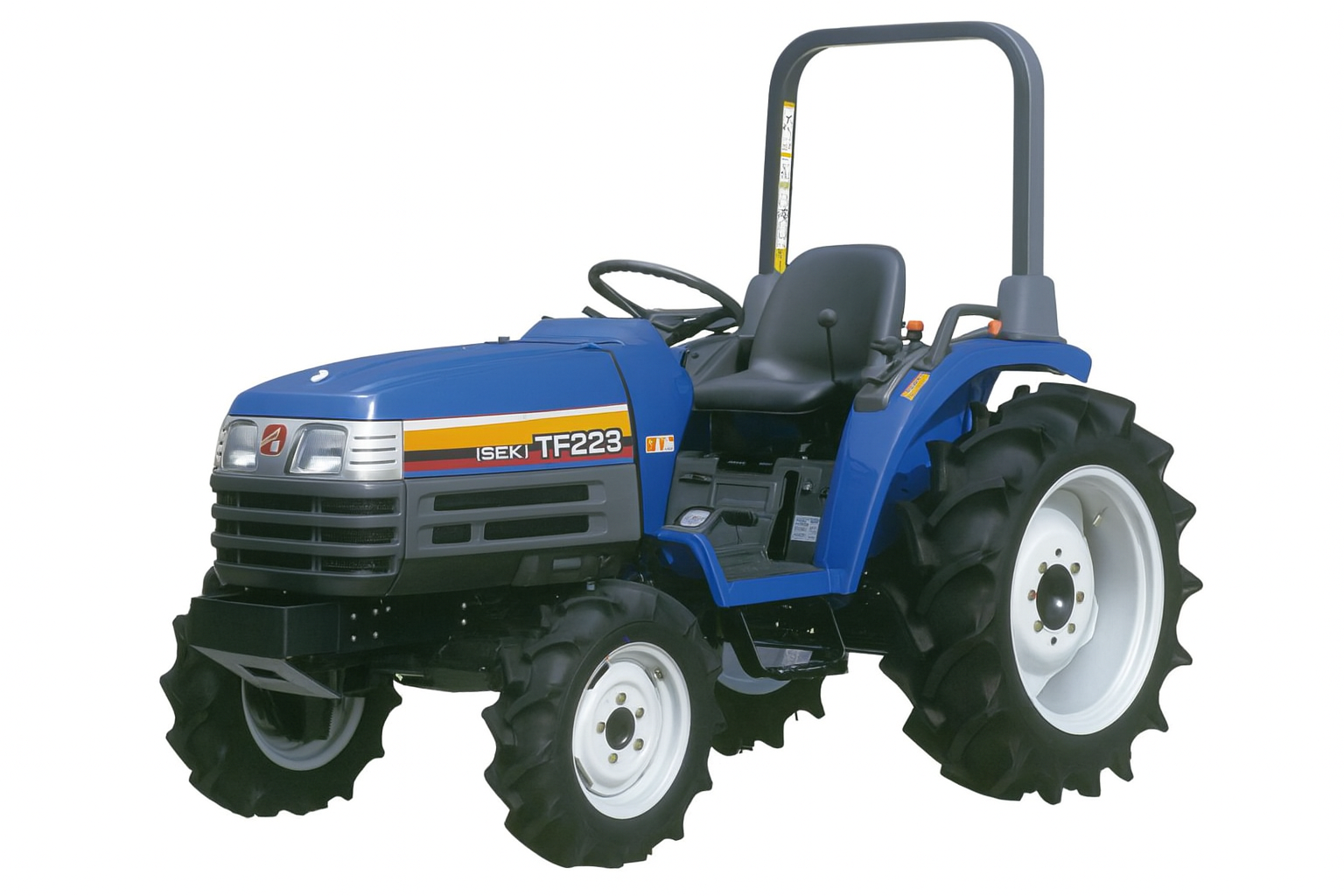

📸 Photos
Iseki TF223 photos are available, though limited. Additional images can be added upon request.
