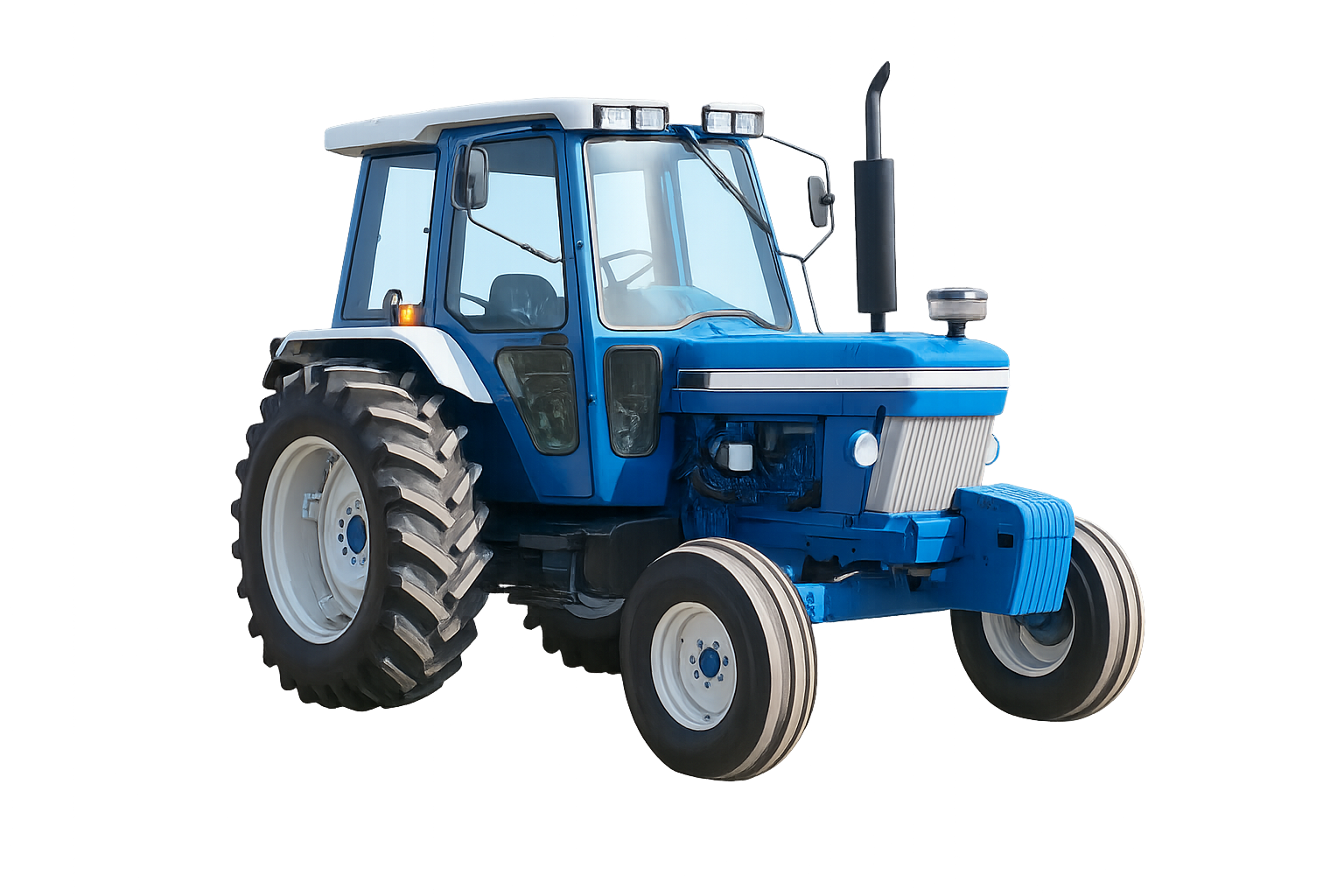

🌍 Ford 7610 – Full Specifications & Model Overview
The Ford 7610 is one of Ford’s most iconic and widely used utility tractors, produced from 1982 to 1992 as part of the successful 10 Series.
Equipped with a strong 4.4L 4-cylinder diesel engine, multiple 8-speed and 16-speed transmission options, and powerful hydraulics, the 7610 is renowned globally for its durability, torque, and ease of maintenance.
It remains a highly demanded export tractor for farming, field work, transport, and loader operations.
📌 Overview
| Item | Details |
|---|---|
| Model | Ford 7610 |
| Production Years | 1982–1992 |
| Tractor Type | Utility Tractor |
| Manufacturer | Ford |
| Original Price (1992) | $29,750 |
| Variants | 7610 (utility), 7610O (low profile), 7710 (row-crop) |
| Drive Options | 2WD or 4WD |
| Steering | Power steering |
| Brakes | Differential mechanical wet disc |
| Operator Station | 2-post ROPS, optional cab with A/C |
🔧 Engine
| Item | Details |
|---|---|
| Engine Model | Ford 4.4L Diesel |
| Engine Type | 4-cylinder, liquid-cooled |
| Displacement | 4.4 liters |
| Gross Engine Power | 97 hp (72.3 kW) |
| PTO (claimed) | 86 hp (64.1 kW) |
| Fuel Capacity | 34.5 gal (130.6 L) |
| Battery | 12V, 128 AH |
| Charging System | Alternator (51 amps) |
⚙️ Transmission
| Transmission Type | Speeds | Notes |
|---|---|---|
| Standard Gear | 8-speed | Simple, durable |
| Partial Power Shift | 16-speed | Smooth shifting under load |
| Synchromesh Partial Power Shift | 16-speed | Enhanced operator control |
🧪 Performance Test Results
| Test | Power Output |
|---|---|
| Drawbar (tested) | 74.08 hp (55.2 kW) |
| PTO (tested) | 86.95 hp (64.8 kW) |
These strong results demonstrate the 7610’s excellent torque and PTO reliability.
🛢 Hydraulics
| Item | Details |
|---|---|
| Hydraulic Type | Open center |
| System Capacity | 15 gal (56.8 L) |
| Pressure | 2500 psi (172.4 bar) |
| Valves | 1 |
| Pump Flow | 18.2 gpm (68.9 L/min) |
| Steering Flow | 2.74 gpm (10.4 L/min) |
🔩 3-Point Hitch & PTO
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Rear Lift (24″) | 4,473 lbs (2,028 kg) |
| PTO | Independent |
| PTO Type | 540 / 1000 rpm |
| PTO Engine RPM | 540 @ 1902 rpm 1000 @ 2059 rpm |
📏 Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase (2WD) | 87.5 in (222 cm) |
| Wheelbase (4WD) | 88.8 in (225 cm) |
| Weight | 5,935 lbs (2,692 kg) |
| Front Tires | 7.50–16 |
| Rear Tires | 16.9–30 |
🧰 Attachments
| Attachment | Notes |
|---|---|
| Front-End Loader | Ideal for lifting, material handling, and farm work |
| PTO Implements | Compatible with mowers, balers, tillers, pumps, etc. |
🆔 Serial Number Reference
| Year | Serial Number Start |
|---|---|
| 1982 | C681910 |
| 1983 | C695880 |
| 1984 | C713459 |
| 1985 | C737800 |
| 1986 | C754100 / BA80100 |
| 1987 | C768000 / BB06622 |
Serial plates are located inside the engine compartment and on the right-front of the transmission.
📘 Model Description for Website
The Ford 7610 offers an excellent balance of power, simplicity, and reliability, making it a top choice for farms around the world.
Its 4.4L diesel engine provides strong pulling power, while its 16-speed transmissions offer flexibility in both field and transport work.
With robust hydraulics, a high lift capacity, and durable construction, the Ford 7610 is well-suited for tillage, mowing, hauling, and loader tasks.
For users seeking a dependable tractor with widely available parts and proven global performance, the 7610 remains one of Ford’s best utility models.
