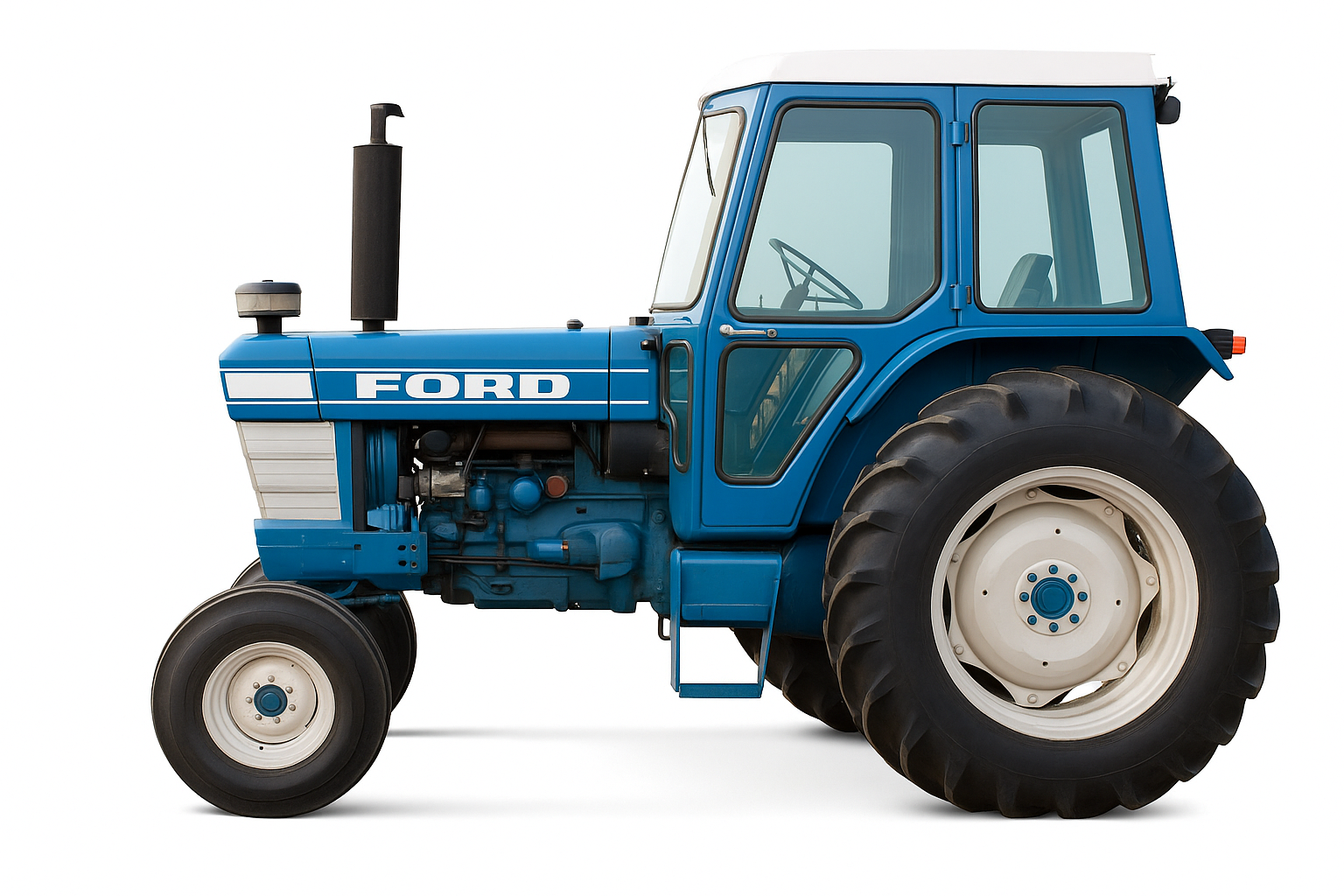

🌍 Ford 6710 Tractor – Full Specifications & Model Overview
The Ford 6710 is a heavy-duty row-crop tractor produced from 1982 to 1987 as part of Ford’s renowned 10 Series. Equipped with a strong 4.4L Ford diesel engine, advanced 16-speed partial power shift transmission, and reliable hydraulics, the 6710 is valued worldwide for farming, field preparation, towing, and utility work.
Its durability and simple mechanical design make it ideal for export markets where maintenance access and long-term reliability are essential.
📌 Overview
| Item | Details |
|---|---|
| Model | Ford 6710 |
| Production Years | 1982–1987 |
| Series | Ford 10 Series |
| Tractor Type | Row-Crop Tractor |
| Manufacturer | Ford |
| Variants | 6710 (row-crop), 6610 (utility) |
| Drive | 2WD / 4WD |
| Steering | Power steering |
| Brakes | Mechanical wet disc |
| Operator Station | Two-post ROPS, optional cab |
🔧 Engine
| Item | Details |
|---|---|
| Engine Model | Ford 4.4L Diesel |
| Engine Type | 4-cyl, liquid-cooled diesel |
| Displacement | 4.4 liters |
| Gross Engine Power | 82 hp (61.1 kW) |
| Rated Engine Power | 78.5 hp (58.5 kW) |
| PTO (claimed) | 72 hp (53.7 kW) |
| Fuel Capacity | 28 gal (106 L) |
| Battery | 12V, 128 AH |
| Charging System | 32-amp alternator |
⚙️ Transmission
| Transmission Type | Speeds | Notes |
|---|---|---|
| Partial Power Shift | 16-speed | Smooth shifting under load |
| Synchromesh Partial Power Shift | 16-speed | Enhanced operator control |
🛢 Hydraulics
| Item | Details |
|---|---|
| Hydraulic Type | Open Center |
| Hydraulic Capacity | 15 gal (56.8 L) |
| Valves | 1 |
| Pump Flow | 9.7 gpm (36.7 L/min) |
| Steering Flow | 3.6 gpm (13.6 L/min) |
| Steering Pressure | 2500 psi (172 bar) |
🔩 3-Point Hitch & PTO
| Item | Details |
|---|---|
| Rear Hitch Type | Category II |
| Rear Lift Capacity (24″) | 4,137 lbs (1,876 kg) |
| Rear PTO | Independent |
| PTO Speeds | 540 / optional 540–1000 |
📏 Dimensions & Tires
| Item | Details |
|---|---|
| Wheelbase | 101.6 in (258 cm) |
| Weight | 6,344 lbs (2,877 kg) |
| Front Tires | 7.50-16 |
| Rear Tires | 15.5-38 |
🧪 Performance Test Results
| Item | Tested Value |
|---|---|
| Drawbar Power | 61.37 hp (45.8 kW) |
| PTO Power | 72.30 hp (53.9 kW) |
These test results confirm the Ford 6710’s strong performance in field operations and PTO-driven work.
🧰 Attachments
| Attachment | Notes |
|---|---|
| Front-End Loader | Suitable for lifting, material handling, and farm operations |
| PTO Implements | Compatible with a wide range of implements (tillers, mowers, sprayers, etc.) |
🆔 Serial Number Reference
| Year | Serial Number Start |
|---|---|
| 1982 | C681910 |
| 1983 | C695880 |
| 1984 | C713459 |
| 1985 | C737800 |
| 1986 | C754100 / BA80100 |
| 1987 | C768000 / BB06622 |
Serial plates are located inside the engine compartment and on the right front of the transmission.
