Kubota FT23 – Complete Specifications & Overview
The Kubota FT23 is a versatile compact utility tractor produced from 2012 to 2015 as part of the FT Granforce Series.
Designed for small farms, orchards, vineyards, and light to medium agricultural work, the FT23 provides a balance of compact size, efficient power, and advanced transmission options.
Powered by Kubota’s trusted 1.5L 3-cylinder diesel engine, the FT23 delivers 22.7 horsepower, making it suitable for rotary tillers, sprayers, mowers, and cultivation implements. It is available in both wheeled (FT23) and half-track (FT23-PC) versions, providing enhanced traction for wet or uneven terrain.
Overview
| Item | Details |
|---|---|
| Model | Kubota FT23 |
| Years | 2012–2015 |
| Series | FT Granforce |
| Tractor Type | Compact Utility Tractor |
| Engine Power | 22.7 HP (16.9 kW) |
| Variants | FT23 (wheeled) / FT23-PC (half-track) |
| Drive | 4WD |
| ROPS | Two-post folding ROPS (Cab optional) |
Engine
| Item | Details |
|---|---|
| Engine Model | Kubota D1503 |
| Type | 1.5L, 3-cylinder diesel |
| Displacement | 1.5 L (approx. 1498 cc) |
| Cooling | Liquid-cooled |
| Rated Output | 22.7 HP (16.9 kW) |
| Fuel Tank Capacity | 7.9 gal (29.9 L) |
| Notes | High torque engine suitable for orchard and hilly-field tasks |
The Kubota D1503 engine is known for its clean combustion, low vibration, and long service life—ideal for continuous agricultural operations.
Transmission
| Transmission Type | Details |
|---|---|
| 12-speed gear | Standard mechanical gearbox |
| 48-speed power shift | Smooth shifting without clutch use; ideal for precision work |
Additional Mechanical Features
| Item | Details |
|---|---|
| Drive | Four-wheel drive |
| Steering | Power steering |
| Brakes | Wet disc brakes |
PTO (Power Take-Off)
| PTO Speed @ 2500 RPM | Output |
|---|---|
| 505 rpm | Standard low-speed PTO |
| 731 rpm | Medium PTO |
| 1136 rpm | High-speed PTO |
| -615 rpm | Reverse PTO |
| Item | Details |
|---|---|
| Rear PTO Type | 540 rpm (1.375″ shaft) |
The multi-speed PTO system gives the FT23 flexibility for matching rotary tillers, sprayers, mowing units, or fertilizer spreaders.
Three-Point Hitch
| Item | Details |
|---|---|
| Hitch Type | Category I |
Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase | 59.1 in (150 cm) |
| Operating Weight | 2006–2326 lbs (varies by variant) |
| Front Tires | 6–14 |
| Rear Tires | 9.5–22 |
The relatively long wheelbase and compact design offer stability on slopes, tight orchards, greenhouses, and narrow field paths.
Electrical System
| Item | Details |
|---|---|
| Ground | Negative |
| Battery | 12V |

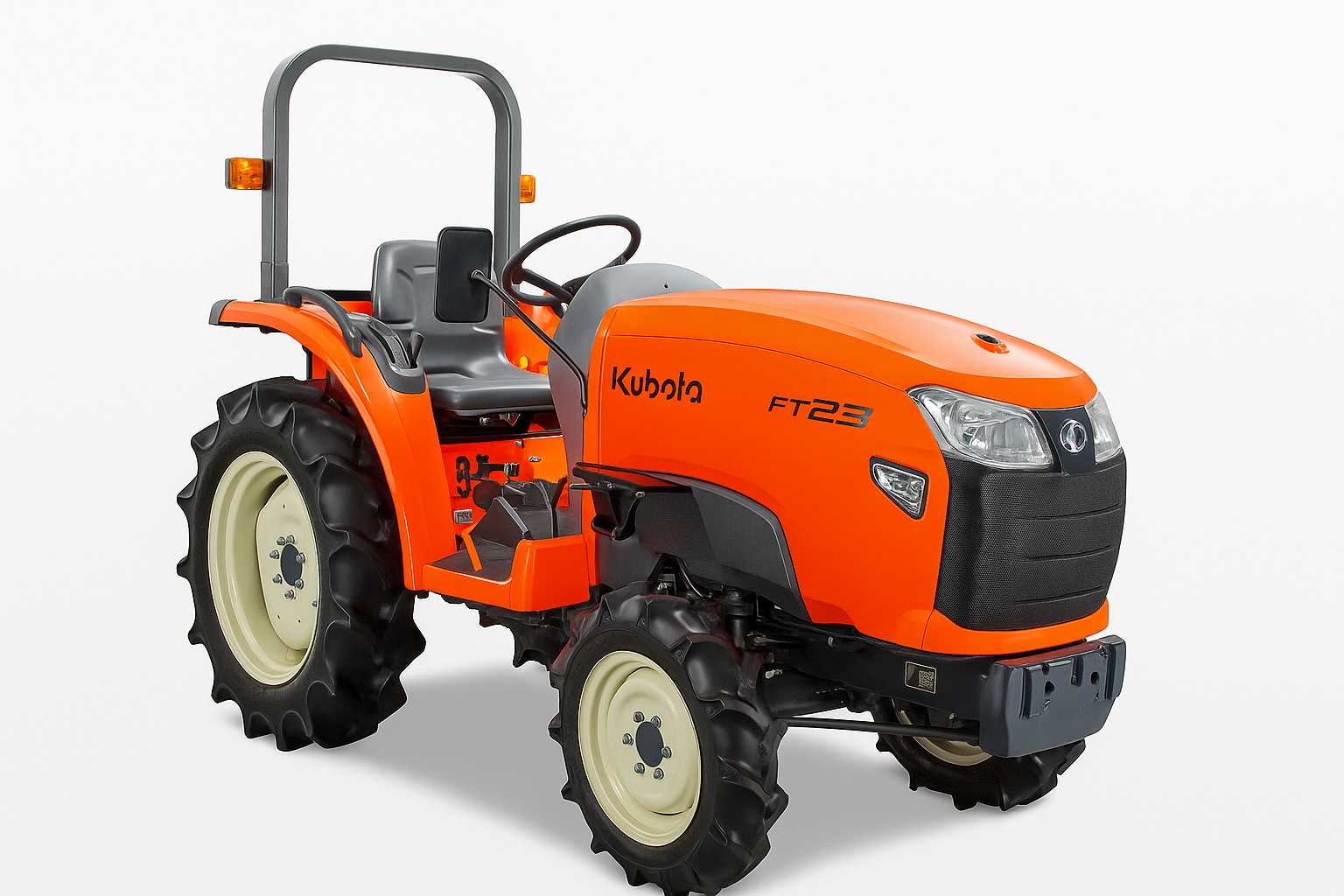

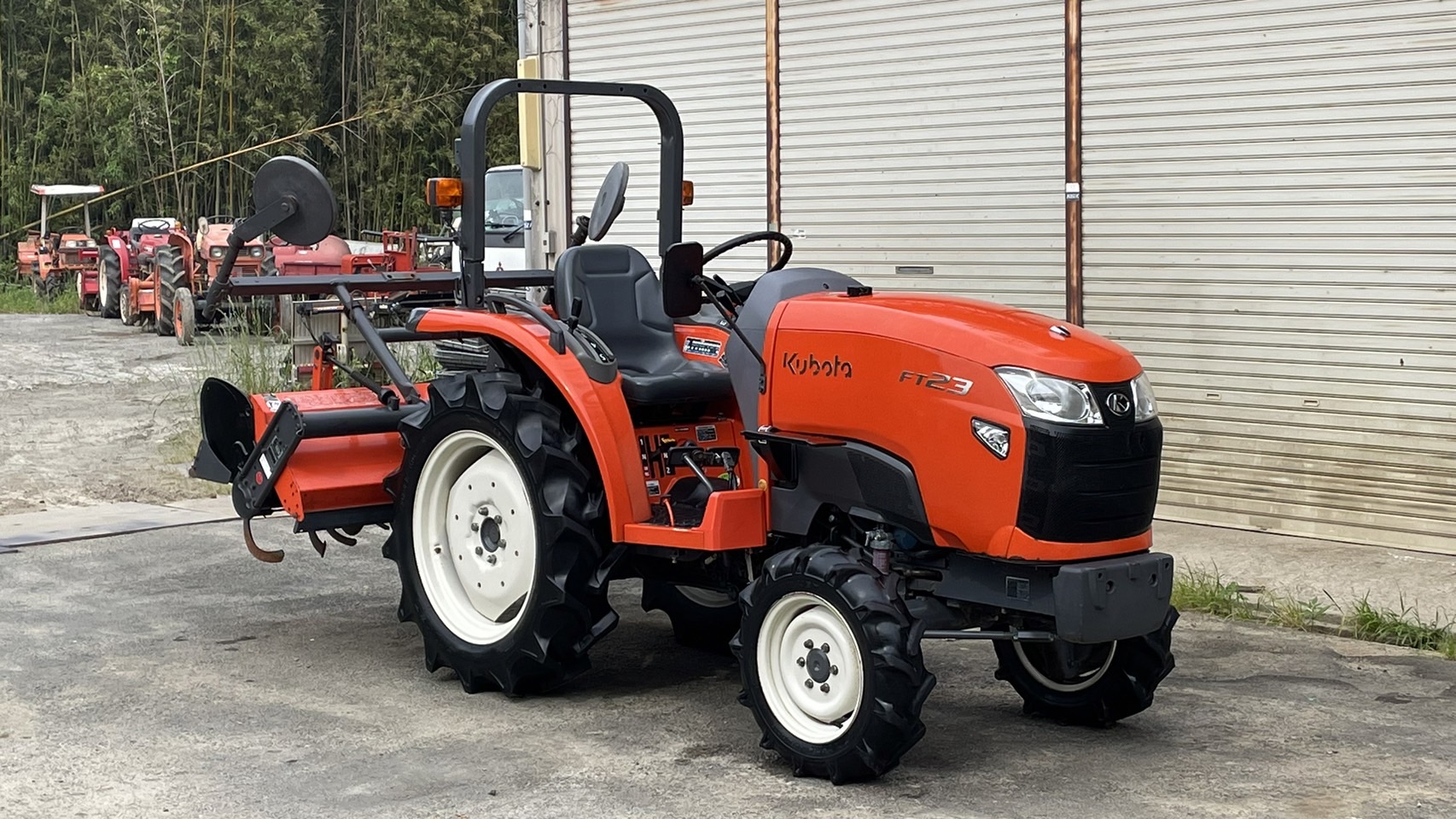

Photos
Typical Applications
The Kubota FT23 is widely used in:
-
Orchard and vineyard cultivation
-
Vegetable farming
-
Greenhouse operations
-
Rotary tilling and soil preparation
-
Spraying, fertilizing, and mowing
-
Wet or uneven terrain (especially FT23-PC half-track)
Its combination of power, compact size, and multi-speed PTO makes it a strong choice for farmers needing flexibility across multiple tasks.
