Kubota BX2680 – Complete Specifications & Overview
The Kubota BX2680 is a compact utility tractor introduced in 2017 as part of Kubota’s BX80 Series. Known for its reliability, maneuverability, and versatile attachment options, the BX2680 is a popular choice among homeowners, landscapers, and small farm operators.
Powered by Kubota’s efficient 1.0L 3-cylinder diesel engine, the BX2680 offers 24.8 horsepower, hydrostatic transmission, strong lift capacity, and smooth operation even in tight spaces. It supports a wide range of implements, making it a true multi-purpose machine for year-round work.
Overview
| Item | Details |
|---|---|
| Model | Kubota BX2680 |
| Years | 2017 – Present |
| Series | BX80 Series |
| Tractor Type | Compact Utility Tractor |
| Engine Power | 24.8 HP (18.5 kW) |
| PTO Power | 19.5 HP (14.5 kW) |
| Drive | 4WD |
| Steering | Power Steering |
| Brakes | Wet Disc |
| ROPS | Two-post foldable ROPS |
| Original Price (2017) | $13,347 USD |
Engine
| Item | Details |
|---|---|
| Engine Model | Kubota D1005 |
| Type | 1.0L 3-cylinder diesel |
| Displacement | 1.0 L |
| Cooling | Liquid-cooled |
| Fuel Capacity | 6.6 gal (25.0 L) |
| Gross Horsepower | 24.8 HP |
Transmission
| Item | Details |
|---|---|
| Type | Hydrostatic (HST) |
| Gear Range | Infinite, 2-range |
| Drive | 4WD |
| Brakes | Wet Disc |
| Steering | Power Steering |
Hydraulics
| Item | Details |
|---|---|
| Pump Flow | 6.2 gpm (23.5 L/min) |
| Hydraulic Type | Open Center |
Tractor Hitch
| Item | Details |
|---|---|
| Rear Hitch | Category I |
| Lift Capacity @ 24″ | 680 lbs (308 kg) |
PTO (Power Take-Off)
| PTO Location | Type | Speed |
|---|---|---|
| Rear PTO | Independent | 540 rpm |
| Mid PTO | Independent | 2500 rpm |
Dimensions & Tires
| Item | Measurement |
|---|---|
| Wheelbase | 55.1 in (139 cm) |
| Weight | 1521 lbs (689 kg) |
| Front Tires | 18×8.5-10 |
| Rear Tires | 26×12-12 |
Electrical
| Item | Details |
|---|---|
| Ground | Negative |
| Charging System | Alternator |
| Battery Voltage | 12V |
Attachments
The BX2680 supports a wide range of attachments suitable for mowing, landscaping, snow clearing, and material handling.
| Attachment | Details |
|---|---|
| 48″ Mid-Mount Mower | Compact mowing for narrow areas |
| 54″ Mid-Mount Mower | Standard mowing option |
| 60″ Mid-Mount Mower | Wide cut for large lawns |
| Front-End Loader | Ideal for soil, gravel, and utility work |
| Additional Implements | Blades, sweepers, snow blowers, tillers |

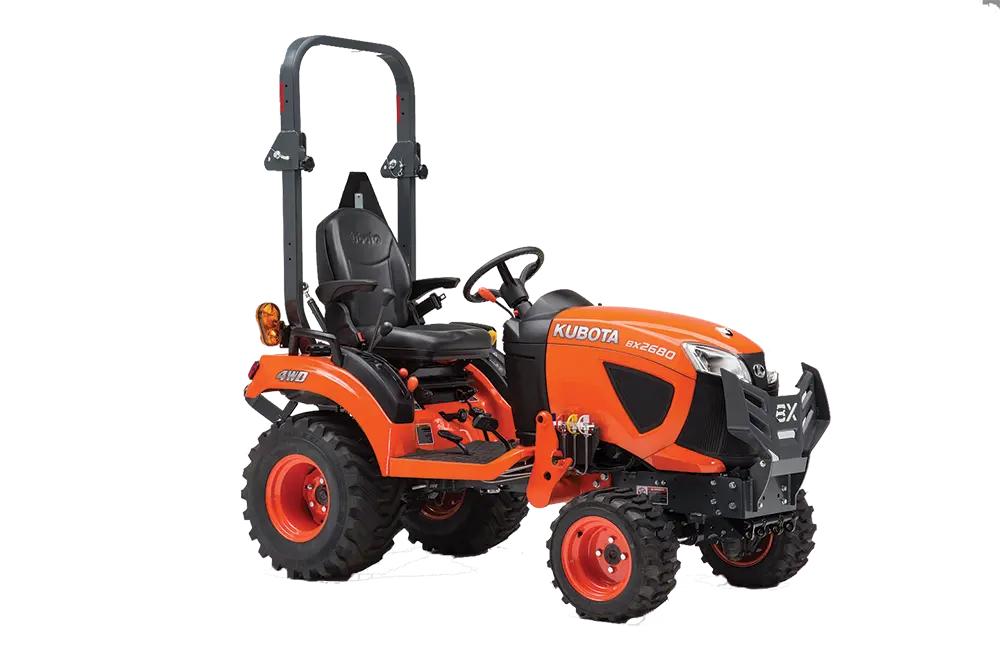

Photos
(Representative photos for reference)
Serial Number Location
| Location | Details |
|---|---|
| Frame | Serial number decal located on the right side of the tractor frame, above the front axle |
