Ford 6600 Tractor Specifications & Complete Model Guide (1975–1981)
The Ford 6600, produced from 1975 to 1981, is one of Ford’s most successful utility tractors. Known for its durability, simple mechanics, and versatile field performance, the 6600 became a favorite among farmers worldwide.
Initially offered as both a utility and row-crop tractor (1975–1977), the row-crop version was later separated into the Ford 6700 series.
The Ford 6600’s combination of reliable diesel engines, strong hydraulics, and widely available attachments makes it an excellent choice in today’s used tractor market.
Below is a complete, easy-to-read breakdown for international buyers.
1. Overview
| Item | Details |
|---|---|
| Model | Ford 6600 |
| Years Produced | 1975–1981 |
| Type | Utility tractor |
| Manufacturer | Ford |
| Original Price (1981) | USD $11,500 |
| Drive Options | 2WD or 4WD |
| Variants | 6600 (utility), 6700 (row-crop) |
| Operator Station | Open station; optional cab with heater/A/C |
2. Engine Specifications
The Ford 6600 features several engine configurations, but the most common and most sought-after is the 4.2L Ford diesel, known for its torque and long service life.
| Specification | Details |
|---|---|
| Available Engines | Ford 4.2L 4-cyl diesel / Ford 4.4L 4-cyl diesel / 4.2L gasoline |
| Fuel Tank Capacity | 20 gal (75.7 L) or 33 gal (124.9 L)* |
| Cooling System | Liquid-cooled |
| Engine (Gross Power) | 75.5 hp (56.3 kW) |
| Engine (Net Power) | 72.5 hp (54.1 kW) |
| PTO Power (claimed) | 70 hp (52.2 kW) |
| Design Note | Strong low-end torque for heavy implements |
* Larger tank available for long-duty operations.
3. Transmission Options
The Ford 6600 offers two gearbox choices:
| Transmission | Description |
|---|---|
| 8-speed gear | Familiar and durable Ford manual transmission |
| 16-speed (two-speed powershift) | Adds high/low range for more control under load |
Additional drivetrain features:
| Feature | Details |
|---|---|
| Brakes | Mechanical wet disc brakes |
| Differential Lock | Rear mechanical |
| Power Steering | Standard |
| Final Drives | Inboard planetary type |
4. Tested Power (Official Performance Tests)
| Category | Tested Output |
|---|---|
| Drawbar Power (tested) | 57.87 hp (43.2 kW) |
| PTO Power (tested) | 70.56 hp (52.6 kW) |
These results show the Ford 6600 meets or exceeds its advertised capability.
5. Hydraulics & Hitch
| Category | Details |
|---|---|
| Hydraulic System Type | Open center |
| Pressure | 2100 psi (144.8 bar) |
| Pump Flow | 9.7 gpm (36.7 L/min) |
| Valves | 1 or 2 |
| Rear Hitch | Category II |
| Control | Top-link draft sensing |
| Rear Lift Capacity | 4,040 lbs (1,832 kg) |
6. PTO (Power Take-Off)
| Specification | Details |
|---|---|
| Rear PTO | Independent |
| PTO Speeds | 540 rpm or 540/1000 rpm (1.375-inch shaft) |
7. Dimensions & Weight
| Item | Measurement |
|---|---|
| Wheelbase | 88 in (223 cm) |
| Weight | 5,475–7,020 lbs |
| Front Tires | 7.50–16 |
| Rear Tires | 18.4–30 |
These dimensions place the Ford 6600 firmly in the mid-size utility tractor segment.
8. Serial Number Locations
Serial number is stamped on the transmission housing, front-right corner.
| Year | Serial Number Start |
|---|---|
| 1975 | C450700 |
| 1976 | C490300 |
| 1977 | C527300 |
| 1978 | C560500 |
| 1979 | C595800 |
| 1980 | C635700 |
| 1981 | C660700 |
9. Attachments
The Ford 6600 supports a wide range of loader and field attachments.
| Attachment | Usage |
|---|---|
| Front-End Loader | Material handling, lifting, transport |
| Cultivators | Row-crop cultivation |
| Plows / Harrows | Tillage and seedbed prep |
| Mowers & Slashers | Pasture management |
| Balers | Hay and straw operations |

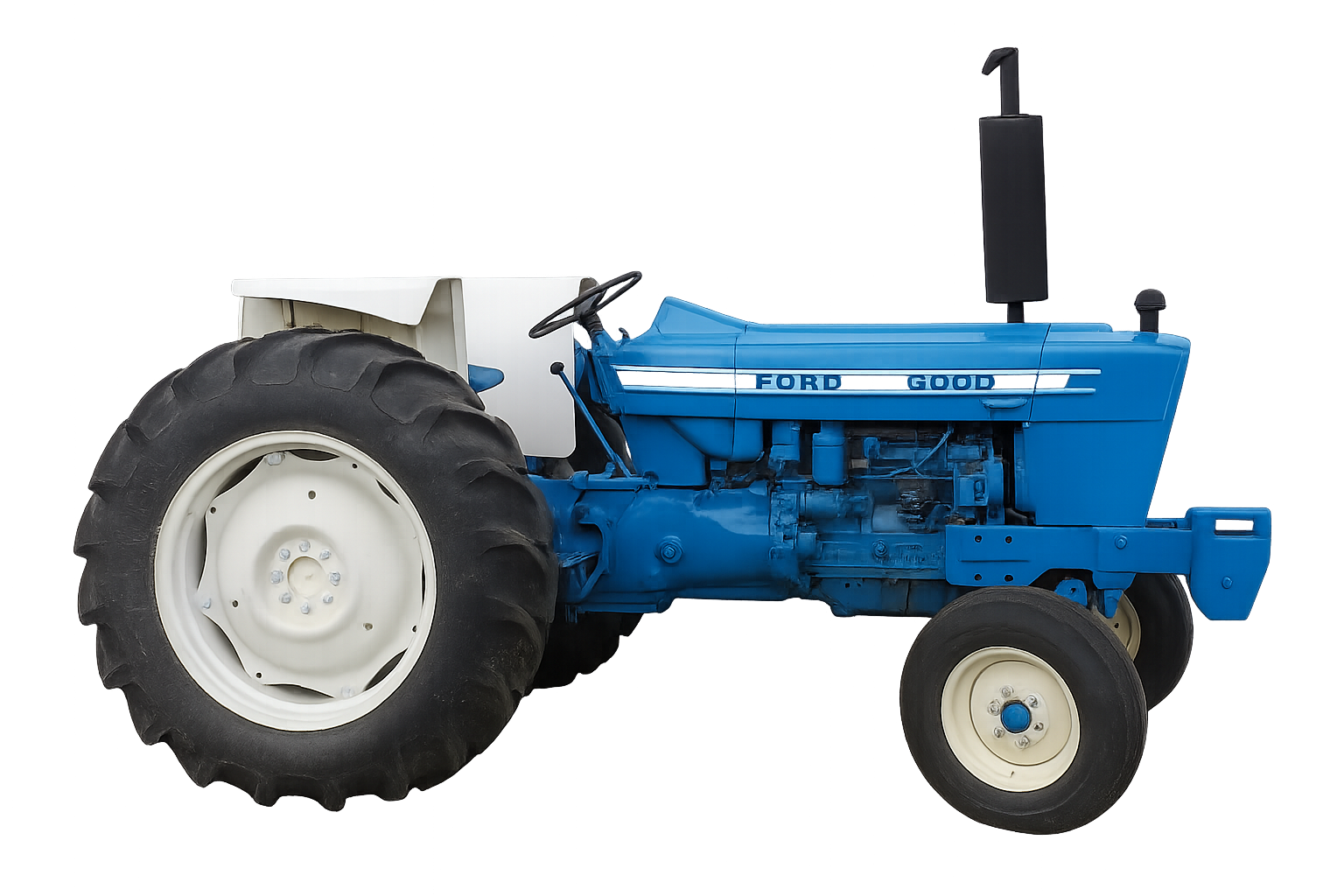

10. Photos
Summary
The Ford 6600 remains one of Ford’s most respected utility tractors thanks to:
-
Strong 4.2L / 4.4L diesel engines
-
Durable 8-speed and 16-speed transmissions
-
Proven 70+ horsepower PTO performance
-
Versatility across loader, tillage, mowing, and transport tasks
-
Excellent parts availability and simple mechanical design
Its reputation for reliability makes it a top choice among international buyers seeking a long-lasting, easy-to-maintain utility tractor.
